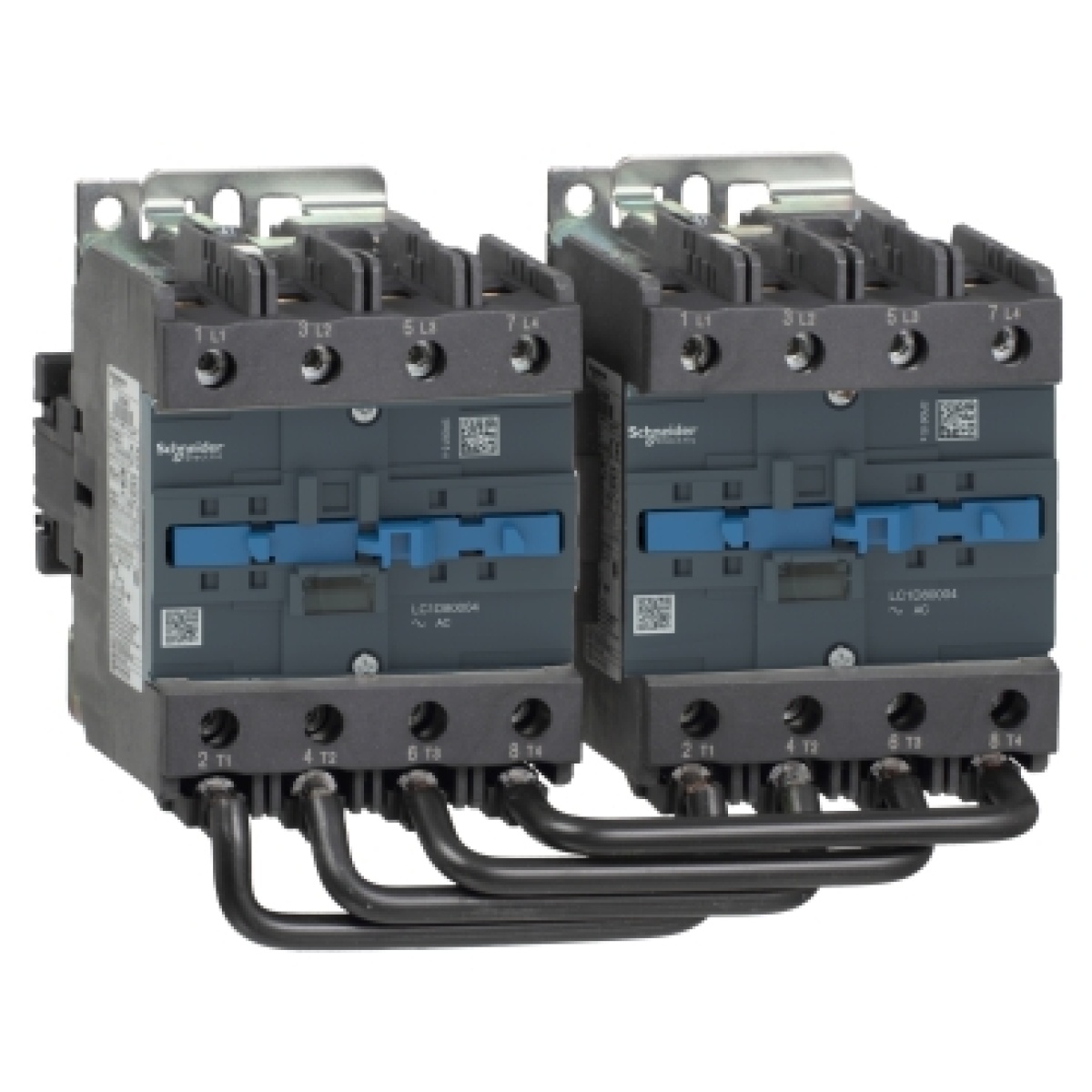

Inversor Tesys D - 4P4 NA - AC-1 - 440 V 125 A - 220 V CA bobina
Contactors, Motor Circuit Breakers and Accessories
Inversor Tesys D - 4P4 NA - AC-1 - 440 V 125 A - 220 V CA bobina
Manufacturer Ref:
LC2D80004M5
Nortécnica Ref:
EAN:
3389110086645
Description
Technical Information
Attributes
Width
207
Function
Changeover contactor
Height
127
Depth
158
Rated operation power at AC-3, 400 V
-
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
80
Rated operation current Ie at AC-1, 400 V
125
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
No
Rated control supply voltage AC 50 Hz
220
220
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
-
-
Operating voltage DC
-
-
Voltage type for actuating
AC
Degree of protection NEMA
Other
Rated operation power NEMA
-
Brands
Schneider
