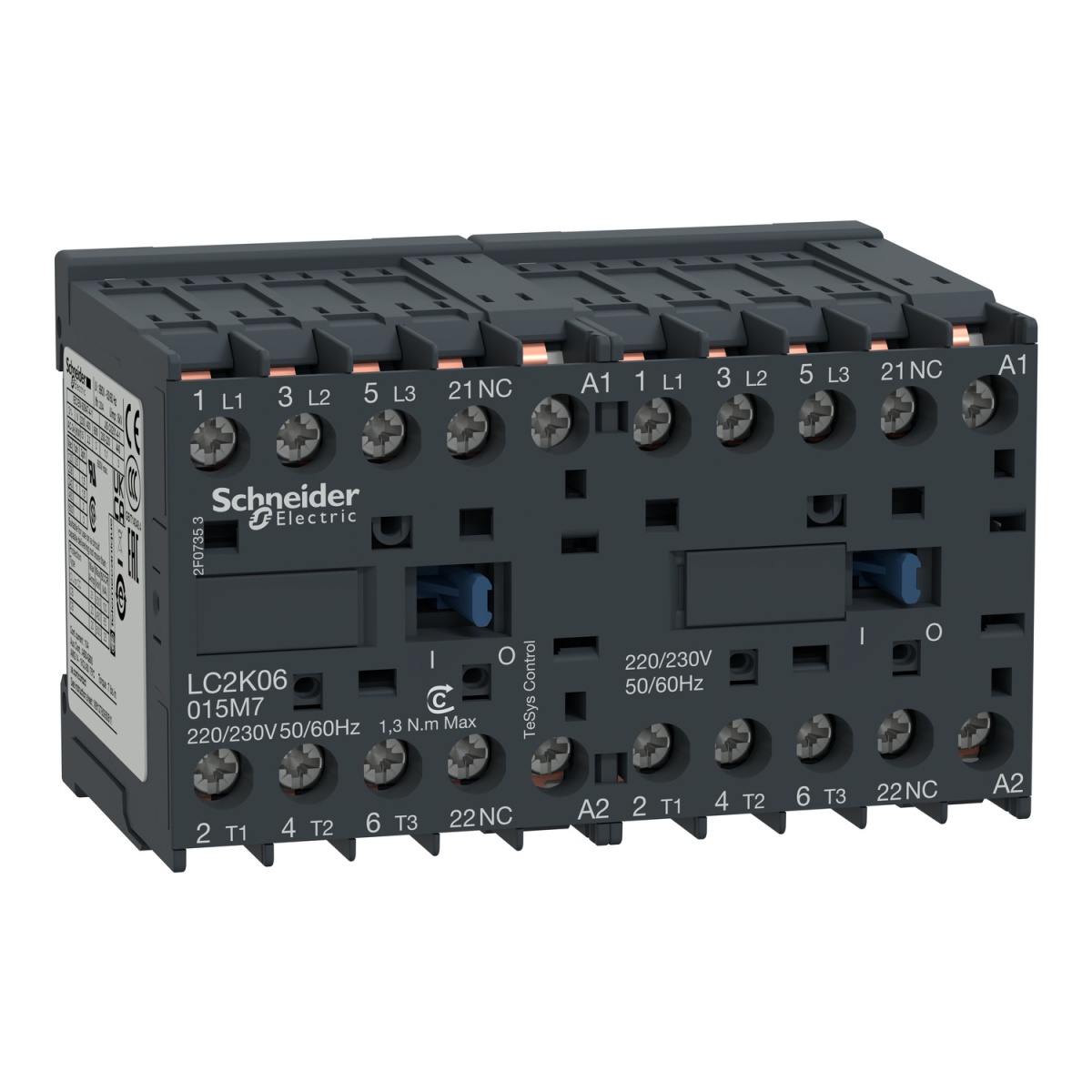

Inversor Tesys K - 3P3 NA -AC-3- 440 V 6 A - 220...230 V bobina CA
Contactors, Motor Circuit Breakers and Accessories
Inversor Tesys K - 3P3 NA -AC-3- 440 V 6 A - 220...230 V bobina CA
Manufacturer Ref:
LC2K06015M7
Nortécnica Ref:
52LC2K06015M7
EAN:
3389110490947
Description
Technical Information
Attributes
Width
90
Function
Reversing contactor
Height
58
Depth
57
Rated operation power at AC-3, 400 V
2.2
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
6
Rated operation current Ie at AC-1, 400 V
-
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
No
Rated control supply voltage AC 50 Hz
220
230
Rated control supply voltage AC 60 Hz
220
230
Rated control supply voltage DC
-
-
Voltage type operating voltage
AC
Degree of protection IP
IP20
Type of electrical connection of main circuit
PCB connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
440
440
Operating voltage AC 60 Hz
440
440
Operating voltage DC
-
-
Voltage type for actuating
AC
Degree of protection NEMA
Other
Rated operation power NEMA
2.24
Brands
Schneider
Technical Sheet
