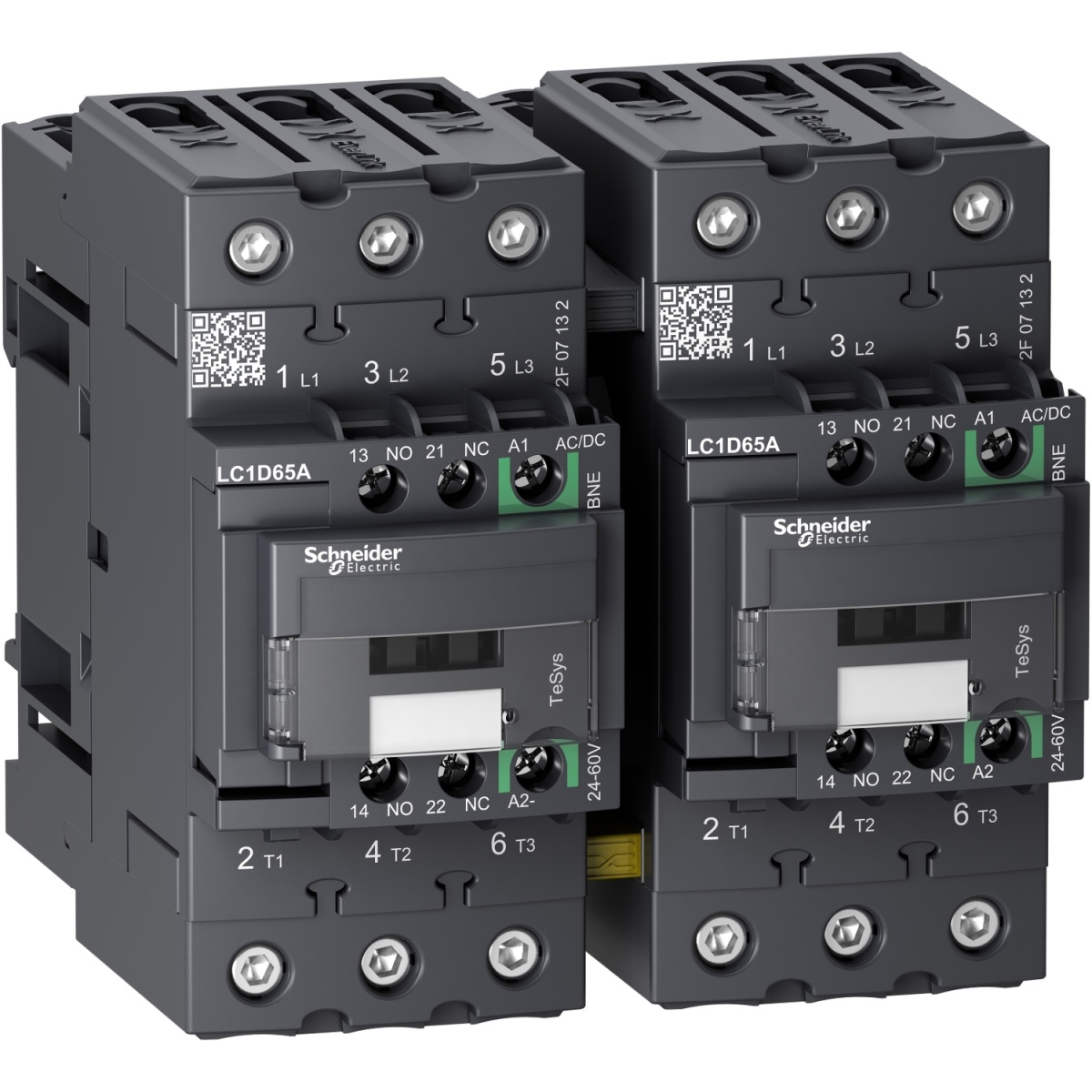

TeSys D reversing contactor - 3P - 440 V - 65 A AC-3 - 24...60 V ACDC coil
Contactors, Motor Circuit Breakers and Accessories
TeSys D reversing contactor - 3P - 440 V - 65 A AC-3 - 24...60 V ACDC coil
Manufacturer Ref:
LC2D65ABNE
Nortécnica Ref:
EAN:
3606480988141
Description
Technical Information
Attributes
Width
119
Function
Reversing contactor
Height
122
Depth
120
Rated operation power at AC-3, 400 V
30
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
65
Rated operation current Ie at AC-1, 400 V
80
Number of auxiliary contacts as change-over contact
-
Suitable for rail mounting
Yes
Rated control supply voltage AC 50 Hz
24
60
Rated control supply voltage AC 60 Hz
24
60
Rated control supply voltage DC
24
60
Voltage type operating voltage
AC/DC
Degree of protection IP
IP20
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Operating voltage DC
440
440
Voltage type for actuating
AC/DC
Degree of protection NEMA
Other
Rated operation power NEMA
29.8
Brands
Schneider
