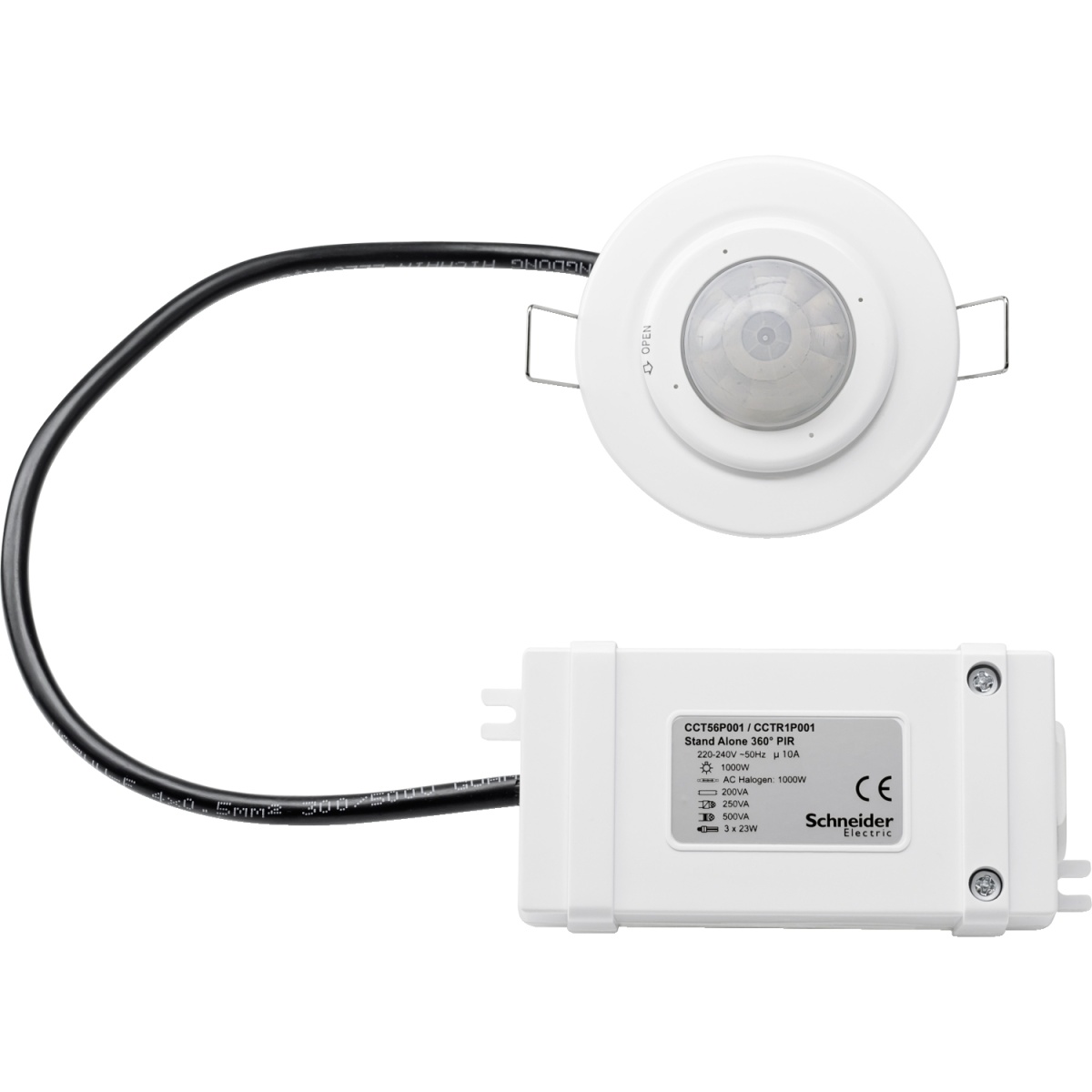

ARGUS standard indoor, false ceiling 360 - carton
Motion and Presence Detectors
ARGUS standard indoor, false ceiling 360 - carton
Manufacturer Ref:
CCT56P001
Nortécnica Ref:
53CCT56P001
EAN:
3606480149955
Description
Technical Information
Attributes
Mounting method
Surface mounted
Colour
White
Width
105.3
Model
Movement sensor
Halogen free
Yes
Height
56.7
Depth
33.5
Connection type
Screwed terminal
Surface protection
Untreated
Creep-under protection
Yes
Voltage type
AC
Switching-on delay
0
Switch-off delay
480
Built-in depth
-
Frequency
50
50
With remote control
No
Diameter
-
Suitable for wall mounting
No
Built-in width
-
Built-in diameter
-
Staircase light controller
Yes
Bridging switch
No
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
4
Max. reach sideways
4
Max. switching power
1000
EF001731
-
-
Max. starting current
10
Material
Plastic
Response value sensitivity adjustable
No
Connection cable length
-
Dim function with dimmer basic element
No
Response value luminosity
5
2000
Suitable for C-load
No
Diameter reach on floor
8
Remote operation
No
HVAC-control
No
Constant light control
No
Substation input
No
RAL-number similar
9010
With signal unit
No
Control current
-
Teach-function for response value luminosity
No
Networkable
No
Forced switch off
No
Scan angle
360
Built-in length
-
Impact strength
-
With connection cable
No
Nominal voltage
230
230
Degree of protection IP
IP20
With alarm function
No
Transparent
No
Animal zone
No
Surface finishing
Glossy
Detection angle horizontal
0
360
Min. switch-on time
5
Max. duty cycle
8
Response value luminosity adjustable
Yes
Optimum mounting height
2.5
Pivoting range sensor, horizontal
-
-
Pivoting range sensor, vertical
-
-
Number of switching zones
-
With DALI interface
No
IFTTT support available
No
Forced switch on
No
Min. starting current
-
Min. depth of built-in installation box
-
Max. presence range
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
-
Background monitoring
No
With acoustic sensor
No
EF020270
EV007611
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
Schneider
