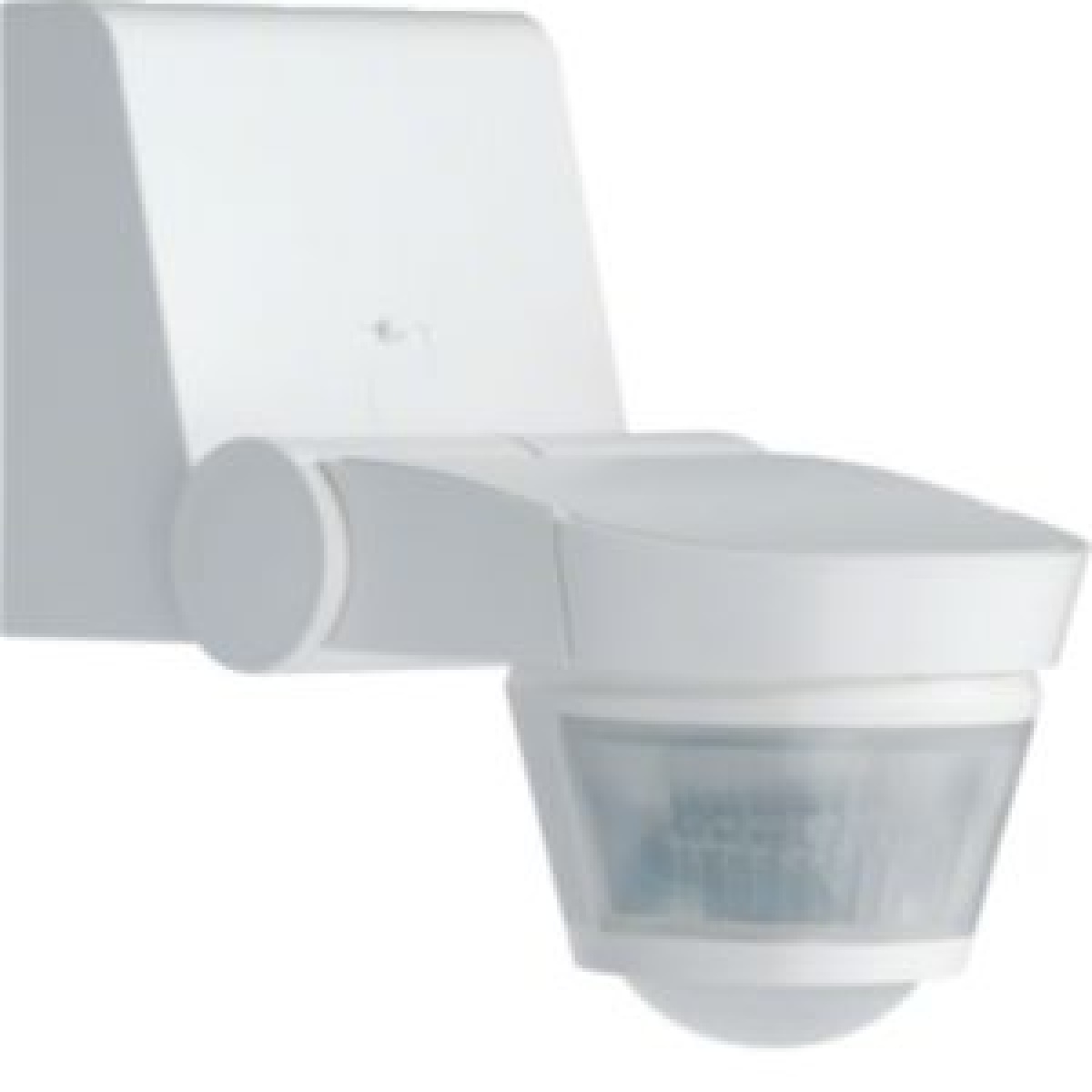

Detector mov Comfort 220360º IP55 br
Motion and Presence Detectors
Detector mov Comfort 220360º IP55 br
Manufacturer Ref:
EE870
Nortécnica Ref:
71EE870
EAN:
3250612258703
Description
Technical Information
Attributes
Mounting method
Surface mounted
Colour
White
Width
91
Model
Movement sensor
Halogen free
Yes
Height
139
Depth
153
Connection type
Other
Surface protection
Untreated
Creep-under protection
No
Voltage type
AC
Switching-on delay
0
Switch-off delay
0
Built-in depth
0
Frequency
50
60
With remote control
Yes
Diameter
0
Suitable for wall mounting
-
Built-in width
0
Built-in diameter
0
Staircase light controller
No
Bridging switch
No
Suitable for wireless transmission
No
Material quality
Thermoplastic
Max. reach frontally
16
Max. reach sideways
10
Max. switching power
2300
EF001731
-
Max. starting current
16
Material
Plastic
Response value sensitivity adjustable
Yes
Connection cable length
-
Dim function with dimmer basic element
No
Response value luminosity
5
1000
Suitable for C-load
Yes
Diameter reach on floor
-
Remote operation
Yes
HVAC-control
No
Constant light control
No
Substation input
Yes
RAL-number similar
9010
With signal unit
No
Control current
-
Teach-function for response value luminosity
Yes
Networkable
Yes
Forced switch off
No
Scan angle
220
Built-in length
0
Impact strength
IK03
With connection cable
No
Nominal voltage
-
Degree of protection IP
IP55
With alarm function
-
Transparent
-
Animal zone
No
Surface finishing
Matt
Detection angle horizontal
360
360
Min. switch-on time
5
Max. duty cycle
30
Response value luminosity adjustable
Yes
Optimum mounting height
4
Pivoting range sensor, horizontal
360
360
Pivoting range sensor, vertical
-
Number of switching zones
1
With DALI interface
No
IFTTT support available
No
Forced switch on
No
Min. starting current
0
Min. depth of built-in installation box
0
Max. presence range
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Max. switching power LED
400
Background monitoring
-
With acoustic sensor
No
EF020270
EV007611
Suitable for ceiling mounting
Yes
Anti-bacterial treatment
No
Brands
Hager Sistemas Eléctricos Modulares SA
