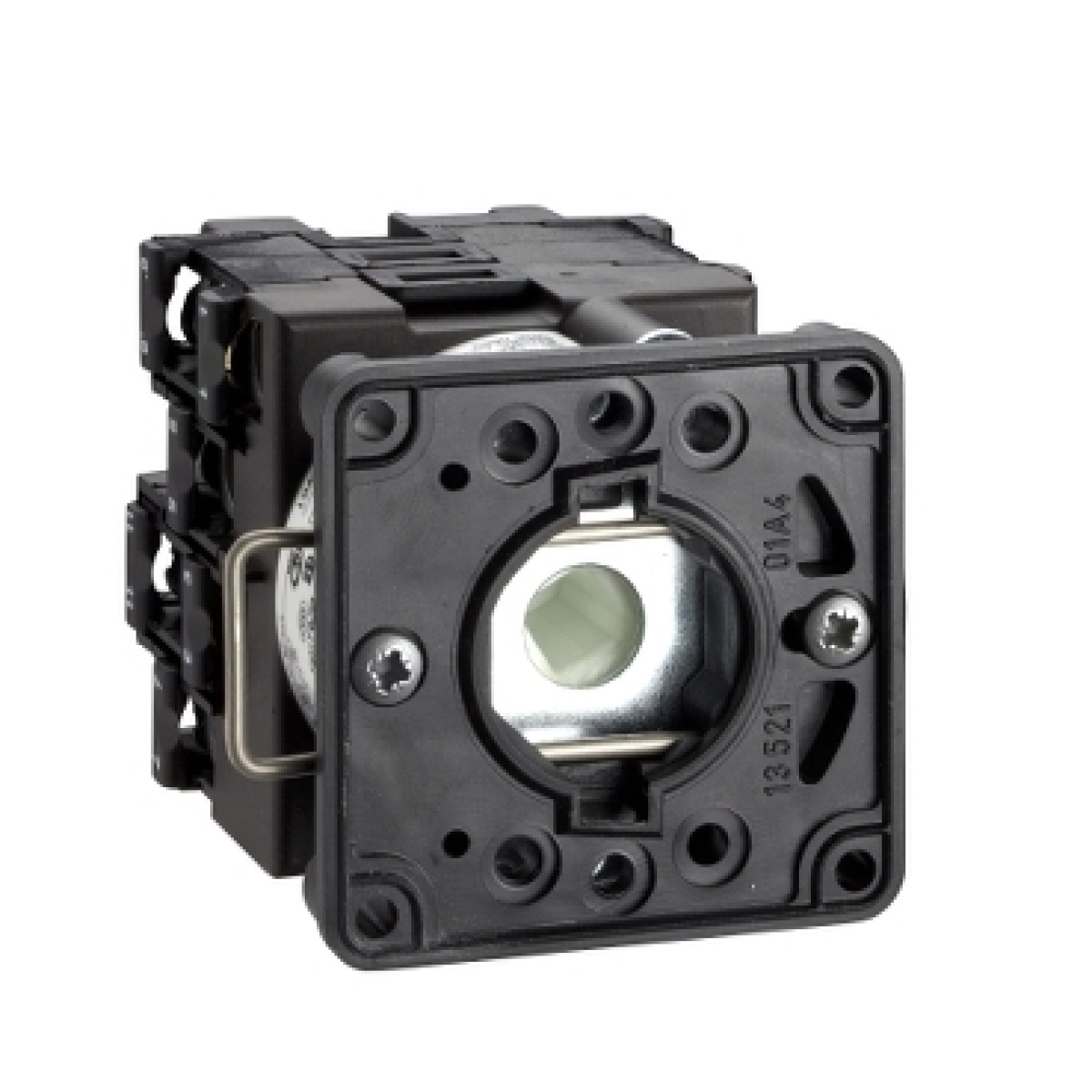

body for stepping switch - 1 pole - 45 - 12 A - for Ø 22 mm
Cutting and Protection Devices
body for stepping switch - 1 pole - 45 - 12 A - for Ø 22 mm
Manufacturer Ref:
K1D004Q
Nortécnica Ref:
EAN:
3389110442380
Description
Technical Information
Attributes
Model
On/off switch
Rated operation power at AC-3, 400 V
1.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
12
Number of poles
1
Rated operation current Ie at AC-3, 400 V
3.3
With zero off position
Yes
Housing material
Plastic
With retraction in 0-position
No
Degree of protection IP, front side
Other
Number of auxiliary contacts as change-over contact
0
Type of electrical connection of main circuit
Screw connection
Type of control element
Other
EF007243
No
EF007246
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Complete device in housing
No
Degree of protection NEMA, front side
-
Brands
Schneider
