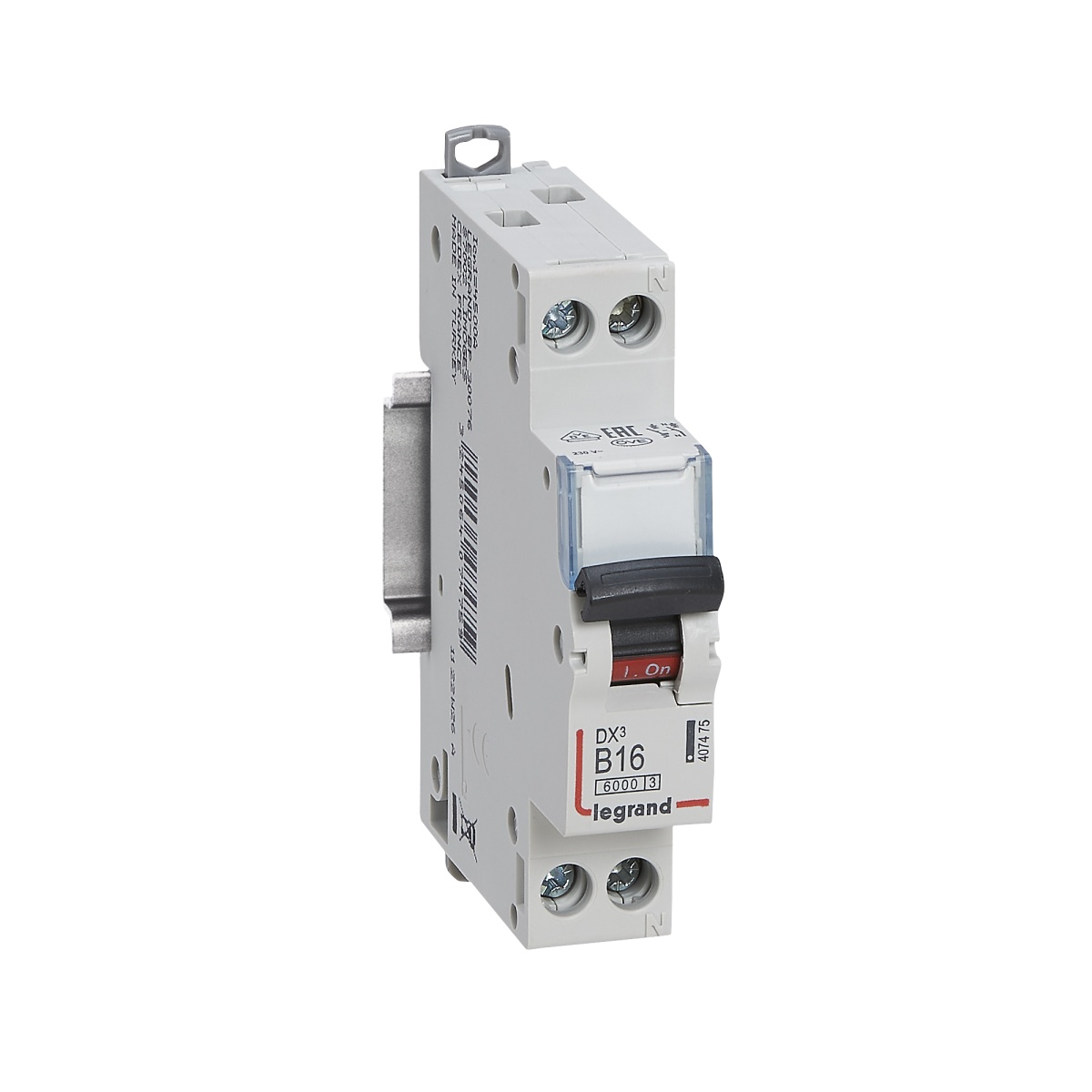

Disjuntor DX³ 6000-10 kA - 1PN - 230 V- 16 A - Curva B- Neutro a direita - 1M
Cutting and Protection Devices
Disjuntor DX³ 6000-10 kA - 1PN - 230 V- 16 A - Curva B- Neutro a direita - 1M
Manufacturer Ref:
407475
Nortécnica Ref:
EAN:
3245064074759
Description
Technical Information
Attributes
Voltage type
AC
Built-in depth
44
Rated current
16
Rated voltage
230
Frequency
50
60
Release characteristic
B
Rated insulation voltage Ui
250
Current limiting class
3
Overvoltage category
-
Pollution degree
2
Largura em número de módulos
1
Explosion-proof
No
Power loss
-
Degree of protection IP
IP20
Number of protected poles
1
Concurrently switching neutral conductor
Yes
Connectable conductor cross section solid-core
0.75
16
Connectable conductor cross section multi-wired
0.75
10
Ambient temperature during operating
-25
70
Flush-mounted installation
Yes
Additional equipment possible
Yes
Number of poles total
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-
Rated impulse withstand voltage Uimp
4
Brands
Legrand
