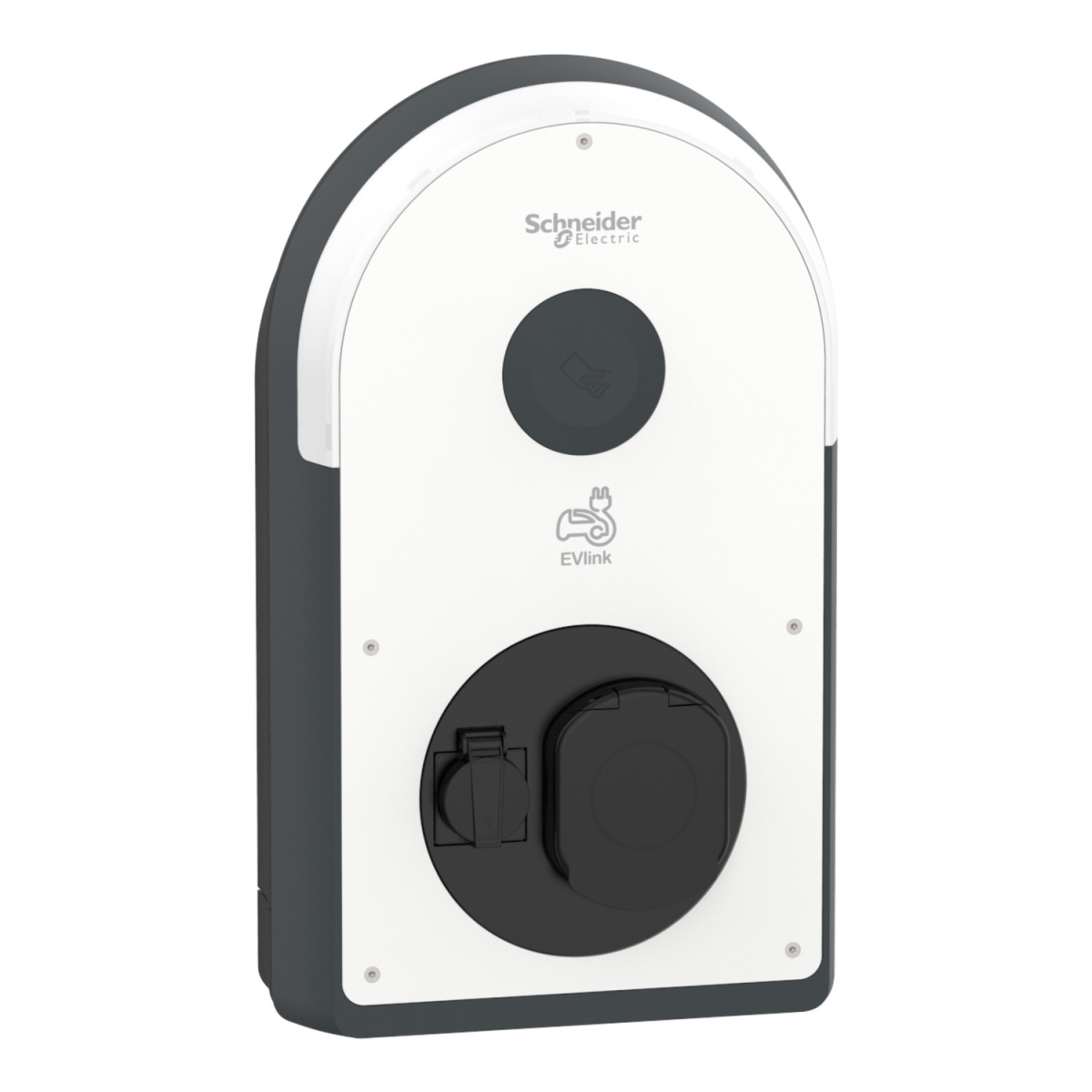

EVlink Pro AC 11kW T2S y TE RCD B EV MNX
Electric Vehicle Chargers
EVlink Pro AC 11kW T2S y TE RCD B EV MNX
Nortécnica Ref:
EAN:
3606482213111
Description
Technical Information
Attributes
Largura
317
Altura
529
Profundidade
158
With display
No
Suitable for wall mounting
Yes
Housing material
Plastic
Suitable for tube mounting
No
Nominal connection power
11
Voltage type supply voltage
AC
Input voltage
380
415
Impact strength
IK10
Frequency
50/60 Hz
Degree of protection IP
IP54
Number of CEE socket outlets IEC 60309
0
Output voltage AC 50 Hz
380
415
Output voltage AC 60 Hz
380
415
Output voltage DC
-
-
Max. output current AC 50 Hz
16
Max. output current AC 60 Hz
16
Max. output current DC
-
Connectable conductor cross section
10
10
Number of charging units
1
With house connection box
No
Number of earth leakage circuit breakers type A
0
Number of earth leakage circuit breakers type B
1
Max. power per charging point
11
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
0
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
1
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of household socket outlets
1
With energy meter
No
With miniature circuit breaker MCB
No
Portable
No
IFTTT support available
No
With built-in RFID card reader
Yes
NFC Near Field Communication
Yes
Networkable via Wi-Fi
No
Length of charging cable
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Mobile communication standard 5G
No
Mobile communication standard 4G LTE
Yes
With surge protection module
No
Network-enabled as a master
No
DC residual current detection
Yes
Contactor welding detection
Yes
With key switch
No
Export of charging logs
Yes
OpenChargePointProtocoll OCPP version
1.6
Plug and charge ISO 15118
No
Network-enabled as an extender
Yes
Charging cable permanently lockable at charging device
No
Networkable via LAN
Yes
With MID compliant energy meter
No
Static load management integrated
No
Suitable for dynamic load management
Yes
Backend included
No
Operation and configuration by app
Yes
Installation side connection model
3-phase
Suitable for floor mounting
Yes
Compliant with calibration law
No
Brands
Schneider Electric Portugal
