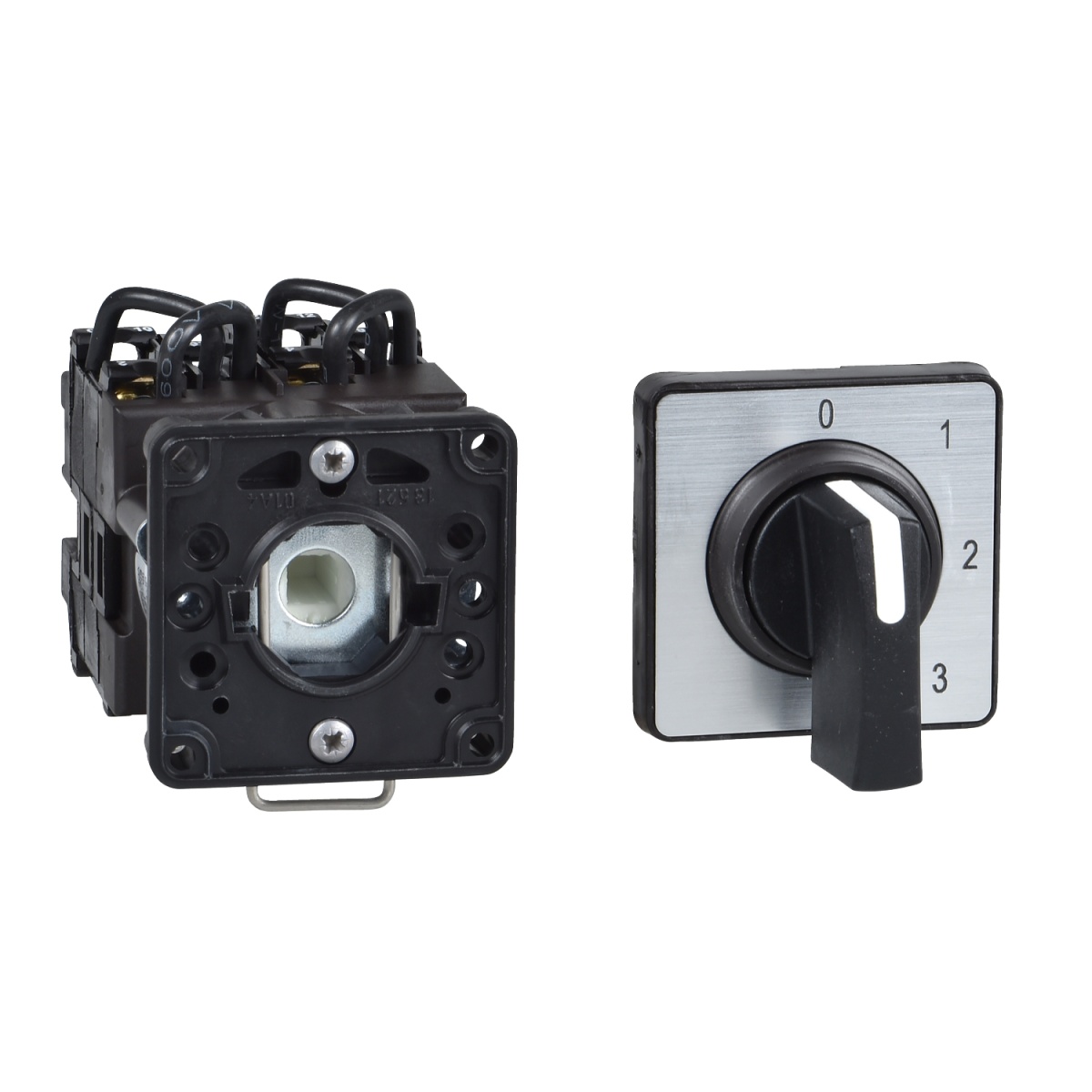

inversor de came - 1 pólo - 90 - 12 A - para Ø 22 mm
Cutting and Protection Devices
inversor de came - 1 pólo - 90 - 12 A - para Ø 22 mm
Nortécnica Ref:
EAN:
3389110978605
Description
Technical Information
Attributes
Model
Reverser
Rated operation power at AC-3, 400 V
1.5
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
12
Número de polos
1
Rated operation current Ie at AC-3, 400 V
3.3
With zero off position
No
Housing material
Plastic
With retraction in 0-position
No
Degree of protection IP front side
IP65/IP67
Number of auxiliary contacts as change-over contact
0
Type of electrical connection of main circuit
Screw connection
Type of control element
Long rotary handle
Suitable for distribution board installation
No
Suitable for intermediate mounting
Yes
Complete device in housing
Yes
Degree of protection NEMA, front side
-
Suitable for front mounting
Yes
Suitable for floor mounting
No
Brands
Schneider Electric Portugal
