SIPLUS S7-300 SM 331 2AI HART based on 6ES7331-7TB00-0AB0 with conformal coating, -25…+70 °C, SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. As many as 12 IO modules can be inserted into each station. The standardized setup of all modules considerably simplifies logistics and stocking of spare parts. The SIPLUS extreme variants are specially designed for harsh ambient conditions. To ensure that biologically, chemically and physically active substances do not negatively impact your automation system.
Programmable Logic Controllers and Dialogue Terminals

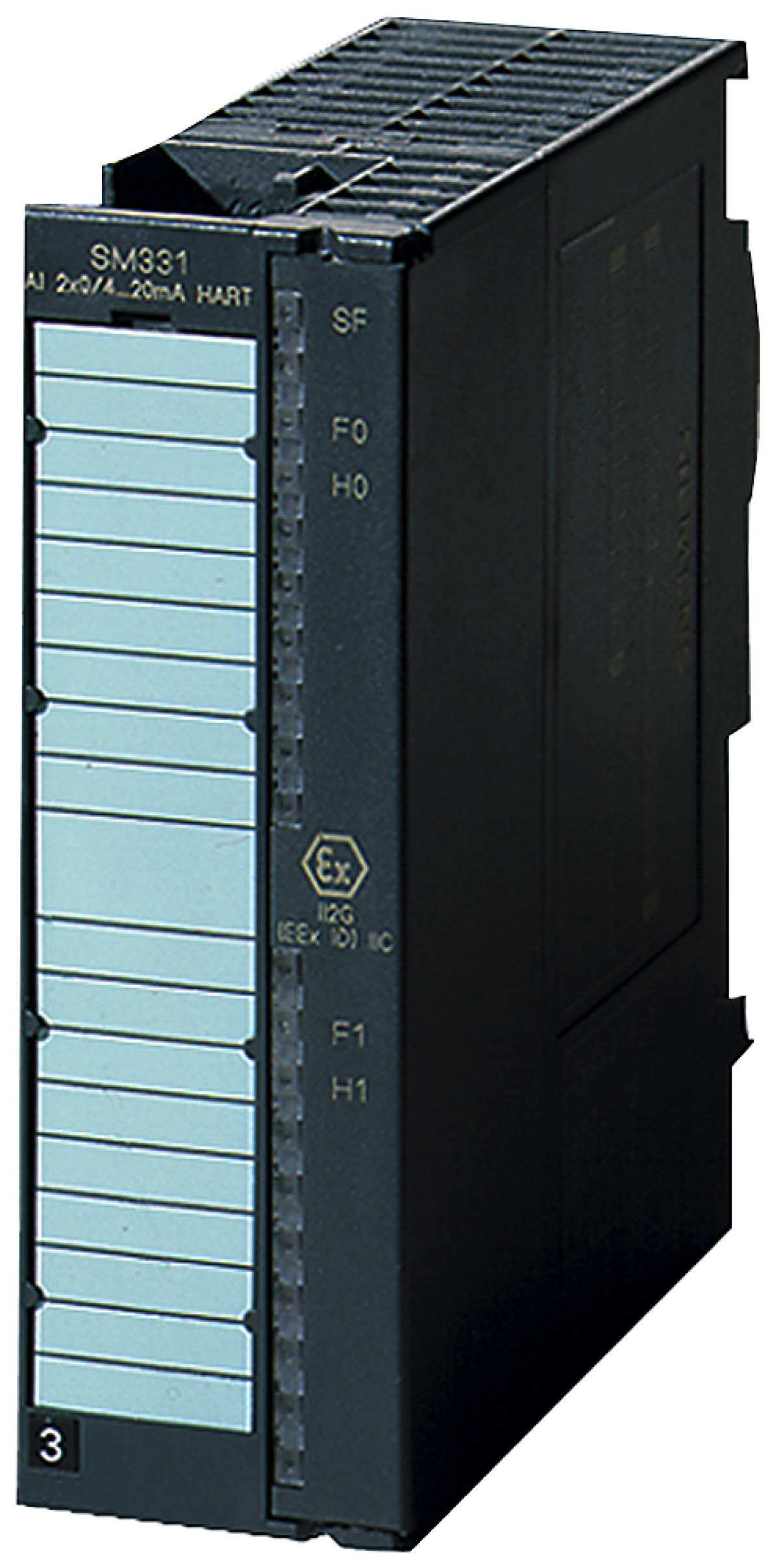

SIPLUS ET 200M SM 331, AI 2x04 ... 20 mA HART -25 ... 70 C with conformal ...
Nortécnica Ref:
EAN:
4042948497111
Description
Technical Information
Attributes
Width
40
Height
125
Depth
120
Suitable for safety functions
No
Number of analogue inputs
2
Number of analogue outputs
0
Voltage type supply voltage
DC
Supporting protocol for LON
No
Número de interfaces industriais HW Ethernet industrial
0
Número de interfaces HW RS-232
0
Número de interfaces HW RS-422
0
Número de interfaces HW RS-485
0
Número de interfaces HW de série TTY
0
Número de interfaces HW USB
0
Número de interfaces HW paralelas
0
Número de interfaces HW outras
0
Supporting protocol for TCPIP
No
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Input, current
Yes
Input, voltage
No
Input, resistor
No
Input, resistance thermometer
No
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
-
Output, voltage
-
Output signal configurable
-
Resolution of the analogue inputs
16
Resolution of the analogue outputs
-
Type of electric connection
Screw-/spring clamp connection
Suitable for rail mounting
Yes
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
ATEX dust-ex-protection, Cat. 2D
Fieldbus connection over separate bus coupler possible
Yes
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
Yes
Degree of protection IP
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Número de interfaces PROFINET
0
Número de interfaces HW sem fio
0
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 138491
-
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
-
Analogue inputs configurable
Yes
Analogue outputs configurable
-
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
SIL according to IEC 61508
-
Degree of protection NEMA
-
Brands
SIEMENS
Descrição Longa
SIPLUS S7-300 SM 331 2AI HART based on 6ES7331-7TB00-0AB0 with conformal coating, -25…+70 °C, SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. As many as 12 IO modules can be inserted into each station. The standardized setup of all modules considerably simplifies logistics and stocking of spare parts. The SIPLUS extreme variants are specially designed for harsh ambient conditions. To ensure that biologically, chemically and physically active substances do not negatively impact your automation system.
