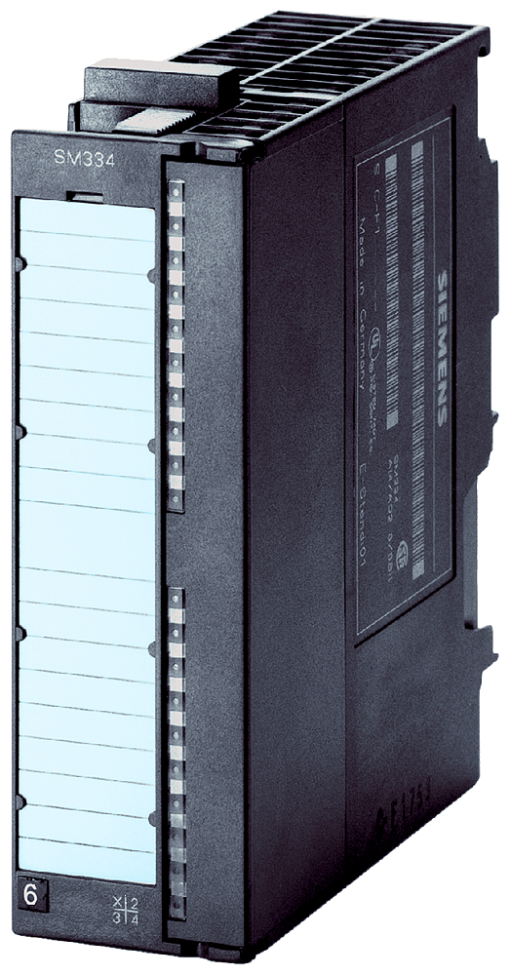

SIPLUS S7-300 SM 334 4AI 2AQ based on 6ES7334-0KE00-0AB0 with conformal coating, -25…+70 °C, analog module isolated, 4 AI/2 AQ, 12 bit, 0-10 V for Pt100 (climatic range -120-155 degrees) and 10 kOhm measuring range, 1x 20-pole Just like the CPU, the analog input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably recorded.
Programmable Logic Controllers and Dialogue Terminals
SIPLUS S7-300 SM 334, AI 4AQ 2x12 bit -25 ... 70 C with conformal coating ...
Nortécnica Ref:
EAN:
4042948497135
Description
Technical Information
Attributes
Width
40
Height
125
Depth
117
Suitable for safety functions
No
Number of analogue inputs
4
Number of analogue outputs
2
Input, current
No
Input, voltage
Yes
Input, resistor
Yes
Input, resistance thermometer
Yes
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
No
Output, voltage
Yes
Output signal configurable
Yes
Resolution of the analogue inputs
12
Resolution of the analogue outputs
12
Type of electric connection
Screw-/spring clamp connection
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 13849-1
-
Analogue inputs configurable
Yes
Analogue outputs configurable
Yes
SIL according to IEC 61508
-
Brands
SIEMENS
Long Description
SIPLUS S7-300 SM 334 4AI 2AQ based on 6ES7334-0KE00-0AB0 with conformal coating, -25…+70 °C, analog module isolated, 4 AI/2 AQ, 12 bit, 0-10 V for Pt100 (climatic range -120-155 degrees) and 10 kOhm measuring range, 1x 20-pole Just like the CPU, the analog input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably recorded.
