LY16-4 is an insulated connecting strip used on 3-pole AF(C)(S)09..16 contactors: • To obtain a star point (3 parallel-connected poles) • To connect 2 poles (LY16-4 includes secable strips) or 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue • To connect 2 or 3 poles in series and thus increase the DC voltage controlled by the poles: LY16-4 includes secable strips.
Variação de Velocidade e Arranque Motor

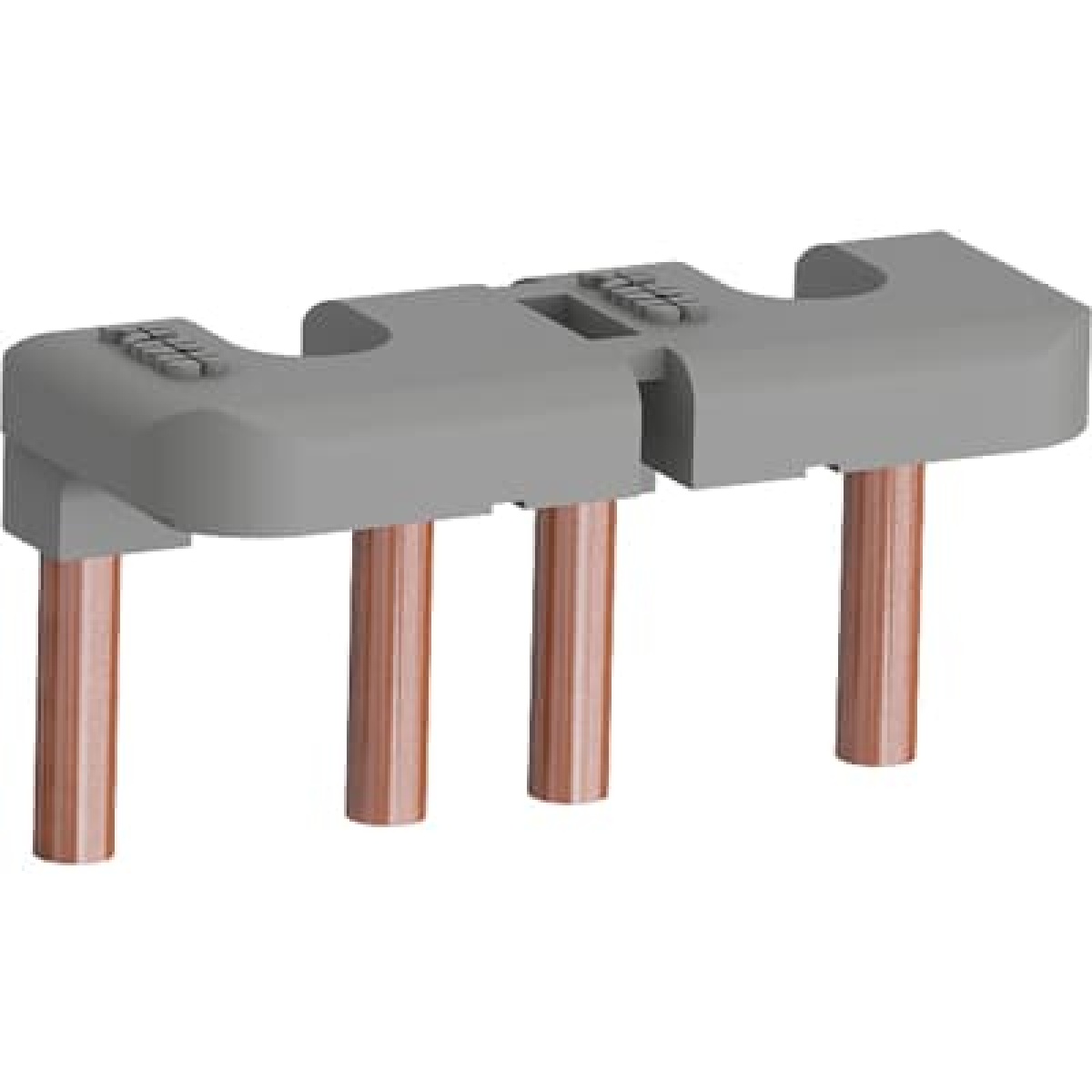

LY16-4 Connecting Strip
Ref Nortécnica:
EAN:
3471523130845
Descrição
Informações Técnicas
Atributos
Tipo de acessóriopeça de reposição
Ponte de conexão
Acessório
Sim
Peça de substituição
Não
Marcas
ABB
Descrição Longa
LY16-4 is an insulated connecting strip used on 3-pole AF(C)(S)09..16 contactors:
• To obtain a star point (3 parallel-connected poles)
• To connect 2 poles (LY16-4 includes secable strips) or 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue
• To connect 2 or 3 poles in series and thus increase the DC voltage controlled by the poles: LY16-4 includes secable strips.
