The softstarter PSTX570-600-70 has a rated maximum operational current of 570 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30...1250 A inline connection or 52...2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors.
Variação de Velocidade e Arranque Motor

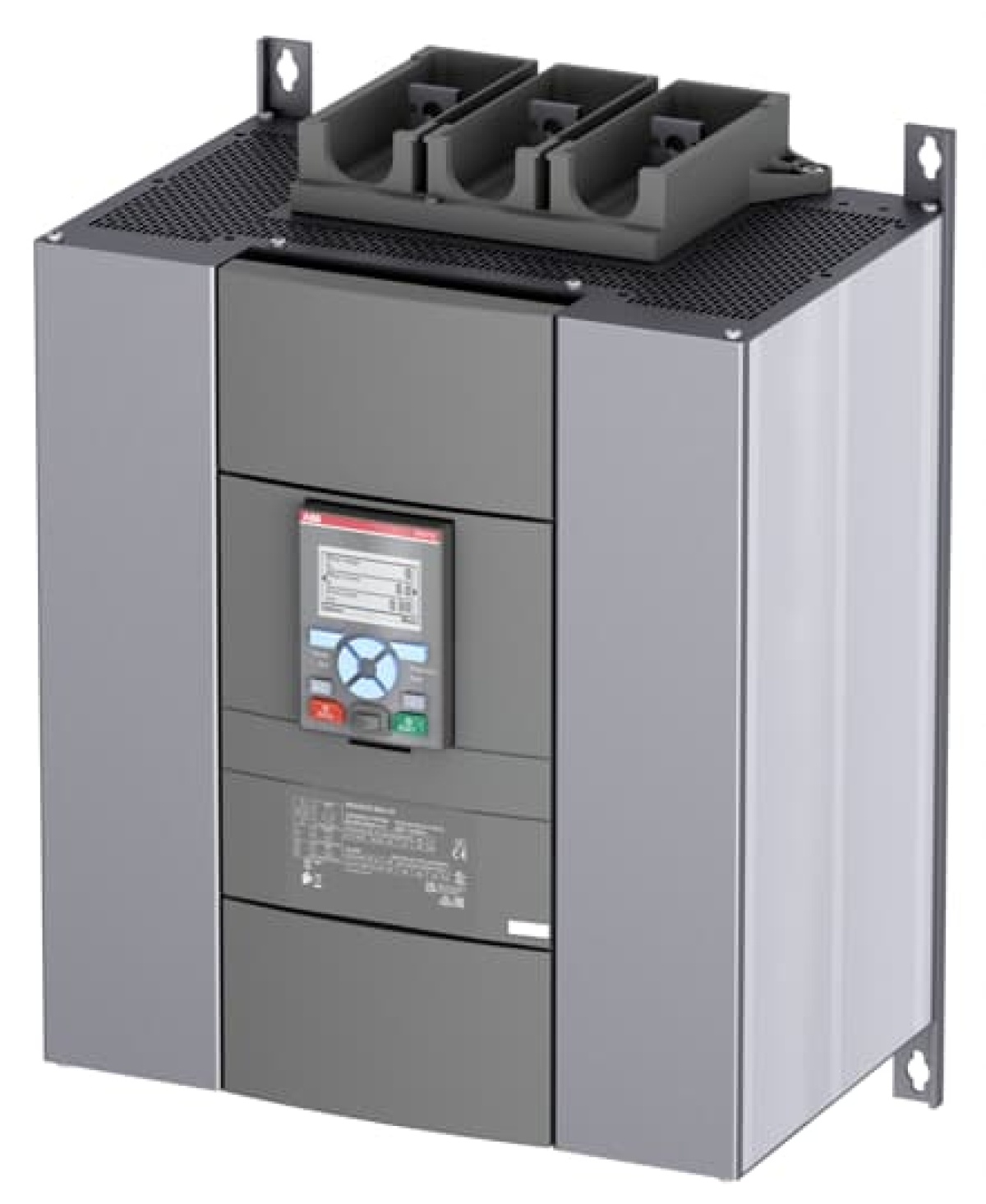

PSTX570-600-70 Softstarter - 570 A - 208 ... 600 V AC
Ref Nortécnica:
EAN:
7320500508992
Descrição
Informações Técnicas
Atributos
Função
-
Com display
-
Tensão nominal de operação Ue
-
-
Tensão de alimentação de corrente nominal de 50 Hz AC
-
-
Tensão de alimentação de corrente nominal de 60 Hz CA
-
-
Tensão de alimentação de corrente nominal DC
-
-
Grau de proteção IP
-
Classe de engategatilho
-
Corrente nominal de operação Ie a 40 C Tu
-
Motor trifásico de potência nominal, em linha, a 230 V
-
Motor trifásico de potência nominal, em linha, a 400 V
-
Motor trifásico de potência nominal, triângulo interno, a 230 V
-
Motor trifásico com potência nominal, triângulo interno, a 400 V
-
Temperatura ambiente avaliada sem redução
-
Proteção integrada contra sobrecarga do motor
-
Tipo de tensão para atuação
-
Bypass interno
-
Controlo de torque
-
Grau de proteção NEMA
-
Marcas
ABB
Descrição Longa
The softstarter PSTX570-600-70 has a rated maximum operational current of 570 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30...1250 A inline connection or 52...2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors.
