Safety interlock switch, plastic body and stainless steel head, 12N holding force. 2NO+1NC guard open. 3xM20 conduits entries. Delivered with standard key. MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Sensores Eletromecânicos e Eletrónicos

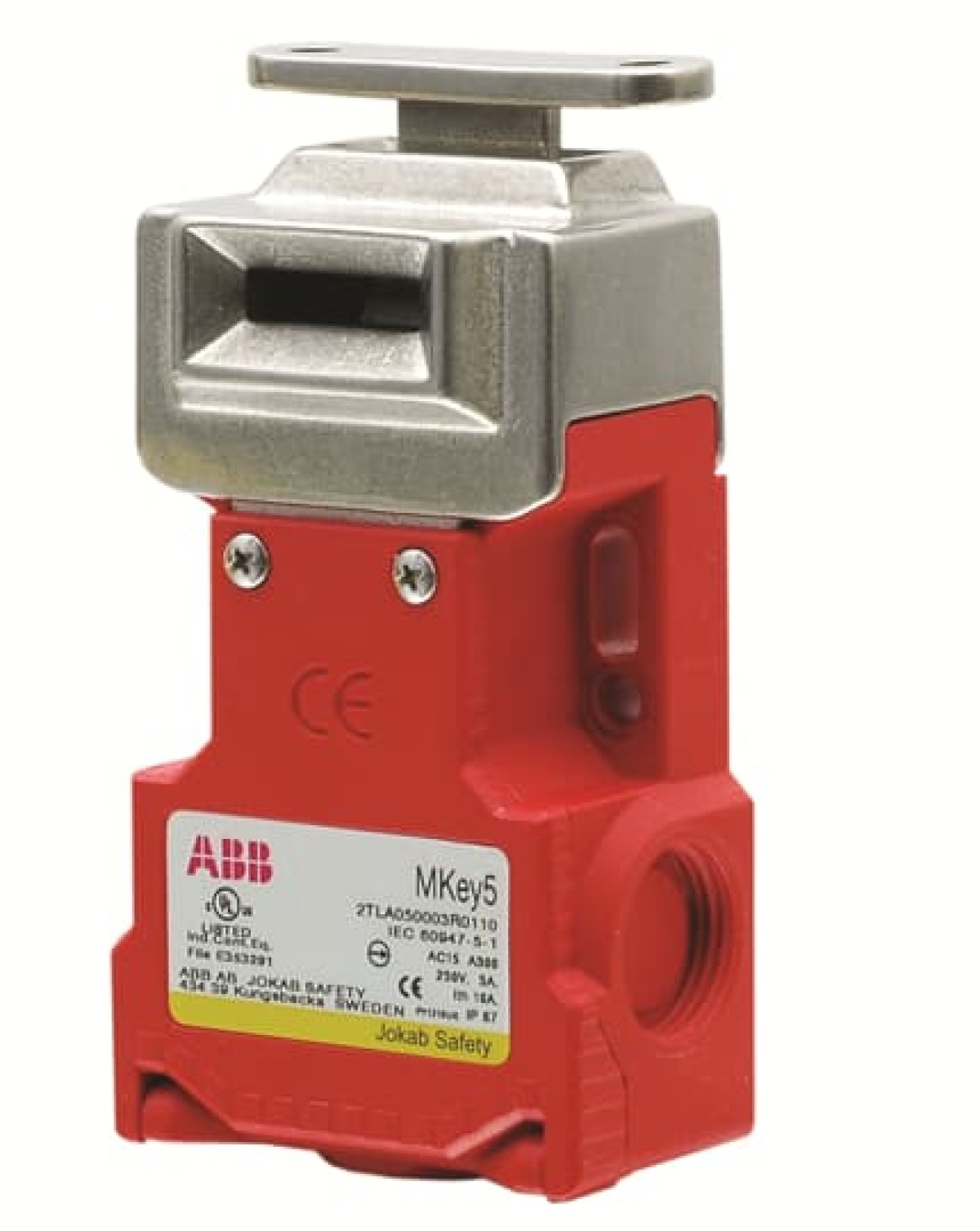

MKey5 SSH Switch
Ref Nortécnica:
EAN:
7350024466270
Descrição
Informações Técnicas
Atributos
Corrente nominal de operação Ie em AC-15, 230 V
3
Corrente nominal de operação Ie em DC-13, 230 V
0.2
Material da caixa protetora
Plástico
Adequado para funções de segurança
Sim
Revestimento da estrutura
Outro
Com indicação de estado
Não
Tipo de contacto de comutação
Outro
Tipo de interface para comunicação de segurança
Outro
Acabamento da conexão elétrica
-
Categoria de segurança contra explosão de gás
Nenhum
Categoria de segurança contra explosão para poeira
Nenhum
Tipo de construção do invólucro
EV006688
Grau de proteção IP
IP67
Abertura forçada
Sim
Número de contatos auxiliares de segurança
0
Tipo de interface
Outro
Corrente nominal de operação em AC-15, 125 V
3
Corrente nominal de operação em AC-15, 24 V
3
Corrente nominal de operação em DC-13, 125 V
0.2
Corrente nominal de operação em DC-13, 24 V
0.2
Sensor de largura
58
Altura do sensor
100.4
Comprimento do sensor
34.5
Temperatura ambiente durante a operação
-25
80
Número de contatos como contato normalmente fechado
2
Número de contatos como contato normalmente aberto
1
Número de contatos como inversores
0
Grau de proteção NEMA
1
Marcas
ABB
Descrição Longa
Safety interlock switch, plastic body and stainless steel head, 12N holding force. 2NO+1NC guard open. 3xM20 conduits entries. Delivered with standard key.
MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
