The CR-M125DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 125 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Relés Industriais

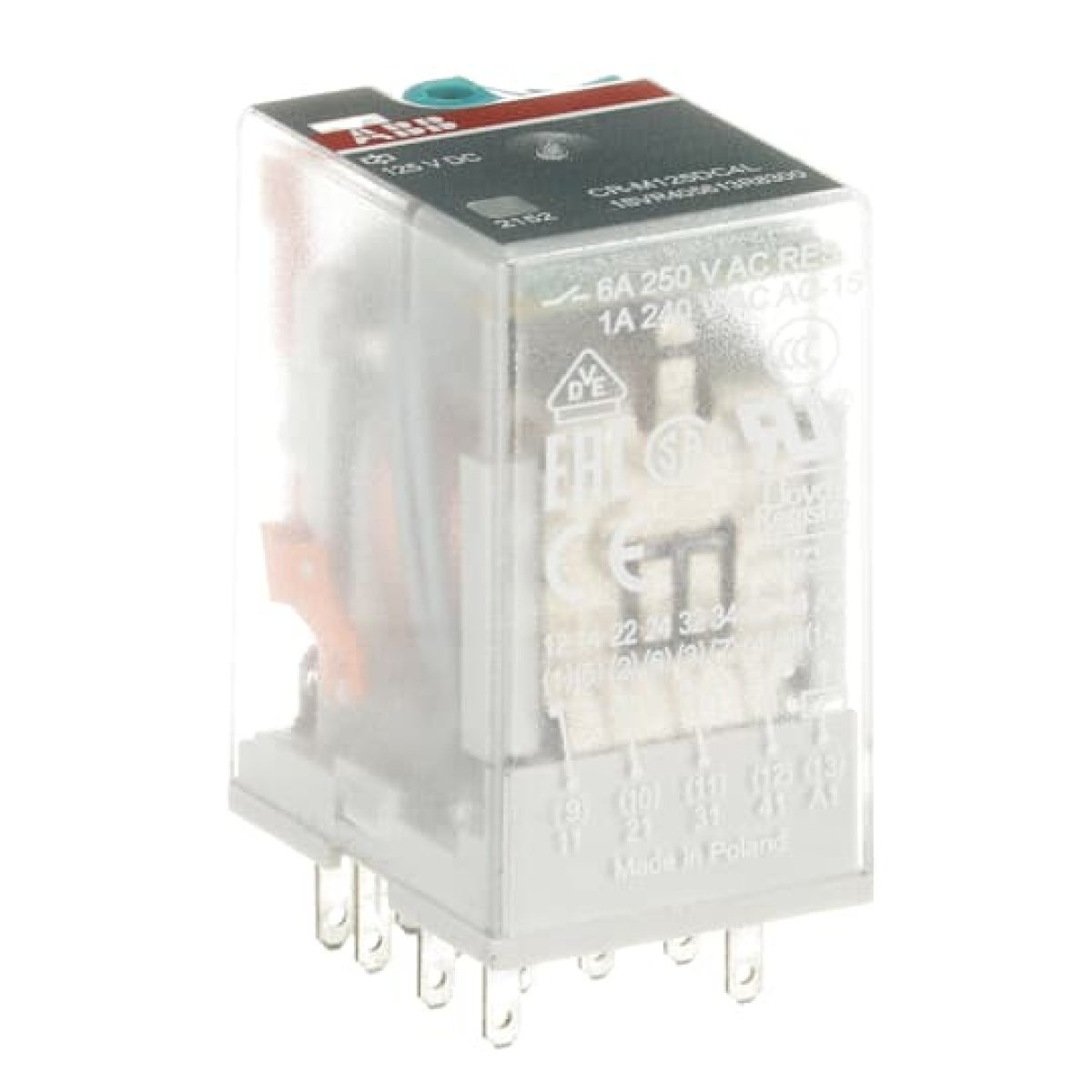

CR-M125DC4L Pluggable interface relay 4co, A1-A2125VDC, 250V6A, LED
Ref Nortécnica:
EAN:
4013614497902
Descrição
Informações Técnicas
Atributos
Corrente nominal
6
Largura
21.2
Altura
35.6
Profundidade
27.5
Corrente máxima de arranque
-
Com braçadeiras destacáveis
Não
Acionador, polarização
Polarizado
Acionadorcomutação do inversor
Mono estável
Com contatos guiados forçados
Não
Tipo de contato do interruptor
Contato único
Completo com base
Não
Acabamento da conexão elétrica
Conexão de ficha plana
Tensão de alimentação de corrente nominal de 50 Hz AC
-
-
Tensão de alimentação de corrente nominal de 60 Hz CA
-
-
Tensão de alimentação de corrente nominal DC
125
125
Material da superfície de contato
Outro
Tipo de tensão tensão de operação
AC/DC
Grau de proteção IP
IP40
Com indicação LED
Sim
Material de contato
Níquel prata (AgNi)
Tensão de operação de 50 Hz CA
250
250
Tensão de operação AC 60 Hz
250
250
Tensão de operação DC
-
-
Tipo de tensão para atuação
DC
Número de contatos como contato normalmente fechado
0
Número de contatos como contato normalmente aberto
0
Número de contatos como inversores
4
Material do contato
-
Categoria de tecnologia de relés de acordo com IEC 61810-7
RT I
Marcas
ABB
Descrição Longa
The CR-M125DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 125 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
