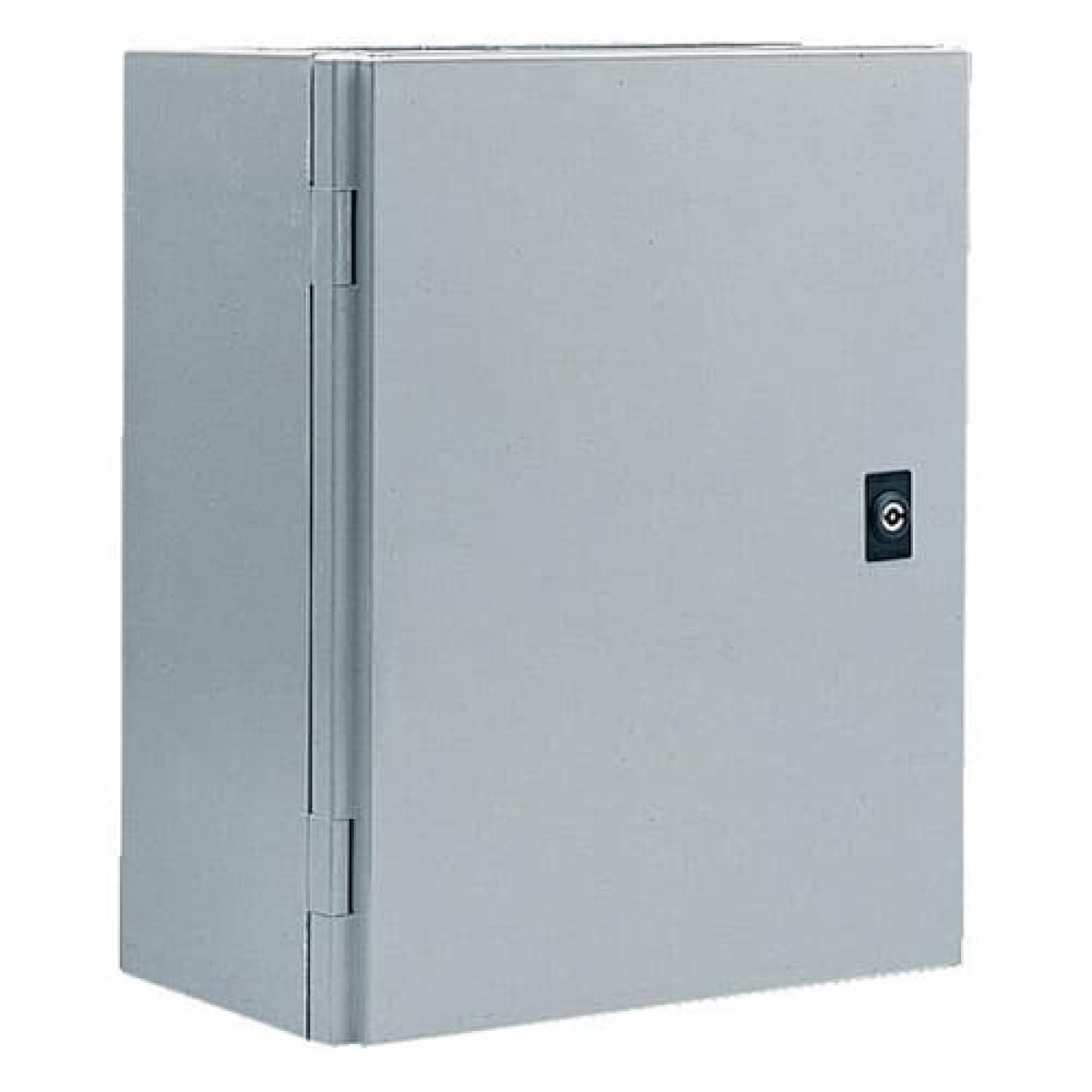

ARIA cabinet special version with holes in the floor and door swing left. The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA64O2 Special cabinet V.01 O2 Abel ARIA 64 with holes in the bottom Drawing: A1015212_ED07.pdf
Armários
ARIA 64 SPECIAL CABINET O2 ABEL
Ref Nortécnica:
EAN:
5411815235276
Descrição
Informações Técnicas
Atributos
Método de montagem
Montagem em superfície (gesso)
Classe de proteção de acordo com IEC 61140
II
Cor
Cinzento
Largura
415
Altura
615
Profundidade
230
Número RAL
7035
Com tampa de montagem
Não
Tipo de acabamento
Sem tratamento
Profundidade incorporada
-
Quantidade de filas
0
Tipo de cobertura
Porta
Número de entradas de condutores
0
Extensão possível
Não
Profundidade interior
208
Material da caixa protetora
Plástico
Integridade do circuito
Nenhum
Largura em número de módulos
0
Adequado para uso no exterior
Sim
Resistência ao impacto IK
IK10
Número de módulos
0
Tipo de porta
Único
Grau de proteção IP
IP66
Tampaporta transparente
Não
Com fechadura
Sim
Adequado para proteção contra raios
Não
Corrente nominal In
-
Espessura do material do invólucro
3
Espessura do material da portatampa
3
Tipo de tampa
Fechado
Número de aberturas para placas de flange
0
Grau de proteção NEMA
12
Tampa com libertação de sobrepressão
Não
Marcas
ABB
Descrição Longa
ARIA cabinet special version with holes in the floor and door swing left. The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA64O2 Special cabinet V.01 O2 Abel ARIA 64 with holes in the bottom Drawing: A1015212_ED07.pdf
