Safety switch, 6-p. 415V AC23 200A, 110kW. Mounted auxiliary contact: 4NO2NC. Stainless steel enclosure. IP65. StainlessSteel Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure and handle of the OT series is made of rigid acid proof steel, class AISI316L. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. The cover has also a gas pressure releaf function, to protect the user in case of internal arc. Suitable for outdoor and indoor use. The cable entries holes are prepared for cable flanges. The cable flanges (KOT61007 or KOT62296 (for EMC)) and the covers for the holes (KOT61008), have to be bought separately. The switch can be used in EMC applications, if EMC ring flanges are used. PE terminals and auxiliary contacts are included.
Aparelhos de Corte e Proteção

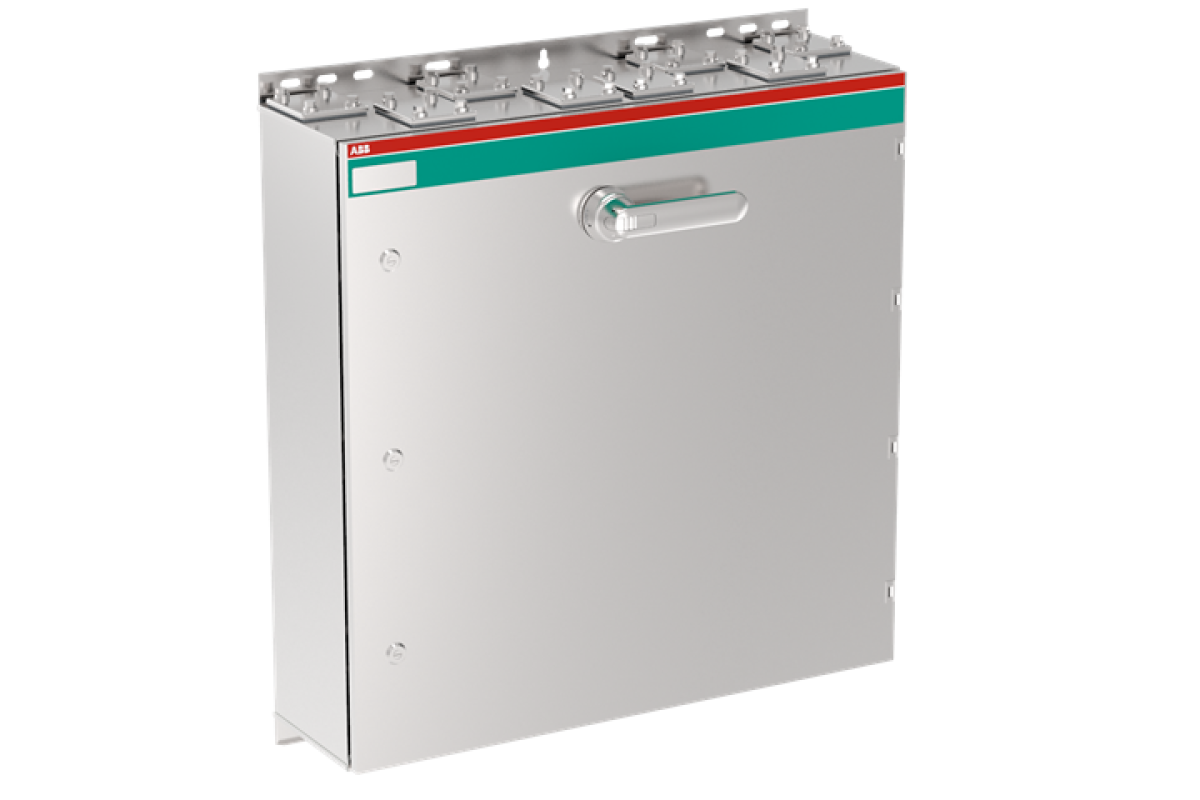

OT200ESUR6TZ Safety switch
Ref Nortécnica:
EAN:
6417019371085
Descrição
Informações Técnicas
Atributos
Largura
800
Altura
800
Profundidade
230
Potência de operação nominal em AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
4
Número de contatos auxiliares como contato normalmente fechado
2
Corrente permanente nominal Iu
200
Número de polos
6
Tensão nominal de operação
1000
1000
Corrente condicional nominal de curto-circuito Iq
-
Largura em número de módulos
-
Grau de proteção IP, frente
IP65
Número de contatos auxiliares como contato de comutação
0
Número de interruptores
1
Possível interbloqueio
Sim
Acionamento do motor integrado
Não
Tipo de conexão elétrica do circuito principal
-
Versão como instalação de paragem de emergência
Não
Tipo de elemento de controlo
Botão de giro longo
Versão de interruptor principal
Sim
Versão de interruptor de segurança
Sim
Versão de chave de manutençãoserviço
Sim
Potência de operação nominal em AC-23, 400 V
110
Corrente nominal suportável lcw atual
8
Cor do elemento de atuação
Cinzento
EF007243
-
Adequado para montagem frontal de 4 furos
Não
Adequado para o centro de montagem frontal
Não
Apropriado para a instalação do quadro de distribuição
Sim
Adequado para montagem intermediária
-
Máx. tensão nominal de operação Ue CA
1000
Acionamento do motor opcional
Não
Saída de tensão opcional
Não
Construção do dispositivo
Dispositivo completo na carcaça
Corrente permanente nominal em AC-21, 400 V
-
Potência de comutação a 400 V
110
Versão do interruptor de inversão
Não
Corrente contínua nominal, AC-23, 400 V
200
Grau de proteção NEMA
Outro
Com cablagem pré-montada
-
Marcas
ABB
Descrição Longa
Safety switch, 6-p. 415V AC23 200A, 110kW. Mounted auxiliary contact: 4NO2NC. Stainless steel enclosure. IP65. StainlessSteel Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure and handle of the OT series is made of rigid acid proof steel, class AISI316L. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. The cover has also a gas pressure releaf function, to protect the user in case of internal arc. Suitable for outdoor and indoor use. The cable entries holes are prepared for cable flanges. The cable flanges (KOT61007 or KOT62296 (for EMC)) and the covers for the holes (KOT61008), have to be bought separately. The switch can be used in EMC applications, if EMC ring flanges are used. PE terminals and auxiliary contacts are included.
