Indication of the position of the device’s contacts. S2C-H01 is the opening device and S2C-H10 the closing device. Compared to the S2C-S/H6R, the S2C-H10 entails less cost and many practical benefits. It can be fitted at the bottom of the MCBs and RCDs and is thus much more convenient for retrofitting than the side-mounted device because not all MCBs have to be removed from the rail first. And even when the MCBs affected are connected to a busbar, they do not have to be removed. 50% space can be saved. Suitable for MCBs S200 series, electronic RCBOs DSE200 series.
Aparelhos de Gestão e Medida

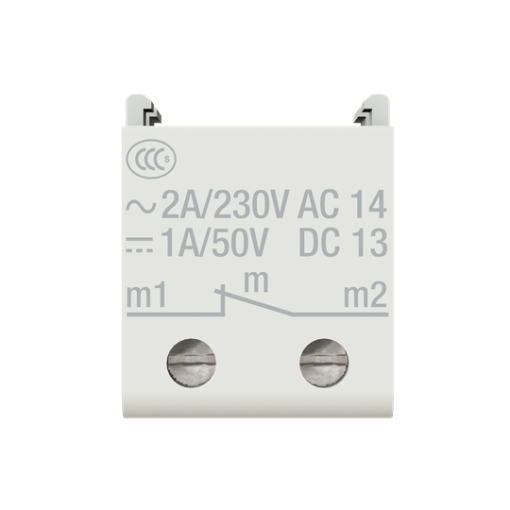

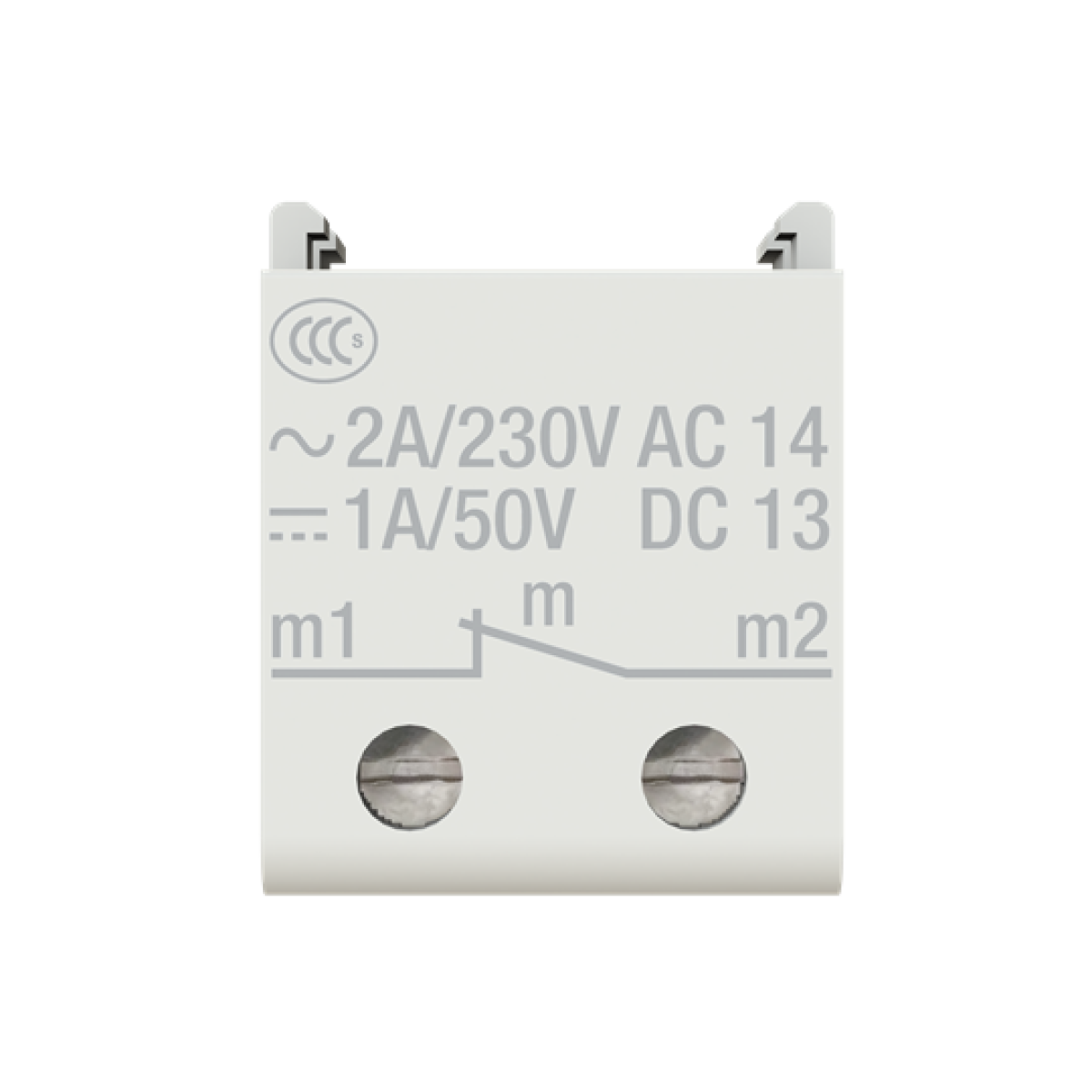

S2C-H01 Bottom-fitting auxiliary contact 1NC
Ref Nortécnica:
EAN:
4016779645515
Descrição
Informações Técnicas
Atributos
Função
Interruptor auxiliar
Tipo de tensão
-
Tensão especificada de funcionamento
-
Largura em número de módulos
-
Corrente estipulada do interruptor
-
Número de comutadores de sinal de erro
0
Montagem do dispositivo
Disjuntor modular
Número de contatos como contato normalmente fechado
1
Número de contatos como contato normalmente aberto
0
Número de contatos como inversores
0
Com teste automático para a função de descarga à terra
Não
Adaptado ao número de polos máx. da unidade de contato principal total
-
Adequado para max. da unidade de contato principal
-
Marcas
ABB
Descrição Longa
Indication of the position of the device’s contacts. S2C-H01 is the opening device and S2C-H10 the closing device. Compared to the S2C-S/H6R, the S2C-H10 entails less cost and many practical benefits. It can be fitted at the bottom of the MCBs and RCDs and is thus much more convenient for retrofitting than the side-mounted device because not all MCBs have to be removed from the rail first. And even when the MCBs affected are connected to a busbar, they do not have to be removed. 50% space can be saved. Suitable for MCBs S200 series, electronic RCBOs DSE200 series.
