For wireless switching of electrical loads. For driving and adjusting blinds/shutters and awnings over radio. Functions via radio control: 2gang switch, blind switch and light scene control. Functions via extension unit: 2gang switch, blind switch and send radio control telegram. Operation via conventional push button (2020 US/2021/6 UK) possible. Actuation of the extension unit (via conventional push-button) causes the output to switch and a radio control telegram to be sent. Actuation of the extension unit in 2gang switch function: An ON/OFF telegram is sent alternately. Actuation of the extension unit in blind switch function: Extension unit 1 sends an UP and extension unit 2 sends a DOWN telegram. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. With blind switch function: 3 minutes run time. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.
Interruptores, Variadores e Botões

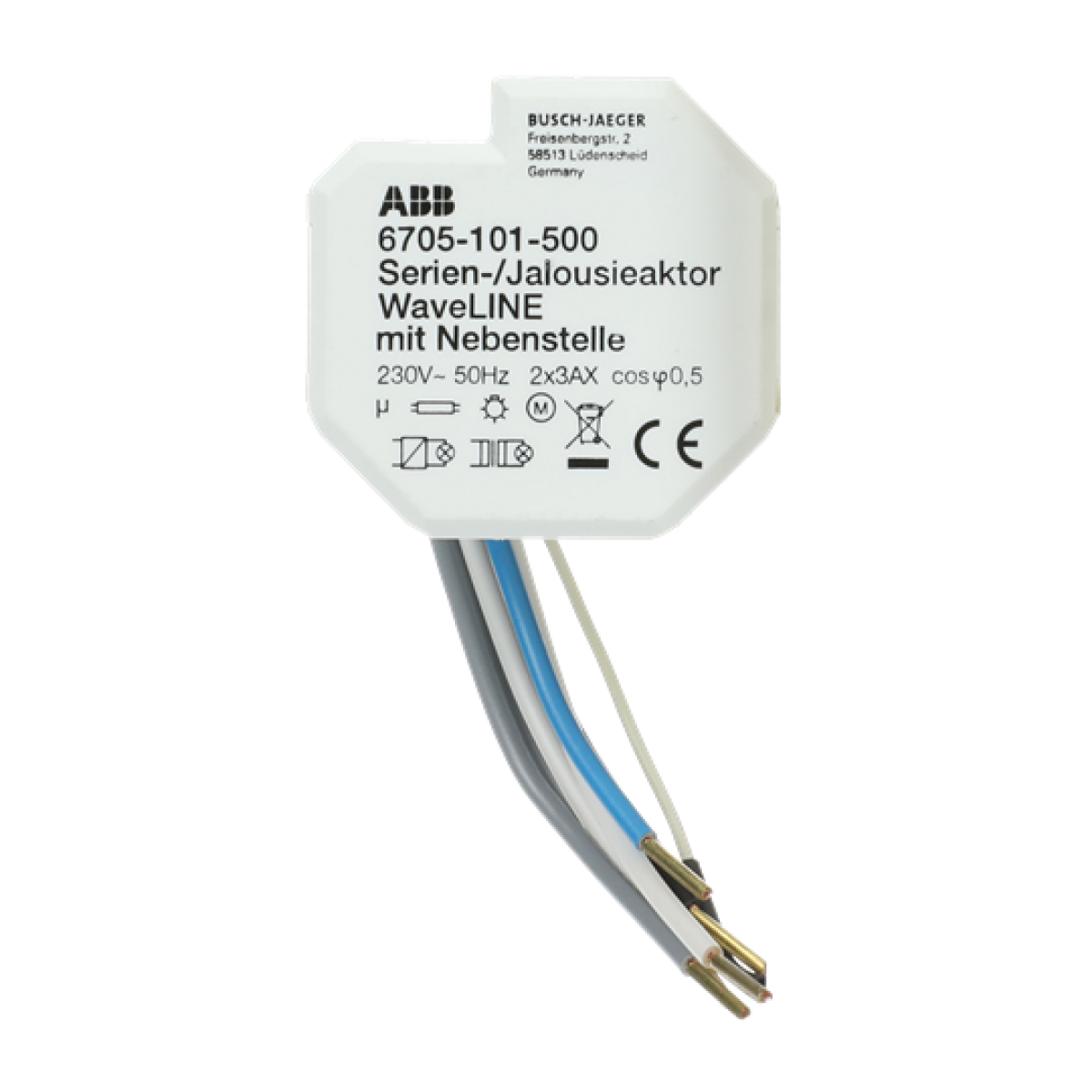

WaveLine Blind Actuator 230 V
Ref Nortécnica:
EAN:
4011395182666
Descrição
Informações Técnicas
Atributos
Tensão nominal
230
Método de montagem
Montagem encastrada (gesso)
Sistema de montagem
-
Cor
Outro
Livre de halogéneo
Sim
Tipo de acabamento
Sem tratamento
Autonomia
-
Gerador aleatório
-
Com função de memória
-
Frequência intervalo
868
868
Qualidade do material
Termoplástico
Potência de comutação máxima
-
Com programa astronómico
-
Material
Outro
Tipo de aperto da fixação
Montagem de braçadeira
Temporizador integrado
-
Proteção de desligamento
-
Valor crepuscular ajustável
-
-
Com conexão de detetor de quebra de vidro
-
Com conexão do sensor de brilho
-
Possível controlo auxiliar
-
Número RAL semelhante
-
Valor da proteção solar ajustável
-
-
Adequado para sensor de chuva
-
Adequado para sensor de vento
-
Transparente
Não
Acabamento da superfície
Mate
Adequado para grau de proteção IP
IP20
Compatível com IFTTT
Não
Min. profundidade da caixa de instalação embutida
29
Compatível com o HomeKit da Apple
Não
Compatível com o Google Assistant
Não
Compatível com Alexa da Amazon
Não
Marcas
ABB
Descrição Longa
For wireless switching of electrical loads. For driving and adjusting blinds/shutters and awnings over radio. Functions via radio control: 2gang switch, blind switch and light scene control. Functions via extension unit: 2gang switch, blind switch and send radio control telegram. Operation via conventional push button (2020 US/2021/6 UK) possible. Actuation of the extension unit (via conventional push-button) causes the output to switch and a radio control telegram to be sent. Actuation of the extension unit in 2gang switch function: An ON/OFF telegram is sent alternately. Actuation of the extension unit in blind switch function: Extension unit 1 sends an UP and extension unit 2 sends a DOWN telegram. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx und 6733-xxx. For remote control WaveLINE 6780. With blind switch function: 3 minutes run time. Repeater function can be activated for extended range. For universal attachment or installation. 3 wire connection (neutral conductor required). For installation in (deep) flush-mounted boxes to German Standard DIN 49073. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m.
