Surge protective devices SPD type 1- type 2 protect low-voltage consumer systems against lightning currents and surge voltages as they are tested as SPD type 1 and type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected
Descarregadores de Sobretensão

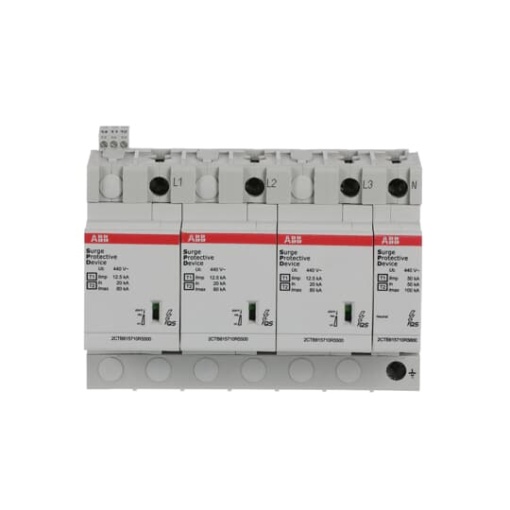

OVR T1-T2 3N 12.5-440s P TS QS Surge Protective Device
Ref Nortécnica:
272CTB815710R3600
EAN:
3660308525093
Descrição
Informações Técnicas
Atributos
Método de montagem
-
Corrente de impulso de raio 10350 µs
12.5
Número de polos
4
Tamanho do fusível
8 espaços modulares
Nível de proteção de tensão
-
Sinalização remota
Sim
Capacidade de extinção de corrente sucessiva
-
Tensão máxima contínua AC
-
Tensão nominal CA
-
Tensão nominal DC
-
Classe de ensaio
-
Nível de proteção L-N
1.9
Sinalização no nível do dispositivo
-
Máxima tensão DC contínua
-
Grau de proteção IP
IP20
Tensão fotovoltaica máx.
-
Nível de proteção de tensão N-PE
1.9
Fusível de backup integrado
Não
Secção do condutor rígido máx. monomulti filamento
-
Secção flexível do condutor máx. fio fino
-
Nível de proteção de tensão DC - DC-
-
Nível de proteção de tensão DC DC- - PE
-
Energia específica WR
-
Efeito de proteção coordenada por energia em relação ao equipamento terminal
Não
Esquema de ligação DC
Não
Esquema de ligação TI
Não
Esquema de ligação TN
Não
Esquema de ligação TN-C
Não
Esquema de ligação TN-S
Sim
Esquema de ligação TT
Sim
Configuração de outro esquema de ligação
Não
Esquema de ligação TN-C-S
Não
Nível de proteção de tensão L-PE
2
Proteção de sobreintensidade máx. Ligação em paralelo fusível
-
Proteção de sobreintensidade máx. Ligação em série fusível
-
Comutação de tensão por tecnologia "spark gap"
Não
Tomada de tensão protegida contra sobreintensidades
Não
Marcas
ABB
Descrição Longa
Surge protective devices SPD type 1- type 2 protect low-voltage consumer systems against lightning currents and surge voltages as they are tested as SPD type 1 and type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected
