Type 2 SPD’s are designed to discharge the currents generated by indirect lightning strikes causing induced or conducted overvoltages on the power distribution network. They are characterized by an 8/20μs waveform (Imax). Higher is the Imax, more powerful they are. They are installed in the main distribution switchboard but also in sub-distribution board. They have a low residual voltage Up often compatible with the withstand voltage of the equipment to protect. If this is not the case or the cable length to the equipment is longer than 10m, another level of coordination with OVR T2-T3, OVR T3 will be needed.
Descarregadores de Sobretensão

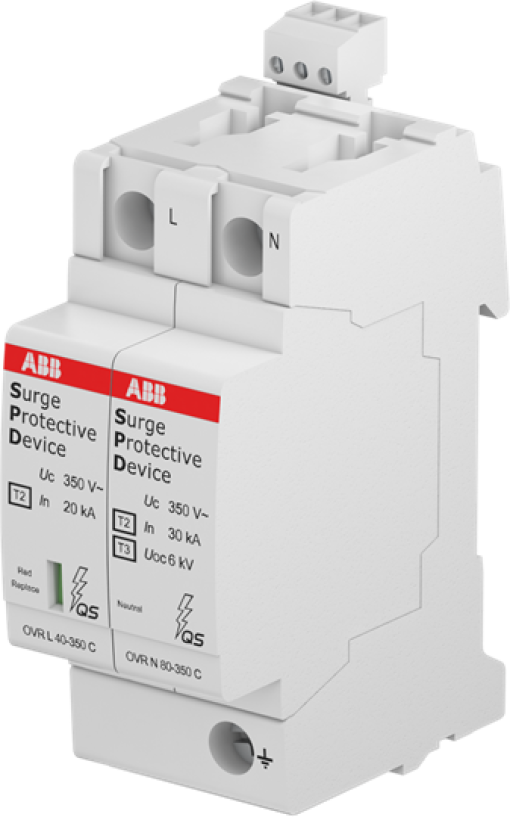

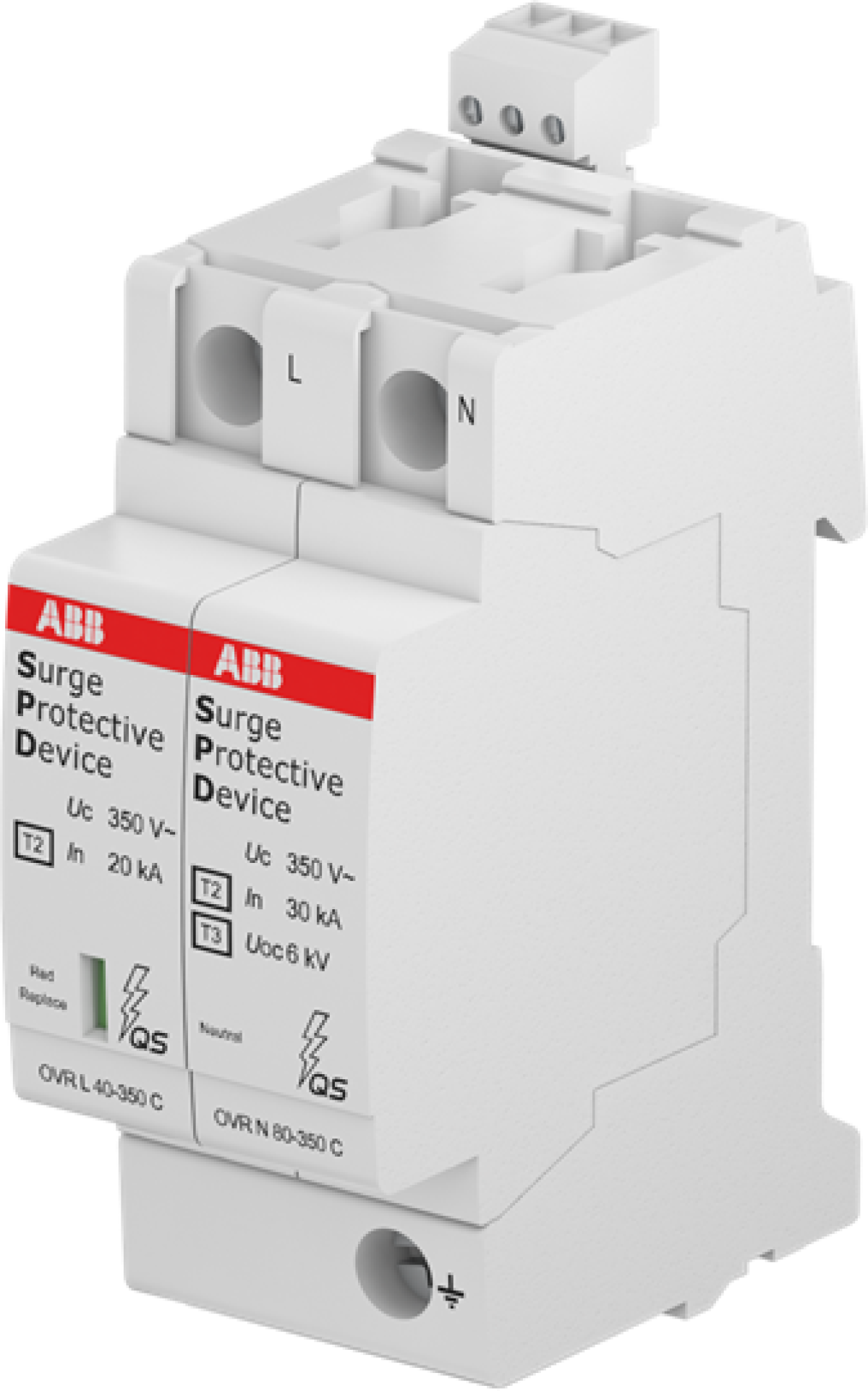

OVR T2 1N 40-440 P TS QS Surge Protective Device
Ref Nortécnica:
EAN:
3660308524577
Descrição
Informações Técnicas
Atributos
Método de montagem
Outro
Com contato de sinalização remota
Sim
Número de condutores Sem aterramento
2
Tamanho do fusível
2 espaços modulares
Nível de proteção de tensão
1.5
Tensão máxima contínua AC
440
Corrente de descarga nominal 820
20
Tensão nominal CA
230
Tensão nominal DC
-
Ensaio de categoria tipo 2
Sim
Nível de proteção L-N
1.25
Sinalização no nível do dispositivo
Ótico
Máxima tensão DC contínua
-
Grau de proteção IP
IP20
Tensão fotovoltaica máx.
-
Nível de proteção de tensão N-PE
1.4
Fusível de backup integrado
Não
Secção do condutor rígido máx. monomulti filamento
25
Secção flexível do condutor máx. fio fino
16
Esquema de ligação DC
Não
Esquema de ligação TI
Não
Esquema de ligação TN
Sim
Esquema de ligação TN-C
Não
Esquema de ligação TN-S
Sim
Esquema de ligação TT
Sim
Configuração de outro esquema de ligação
Não
Esquema de ligação TN-C-S
Sim
Corrente de choque de descarga máxima 820
20
Resistência a curto-circuito Isccr
100
Proteção de sobreintensidade máx. Ligação em paralelo fusível
125
Proteção de sobreintensidade máx. Ligação em série fusível
125
Proteção contra curto-circuitos integrada
Não
Proteção contra curto-circuitos seletiva integrada - por fusível gG
-
Sem correntes de fuga
Sim
Marcas
ABB
Descrição Longa
Type 2 SPD’s are designed to discharge the currents generated by
indirect lightning strikes causing induced or conducted
overvoltages on the power distribution network.
They are characterized by an 8/20μs waveform (Imax). Higher is
the Imax, more powerful they are.
They are installed in the main distribution switchboard but also in
sub-distribution board.
They have a low residual voltage Up often compatible with the
withstand voltage of the equipment to protect. If this is not the
case or the cable length to the equipment is longer than 10m,
another level of coordination with OVR T2-T3, OVR T3 will be
needed.
