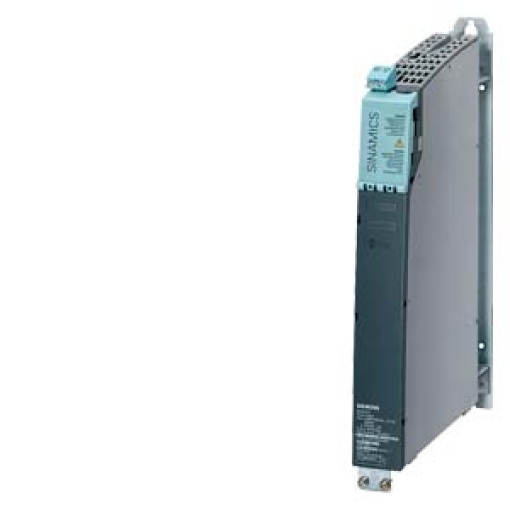

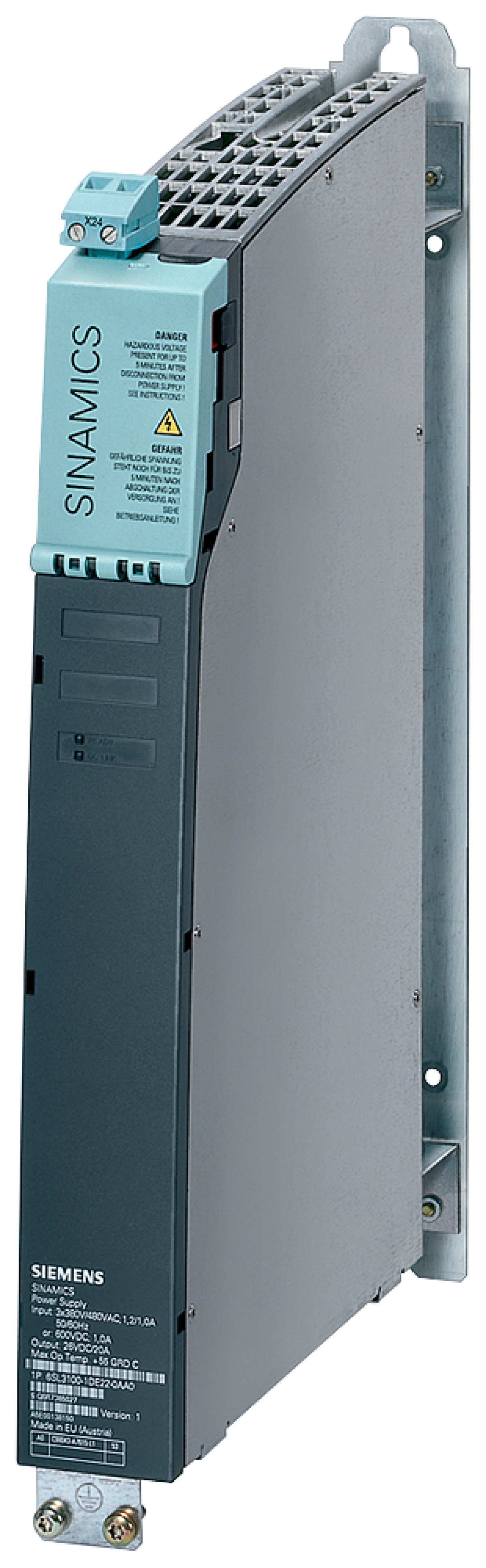

SINAMICS CONTROL SUPPLY MODULE INPUT: 600 V DC/3-PH. 380-480 V 50/60 HZ OUTPUT: 24..28.V DC +/-2%, 20 A Smart Line Module SINAMICS Smart Line Module in booksize compact design for the SINAMICS S120 drive system. Smart Line Modules are non-regulated feed/feedback units with 100% continuous regenerative feedback power. The regenerative capability of the modules can be deactivated by means of parameterization. In standard form, the modules have one network connection by means of screw terminals, one DC link connection, and three DRIVE-CLiQ sockets. The Smart Line Module covers the three-phase voltage range from 380 V up to 480 V 3AC and contains an internal air cooler. SINAMICS – simply my drive.
Variação de Velocidade e Arranque Motor
SINAMICS CONTROL SUPPLY MODULE INPUT 600 V DC3-PH. 380-480 V 5060 HZ OUTPU...
Ref Nortécnica:
EAN:
4042948662977
Descrição
Informações Técnicas
Atributos
Tipo de acessóriopeça de reposição
-
Acessório
-
Peça de substituição
-
Marcas
SIEMENS
Descrição Longa
SINAMICS CONTROL SUPPLY MODULE INPUT: 600 V DC/3-PH. 380-480 V 50/60 HZ OUTPUT: 24..28.V DC +/-2%, 20 A Smart Line Module SINAMICS Smart Line Module in booksize compact design for the SINAMICS S120 drive system. Smart Line Modules are non-regulated feed/feedback units with 100% continuous regenerative feedback power. The regenerative capability of the modules can be deactivated by means of parameterization. In standard form, the modules have one network connection by means of screw terminals, one DC link connection, and three DRIVE-CLiQ sockets. The Smart Line Module covers the three-phase voltage range from 380 V up to 480 V 3AC and contains an internal air cooler. SINAMICS – simply my drive.
