SIMATIC S7-1200, Analog input, SM 1238 Energy Meter 480 V AC, power measurement module for data acquisition in 1- and 3-phase supply systems (TN, TT) up to 480 V AC; Current range: 1 A, 5A; acquisition of voltage, current, phase angles, power, energy values, frequencies; Channel diagnostics SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options The SM 1238 Energy Meter 480VAC expansion module is designed for recording energy data in an S7-1200 station. It registers more than 200 different electrical and other measured values. These are processed directly in the CPU and can be visualized using a Basic Panel. This enables users to acquire transparency about the energy requirements of individual components of their production system.
Autómatos Programáveis e Terminais de Diálogo

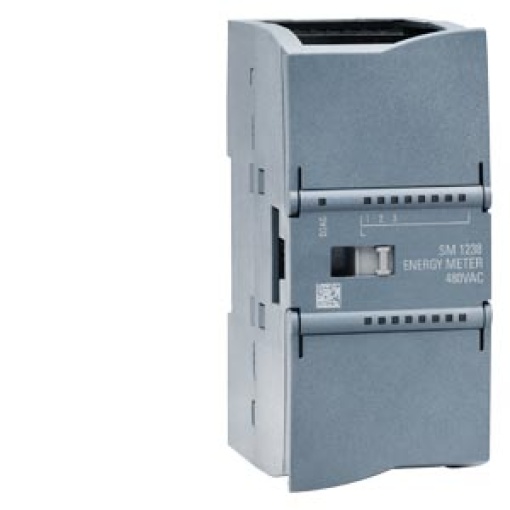

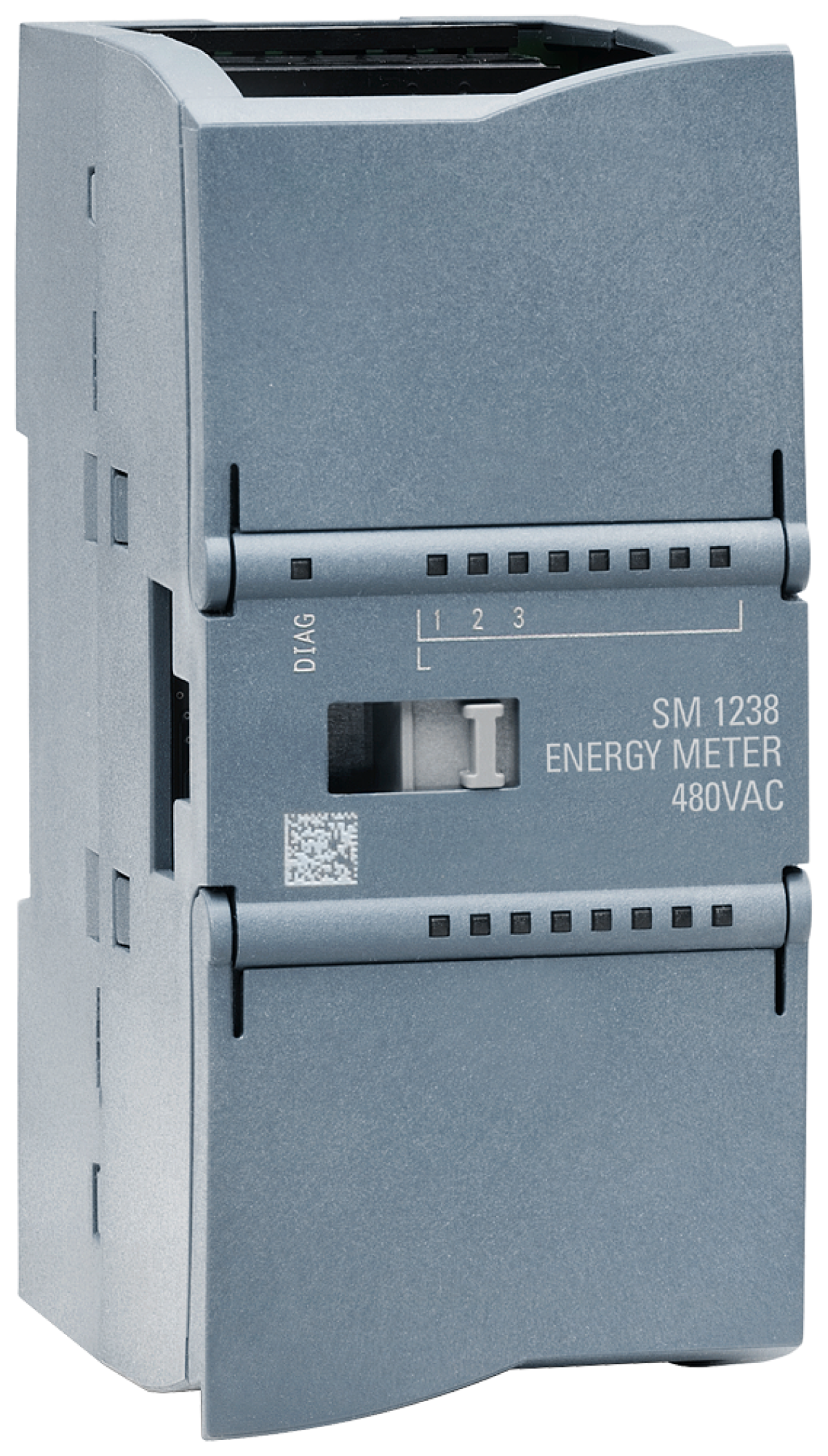

SIMATIC S7-1200 SM 1238, AI energy meter 480 V AC
Ref Nortécnica:
EAN:
4034106030575
Descrição
Informações Técnicas
Atributos
Largura
45
Altura
100
Profundidade
75
Adequado para funções de segurança
Não
Número de entradas analógicas
-
Número de saídas analógicas
0
Entrada, corrente
Sim
Entrada, tensão
Sim
Entrada, resistência
Não
Entrada, termómetro de resistência
Não
Entrada, termopar
Não
Sinal de entrada, configurável
Sim
Saída em corrente
-
Saída em tensão
-
Sinal de saída configurável
-
Resolução das entradas analógicas
-
Resolução das saídas analógicas
-
Acabamento da conexão elétrica
Conexão por terminal de mola/parafuso
Categoria de segurança contra explosão de gás
-
Categoria de segurança contra explosão para poeira
Nenhum
Equipamento associado Ex ia
Não
Equipamento associado Ex ib
Não
Nível de desempenho de acordo com EN ISO 138491
-
Entradas analógicas configuráveis
Sim
Saídas analógicas configuráveis
-
SIL de acordo com IEC 61508
-
Marcas
SIEMENS
Descrição Longa
SIMATIC S7-1200, Analog input, SM 1238 Energy Meter 480 V AC, power measurement module for data acquisition in 1- and 3-phase supply systems (TN, TT) up to 480 V AC; Current range: 1 A, 5A; acquisition of voltage, current, phase angles, power, energy values, frequencies; Channel diagnostics SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options The SM 1238 Energy Meter 480VAC expansion module is designed for recording energy data in an S7-1200 station. It registers more than 200 different electrical and other measured values. These are processed directly in the CPU and can be visualized using a Basic Panel. This enables users to acquire transparency about the energy requirements of individual components of their production system.
