SIMATIC S7, Analog input SM 336, 6 AI; 15 bit; fail-safe analog inputs for SIMATIC Safety, with HART support, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 20-pole SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. As many as 12 IO modules can be inserted into each station. The standardized setup of all modules considerably simplifies logistics and stocking of spare parts. ET 200M can be used both for standard and for safety-oriented applications. Up to 12 multi-channel signal modules (e.g. 64 digital inputs) and function modules as well as S7-300 communications processors can be used as I/O modules (the interface to the process). This means the ET 200M also supports modules with extended user data, such as HART modules with HART auxiliary variables. In addition to conventional connection methods, the ET 200M offers you the FastConnect fast connection technology for easy wiring without stripping.
Autómatos Programáveis e Terminais de Diálogo

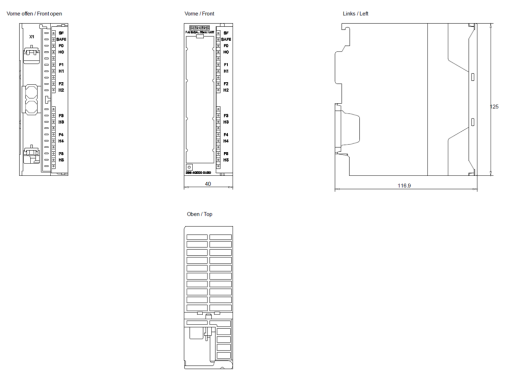

SIMATIC S7-300 SM 336, F-AI 6x 04 ... 20 mA HART
Ref Nortécnica:
EAN:
4025515076025
Descrição
Informações Técnicas
Atributos
Largura
40
Altura
125
Profundidade
120
Adequado para funções de segurança
Sim
Número de entradas analógicas
6
Número de saídas analógicas
0
Entrada, corrente
Sim
Entrada, tensão
Não
Entrada, resistência
Não
Entrada, termómetro de resistência
Não
Entrada, termopar
Não
Sinal de entrada, configurável
Sim
Saída em corrente
-
Saída em tensão
-
Sinal de saída configurável
-
Resolução das entradas analógicas
16
Resolução das saídas analógicas
-
Acabamento da conexão elétrica
Conexão por terminal de mola/parafuso
Categoria de segurança contra explosão de gás
Proteção contra explosão ATEX gás, cat.3G
Categoria de segurança contra explosão para poeira
Nenhum
Equipamento associado Ex ia
Não
Equipamento associado Ex ib
Não
Nível de desempenho de acordo com EN ISO 138491
Nível e
Entradas analógicas configuráveis
Sim
Saídas analógicas configuráveis
-
SIL de acordo com IEC 61508
3
Marcas
SIEMENS
Descrição Longa
SIMATIC S7, Analog input SM 336, 6 AI; 15 bit; fail-safe analog inputs for SIMATIC Safety, with HART support, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 20-pole SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20, which can be used as a central I/O on an S7-300 as well as in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module. As many as 12 IO modules can be inserted into each station. The standardized setup of all modules considerably simplifies logistics and stocking of spare parts. ET 200M can be used both for standard and for safety-oriented applications. Up to 12 multi-channel signal modules (e.g. 64 digital inputs) and function modules as well as S7-300 communications processors can be used as I/O modules (the interface to the process). This means the ET 200M also supports modules with extended user data, such as HART modules with HART auxiliary variables. In addition to conventional connection methods, the ET 200M offers you the FastConnect fast connection technology for easy wiring without stripping.
