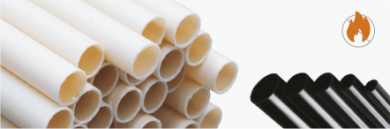

VD Conduit

→ Rigid insulating

 320N Light / 750N Medium / 1250N Strong

 2 Joule

 -5ºc to +60ºc

Diameters: 12 to 110 mm
Self-extinguishing: 960º / 5 seconds
Colors: Black / Grey / Cream
Application: General installations, in dry environments with no high mechanical risks.

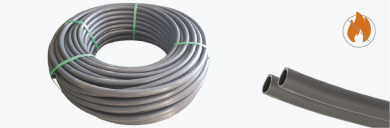

Gris Conduit

→ Flexible insulating

320N Light / 750N Medium

 2 and 6 Joule

 -15ºc to +90ºc

Diameters: 16 to 40 mm
Self-extinguishing
Colors: Grey
Application: Industrial environments, areas at risk of mechanical damage or exposed to adverse weather conditions (gardens, building facades).

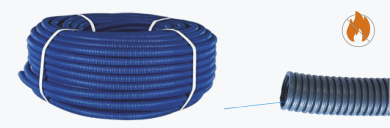

Ribbed Conduit with Guide

→ Flexible insulating

320N Light / 750N Medium

 2 and 6 Joule

 -15ºc to +90ºc

Diameters: 16 to 32 mm
Self-extinguishing
Colors: Grey / Blue
Application: Environments where cables need to be guided simply and efficiently, a practical solution for long distances or installations requiring frequent bends and changes in direction.

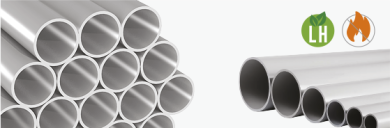

Halogen-Free VD Conduit

→ Rigid insulating

320N Light / 750N Medium / 1250N Strong

 6 Joule

 -25ºc to +90ºc

Diameters: 16 to 63 mm
Self-extinguishing: 960º / 5 seconds
Colors: Black / Grey
Application: Critical infrastructures (hospitals, schools, public buildings, data centers).

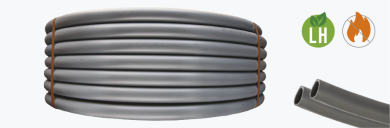

Halogen-Free Gris Conduit

→ Flexible insulating

750N Medium / 1250N Strong

 6 Joule

 -15ºc to +90ºc

Diameters: 16 to 40 mm
Self-extinguishing
Colors: Grey
Application: Areas with risk of mechanical damage in critical infrastructures.

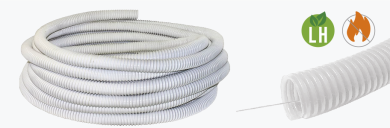

Halogen-Free Ribbed Conduit with Guide

→ Flexible insulating

320N Light

 2 Joule

 -5ºc to +90ºc

Diameters: 16 to 40 mm
Self-extinguishing
Colors: White
Aplication: Environments where cables need to be guided simply and efficiently in critical infrastructures. Installation is allowed in false ceilings and hollow walls (ITED 4).

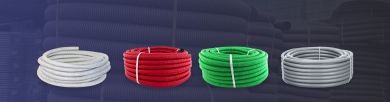

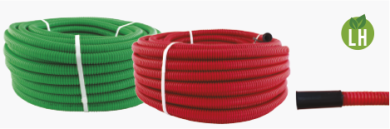

Halogen-Free Corrugated Conduit

→ Flexible insulating

320N Light / 750N Medium

 3 to 40 Joule

 -15ºc to +90ºc

Diameters: 20 to 200 mm
Colors: Green / Red
Application: Environments where quick and flexible installation is required, such as telecommunications networks, power cables in outdoor or underground areas.

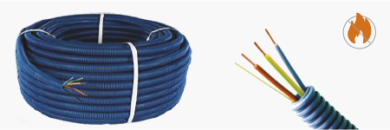

Pre-wired Conduit

→ Flexible insulating

320N Light

 2 Joule

 -5ºc to +60ºc

Diameters: 16 to 40 mm
Number of conductors: 2, 3, 4 and 5
Conductor section: 1,5 mm² and 2,5 mm²
Self-extinguishing
Colors: Blue
Application: Applications where speed and ease of installation are essential factors. Very short execution time on site.
