Rated voltage: 120 - 230 Vac; 50/60 Hz Rated current: 10A Braking capacity: 3.000A Residual current (sensitivity - I∆n): 10 mA C type magneto-thermic protection A type residual current protection Two-pole (1P + N) with 1 protected pole Without fixing claws Cover plate code: 8534, 8434, 8234 & 5534
DHM - Panel Equipment

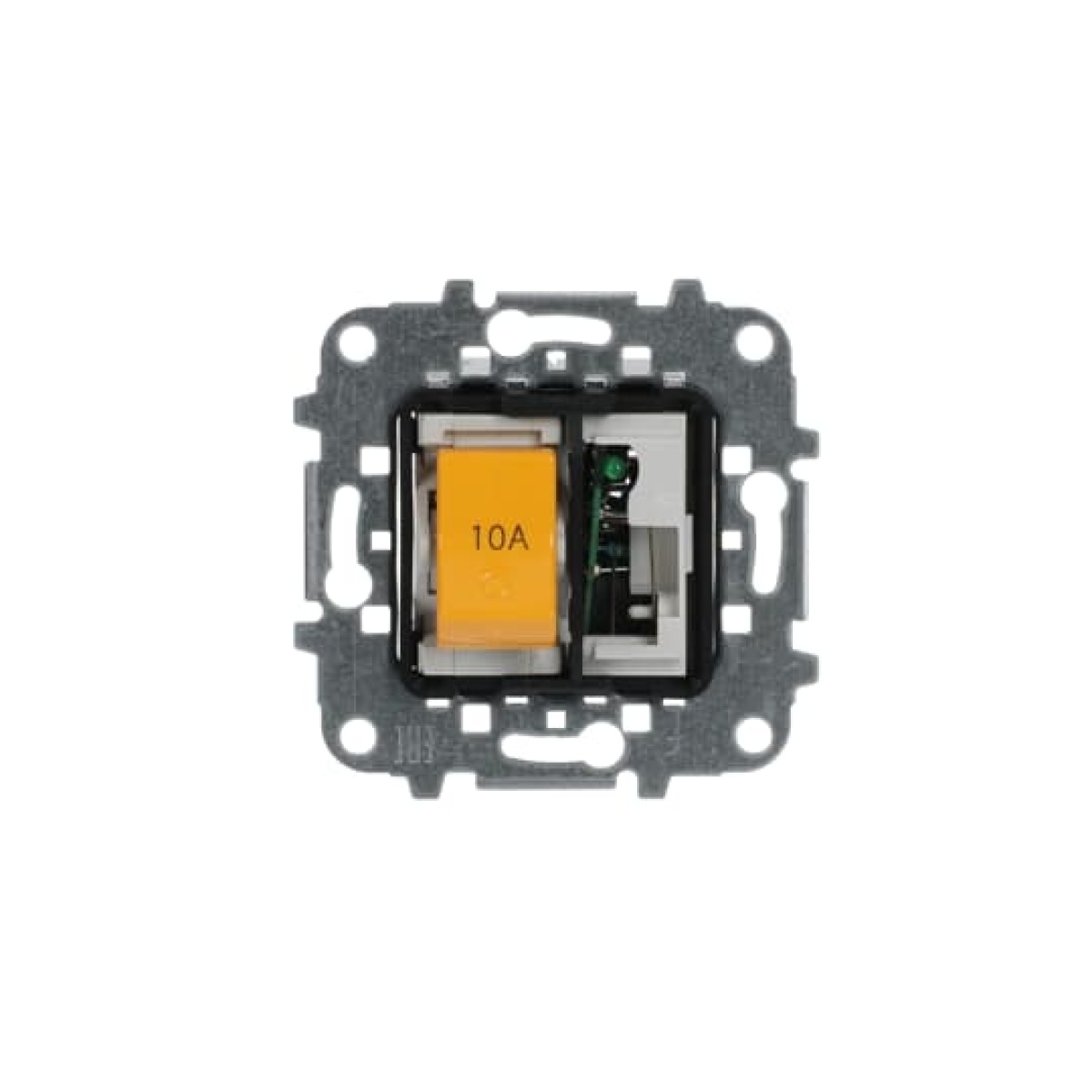

Built-in Device Circuit breaker 1P - Platform 8100
Nortécnica Ref:
EAN:
8427238044149
Description
Technical Information
Attributes
Number of switch positions
2
Corrente permanente nominal Iu
-
Número de polos
1
With zero off position
Yes
With retraction in 0-position
No
Largura em número de módulos
-
Degree of protection IP, front side
IP20
Type of switch
-
Type of control element
Rocker
Front shield size
-
EF007243
No
EF007246
-
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Complete device in housing
Yes
Max. rated operation voltage Ue AC
230
Device construction
Built-in device
Degree of protection NEMA, front side
-
Brands
ABB
Descrição Longa
Rated voltage: 120 - 230 Vac; 50/60 Hz
Rated current: 10A
Braking capacity: 3.000A
Residual current (sensitivity - I∆n): 10 mA
C type magneto-thermic protection
A type residual current protection
Two-pole (1P + N) with 1 protected pole
Without fixing claws
Cover plate code: 8534, 8434, 8234 & 5534
