Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva General Code, the pair forms a low level coded non-contact safety sensor. 4 pcs of DA 2B spacer rings are included. Coated PCBA for extra protection in demanding environments.
Electromechanical and Electronic Sensors

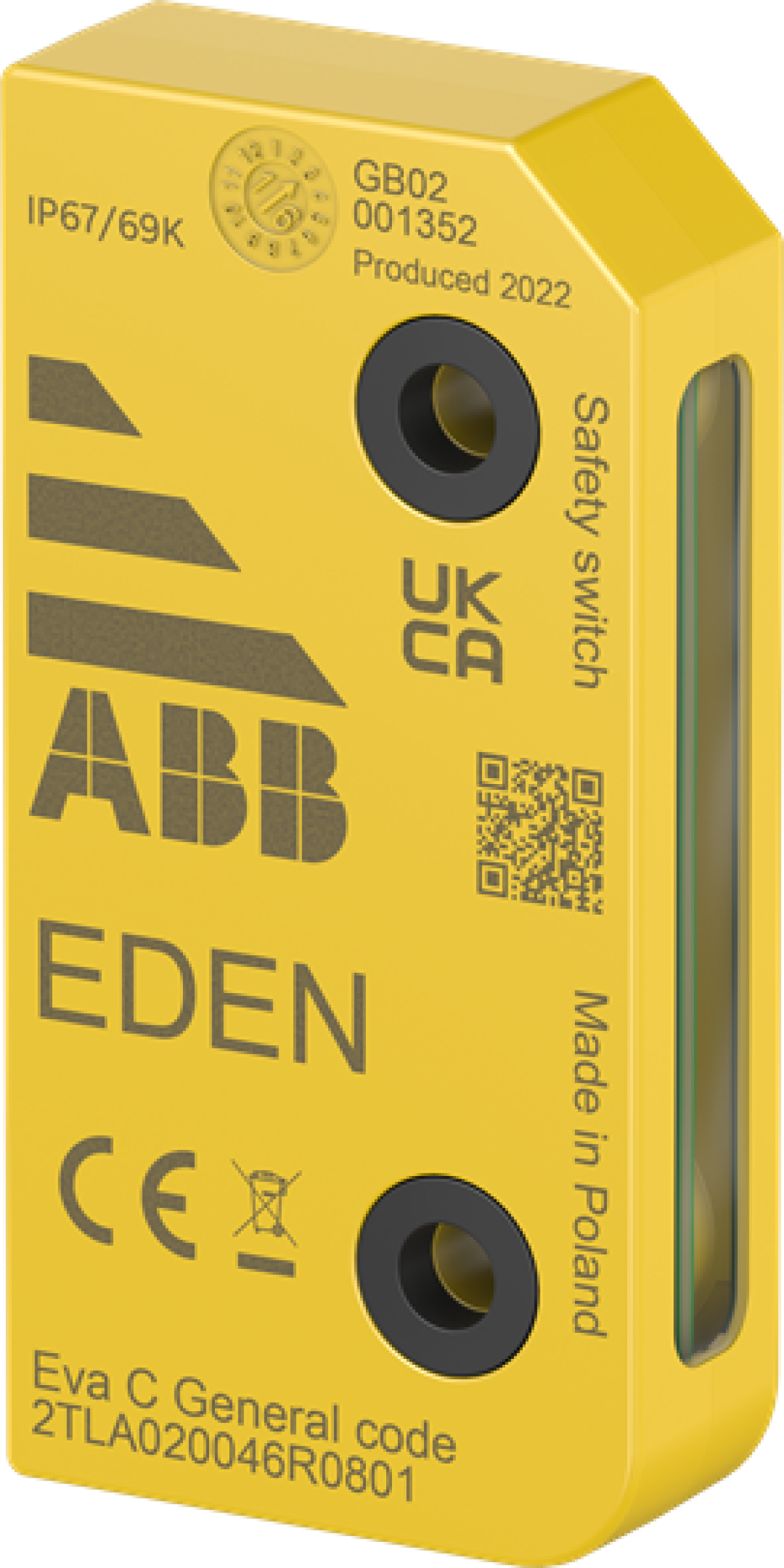

Eva C General code Actuator
Nortécnica Ref:
EAN:
7350024486575
Description
Technical Information
Attributes
Voltage type
-
Housing material
Plastic
Suitable for safety functions
Yes
Coating housing
Uncoated
With status indication
No
Ambient temperature
-40
70
Switching distance
15
Número de saídas semicondutoras com função de sinalização
-
Número de saídas energizadas por contato com função de sinalização
-
Número de saídas semicondutoras protegidas
-
Número de saídas energizadas por contato protegido
-
Type of interface for safety communication
-
Type of electric connection
Other
Type of switching output
Other
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
EV006688
Protected switch distance OFF
25
Protected switch distance ON
10
Corrente de saída max. na saída protegida
-
Mechanical mounting condition for sensor
Not flat
Min. output current
-
With monitoring function downstream switching devices
-
Cross-short circuit identification possible
Yes
Degree of protection IP
IP67
Type of actuation
Transponder
Rated supply voltage AC 50 Hz
-
-
Rated supply voltage AC 60 Hz
-
-
Rated supply voltage DC
-
-
Sensor de largura
30
Sensor de diâmetro
-
Altura do sensor
60
Comprimento do sensor
12
Performance level according to EN ISO 138491
Level e
SIL according to IEC 61508
3
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva General Code, the pair forms a low level coded non-contact safety sensor. 4 pcs of DA 2B spacer rings are included. Coated PCBA for extra protection in demanding environments.
