Safety lock GKey with 4 positions for pilot devices, die-cast housing, escape release and manual unlock function. Can be mounted on hinged doors and on sliding doors, both on the left and on the right. Delivered with mechanical tongue actuator, RFID actuator, entry cover and screw bit. GKey is a robust safety lock with a die cast housing for hinged and sliding doors. GKey offers an interlocking function reaching up to PL e/SIL 3 with high level coding. Power is needed to unlock GKey which makes GKey a safety lock. GKey is fitted with a rear escape release button and manual unlocking (auxiliary release). GKey offers four positions for 22 mm pilot devices.
Electromechanical and Electronic Sensors

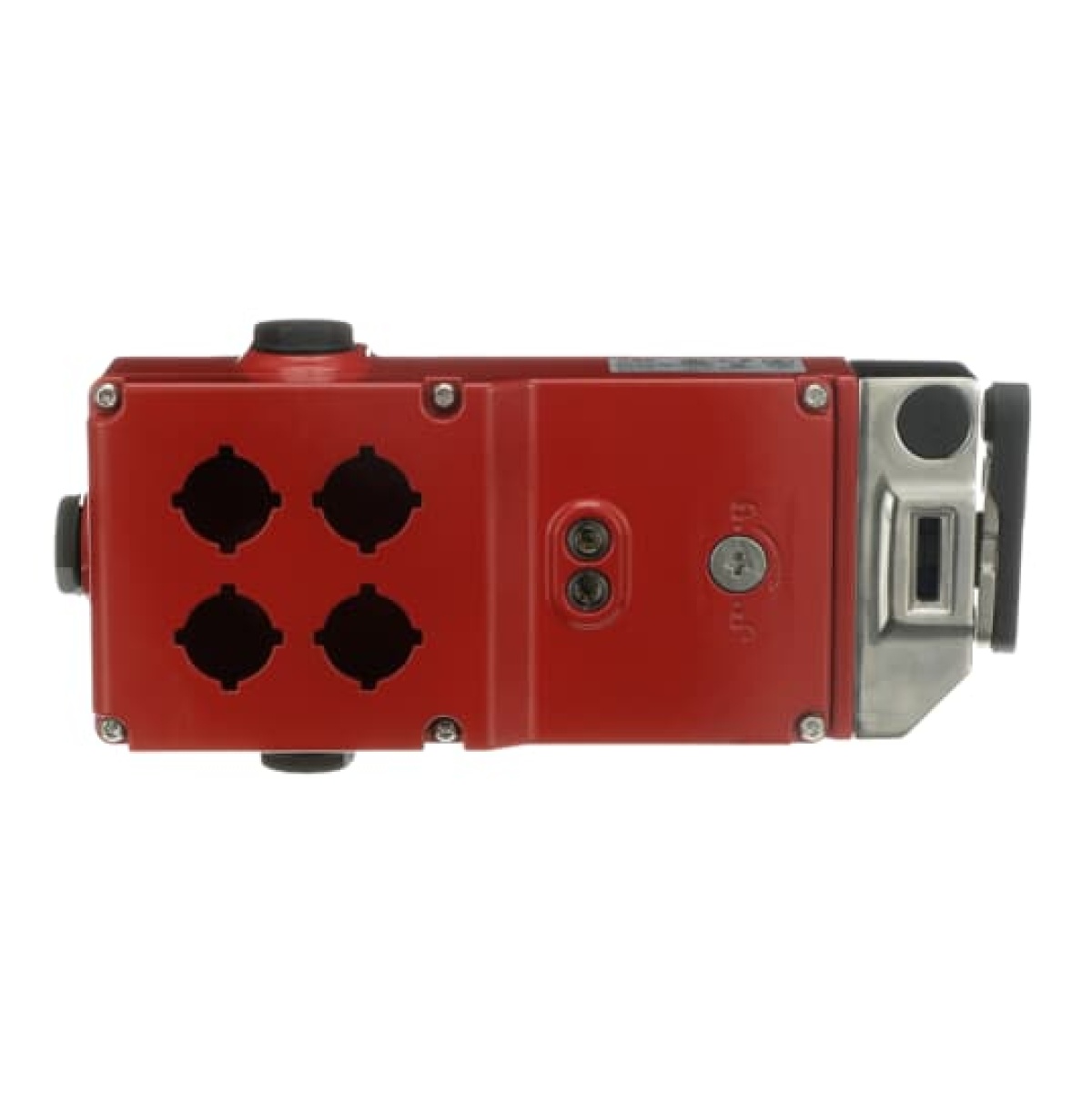

GKey4 RU Lock, complete
Nortécnica Ref:
EAN:
7350024484526
Description
Technical Information
Attributes
Corrente nominal de operação Ie em AC-15, 230 V
3
Corrente nominal de operação Ie em DC-13, 230 V
-
Housing material
-
Suitable for safety functions
Yes
Coating housing
Powder coating
With status indication
Yes
Type of switching contact
Other
Type of interface for safety communication
Other
Type of electric connection
Other
Explosion safety category for gas
-
Explosion safety category for dust
-
Construction type housing
EV006688
Degree of protection IP
IP65
Número de contatos auxiliares de segurança
-
Type of interface
Other
Rated control supply voltage magnet drive AC 50 Hz
-
-
Rated control supply voltage magnet drive AC 60 Hz
-
-
Rated control supply voltage magnet drive DC
24
24
Corrente nominal de operação em AC-15, 125 V
3
Corrente nominal de operação em AC-15, 24 V
3
Corrente nominal de operação em DC-13, 125 V
-
Corrente nominal de operação em DC-13, 24 V
0.2
Sensor de largura
231
With escape release
Yes
Altura do sensor
103
Comprimento do sensor
154
Ambient temperature during operating
-25
40
Força de bloqueio de guarda
3000
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
4
Number of contacts as change-over contact
-
Degree of protection NEMA
1
With auxiliary release
Yes
Type of guard locking
-
Brands
ABB
Descrição Longa
Safety lock GKey with 4 positions for pilot devices, die-cast housing, escape release and manual unlock function. Can be mounted on hinged doors and on sliding doors, both on the left and on the right. Delivered with mechanical tongue actuator, RFID actuator, entry cover and screw bit.
GKey is a robust safety lock with a die cast housing for hinged and sliding doors. GKey offers an interlocking function reaching up to PL e/SIL 3 with high level coding. Power is needed to unlock GKey which makes GKey a safety lock. GKey is fitted with a rear escape release button and manual unlocking (auxiliary release). GKey offers four positions for 22 mm pilot devices.
