LS20M91B11-U01 is a 30 mm wide, compact Limit Switch made of zinc alloy material (Zamak), with 2 mounting holes at the top, a prewired UL62 - PVC cable (1 m) on the side, multidirectional stainless steel spring actuator with rigid end and 1 N.O + 1 N.C snap action (Zb type) contacts
Electromechanical and Electronic Sensors

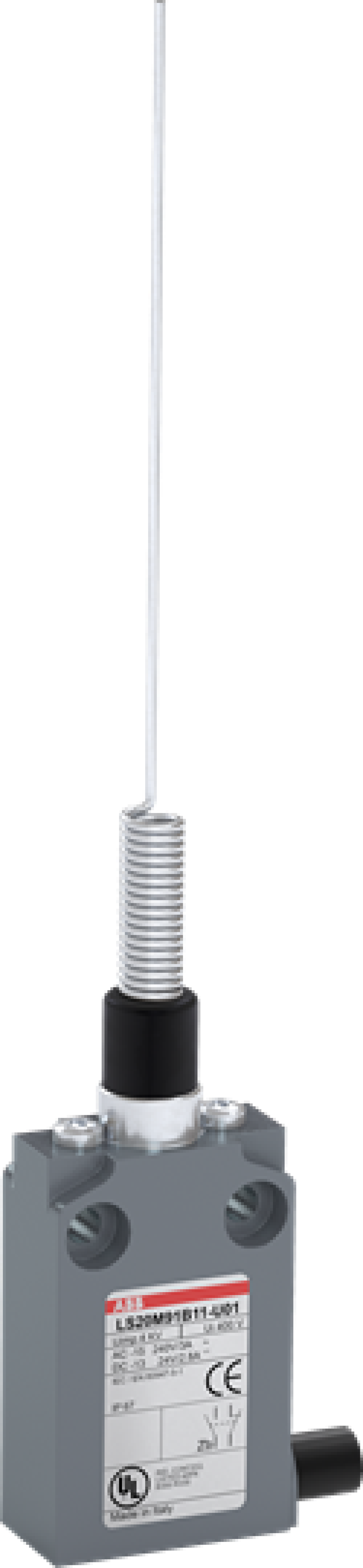

LS20M91B11-U01 Limit Switch
Nortécnica Ref:
EAN:
3471522637796
Description
Technical Information
Attributes
Switching function
Quick-break switch
Corrente nominal de operação Ie em AC-15, 230 V
3
Corrente nominal de operação Ie em DC-13, 230 V
0.27
Housing material
Metal
Suitable for safety functions
No
Coating housing
Powder coating
With status indication
No
Type of interface for safety communication
None
Type of electric connection
With cable preassembled
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Degree of protection IP
IP67
Forced opening
No
Número de contatos auxiliares de segurança
0
Type of control element
Plunger
Type of interface
None
Output electronic
No
Corrente nominal de operação em AC-15, 125 V
5.5
Corrente nominal de operação em AC-15, 24 V
10
Corrente nominal de operação em DC-13, 125 V
0.55
Corrente nominal de operação em DC-13, 24 V
2.8
Sensor de largura
30
Sensor de diâmetro
0
Altura do sensor
182
Comprimento do sensor
16
Switching function latching
No
Ambient temperature during operating
-25
70
Número de contatos como contato normalmente fechado
1
Número de contatos como contato normalmente aberto
1
Número de contatos como inversores
0
Alignment of the control element
Other
Degree of protection NEMA
6
Brands
ABB
Descrição Longa
LS20M91B11-U01 is a 30 mm wide, compact Limit Switch made of zinc alloy material (Zamak), with 2 mounting holes at the top, a prewired UL62 - PVC cable (1 m) on the side, multidirectional stainless steel spring actuator with rigid end and 1 N.O + 1 N.C snap action (Zb type) contacts
