LS20P41B11-U01 is a 30 mm wide, compact Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, a prewired UL62 - PVC cable (1 m) on the side, plastic roller lever (Ø14 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts
Electromechanical and Electronic Sensors

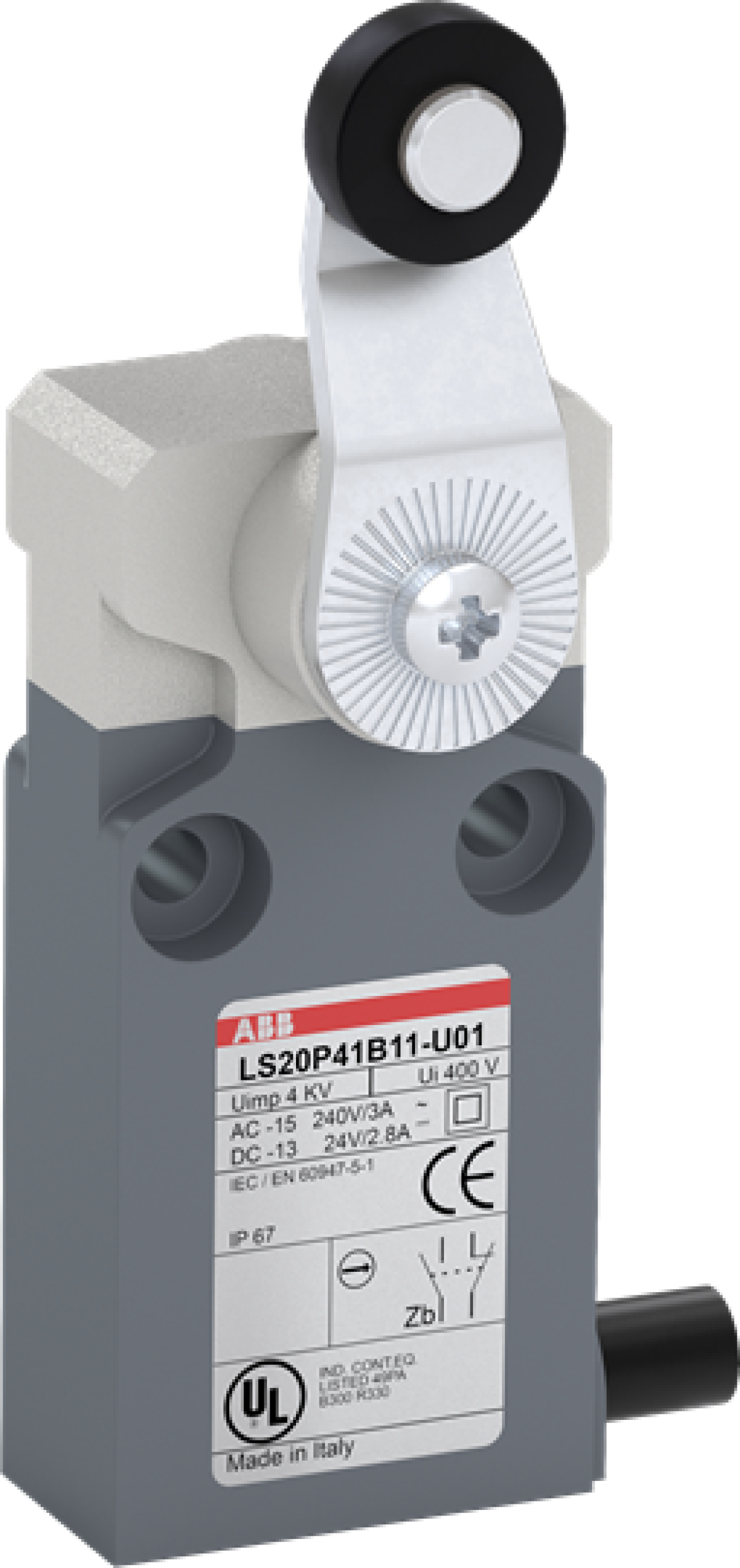

LS20P41B11-U01 Limit Switch
Nortécnica Ref:
EAN:
3471522640796
Description
Technical Information
Attributes
Switching function
Quick-break switch
Corrente nominal de operação Ie em AC-15, 230 V
3
Corrente nominal de operação Ie em DC-13, 230 V
0.27
Housing material
Plastic
Suitable for safety functions
No
Coating housing
Other
With status indication
No
Type of interface for safety communication
None
Type of electric connection
With cable preassembled
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Degree of protection IP
IP67
Forced opening
No
Número de contatos auxiliares de segurança
0
Type of control element
Plunger
Type of interface
None
Output electronic
No
Corrente nominal de operação em AC-15, 125 V
5.5
Corrente nominal de operação em AC-15, 24 V
10
Corrente nominal de operação em DC-13, 125 V
0.55
Corrente nominal de operação em DC-13, 24 V
2.8
Sensor de largura
30
Sensor de diâmetro
0
Altura do sensor
92
Comprimento do sensor
29
Switching function latching
No
Ambient temperature during operating
-25
70
Número de contatos como contato normalmente fechado
1
Número de contatos como contato normalmente aberto
1
Número de contatos como inversores
0
Alignment of the control element
Other
Degree of protection NEMA
6
Brands
ABB
Descrição Longa
LS20P41B11-U01 is a 30 mm wide, compact Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, a prewired UL62 - PVC cable (1 m) on the side, plastic roller lever (Ø14 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts
