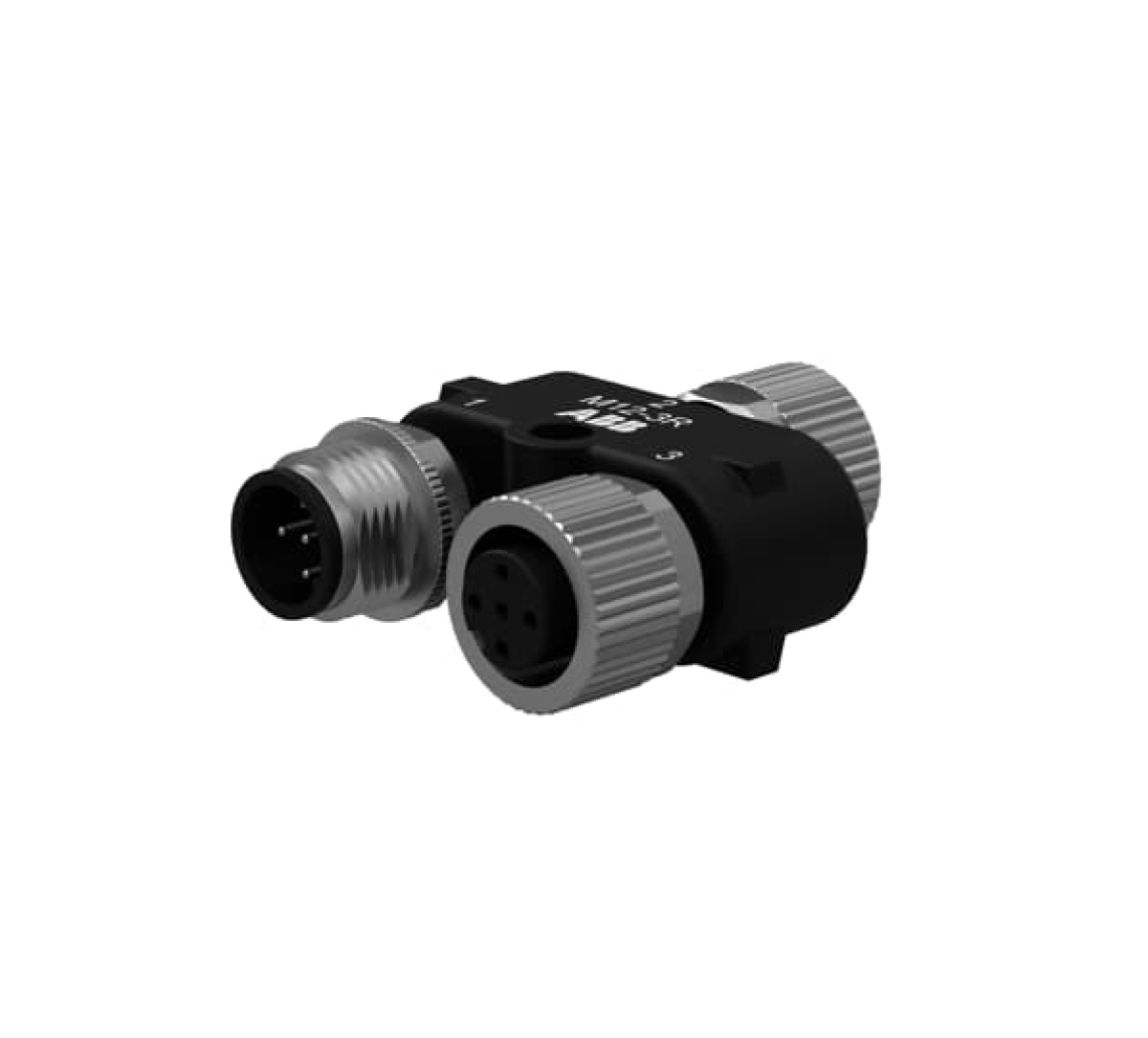

M12 Y-connector for connection of a reset light button to Orion1 Base (M12-CTO1BM necessary), Orion 2 Base/Extended, Orion3 Base (M12-CTO3B necessary) and Orion3 Extended. One M12-8 female connector (#2) for connecting Orion, one M12-5 male connector (#1) for connecting +24 VDC, 0 V and the OSSD signals and one M12-5 female connector (#3) for connecting a reset light button like Smile.
Electromechanical and Electronic Sensors
M12-3R Connection accessory
Nortécnica Ref:
EAN:
7350024482942
Description
Technical Information
Attributes
Halogen free
-
Cable type
-
EF000228
24
Cable length
-
Screened
-
Number of poles
0
Permitted cable outer temperature during assemblinghandling
-
-
Permitted cable outer temperature after assembling without vibration
-
-
Resistência de continuidade
-
Material of contact surface
Other
Vulcanized
-
Material of cable sheath
Other
Degree of protection IP
Other
Type of electrical connection boxsided
Other
Type of electrical connection fieldsided
-
Positioning cable feed boxsided
Other
Positioning cable feed fieldsided
-
With LED indication
Yes
Type of plugin contact field sided
-
Material contact body
Other
Colour cable sheath
Other
Rated current In
-
Type of plugin contact boxsided
-
Brands
ABB
Descrição Longa
M12 Y-connector for connection of a reset light button to Orion1 Base (M12-CTO1BM necessary), Orion 2 Base/Extended, Orion3 Base (M12-CTO3B necessary) and Orion3 Extended. One M12-8 female connector (#2) for connecting Orion, one M12-5 male connector (#1) for connecting +24 VDC, 0 V and the OSSD signals and one M12-5 female connector (#3) for connecting a reset light button like Smile.
