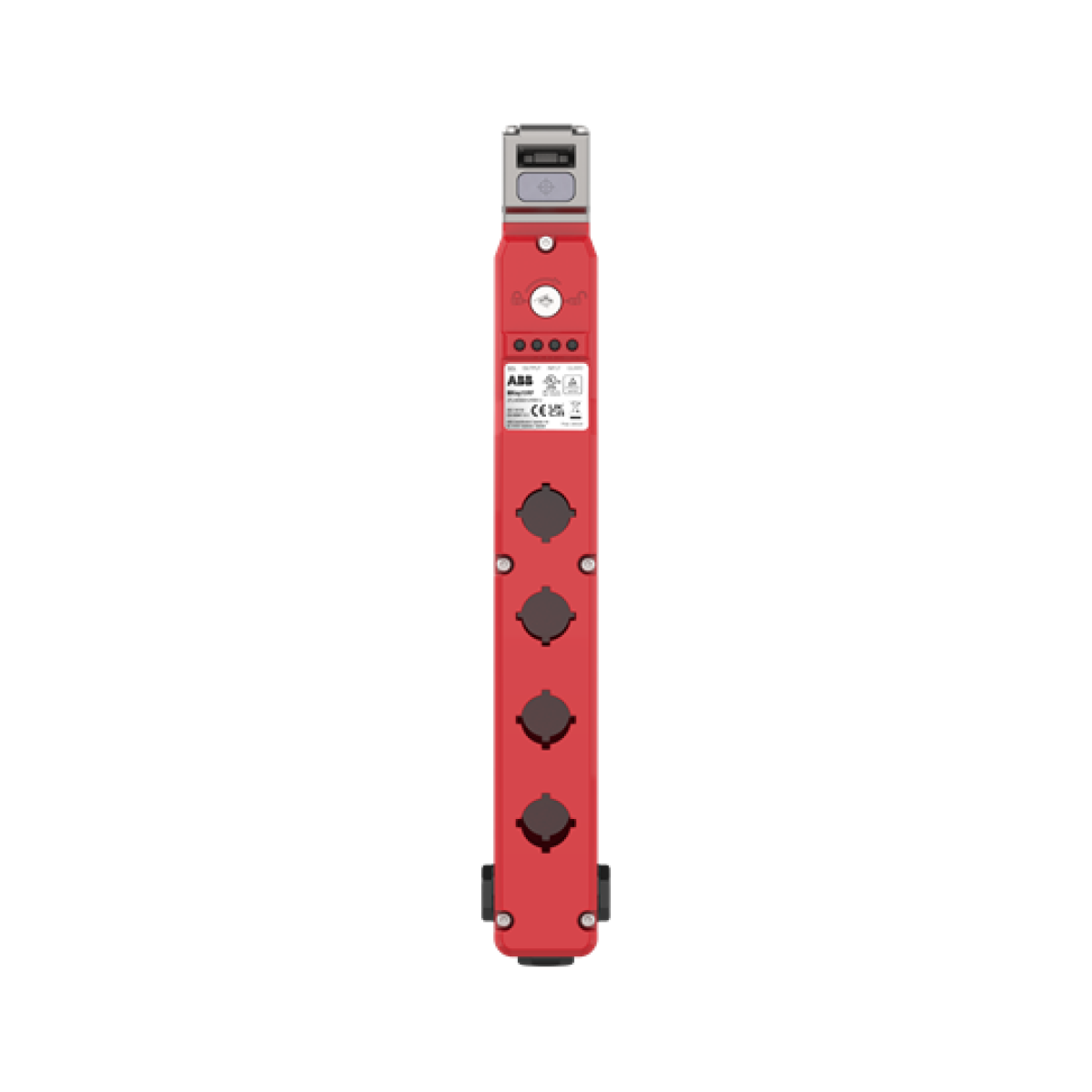

MKey10RF Die-cast M20 Switch
Electromechanical and Electronic Sensors
MKey10RF Die-cast M20 Switch
Nortécnica Ref:
EAN:
7350024486896
Description
Technical Information
Attributes
Rated operation current Ie at AC-15, 230 V
-
Rated operation current Ie at DC-13, 230 V
-
Housing material
Metal
Suitable for safety functions
Yes
Coating housing
Powder coating
With status indication
Yes
Type of switching contact
Other
Type of interface for safety communication
Other
Type of electric connection
Other
Explosion safety category for gas
-
Explosion safety category for dust
-
Construction type housing
EV006688
Degree of protection IP
IP65
Number of safety auxiliary contacts
-
Type of interface
Other
Rated control supply voltage magnet drive AC 50 Hz
-
-
Rated control supply voltage magnet drive AC 60 Hz
-
-
Rated control supply voltage magnet drive DC
24
24
Rated operation current Ie at AC-15, 125 V
-
Rated operation current Ie at AC-15, 24 V
-
Rated operation current Ie at DC-13, 125 V
-
Rated operation current Ie at DC-13, 24 V
-
Width sensor
47
With escape release
No
Height of sensor
380
Length of sensor
57
Ambient temperature during operating
-25
40
Guard locking force
3000
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
-
Degree of protection NEMA
1
With auxiliary release
Yes
Type of guard locking
-
Brands
ABB
