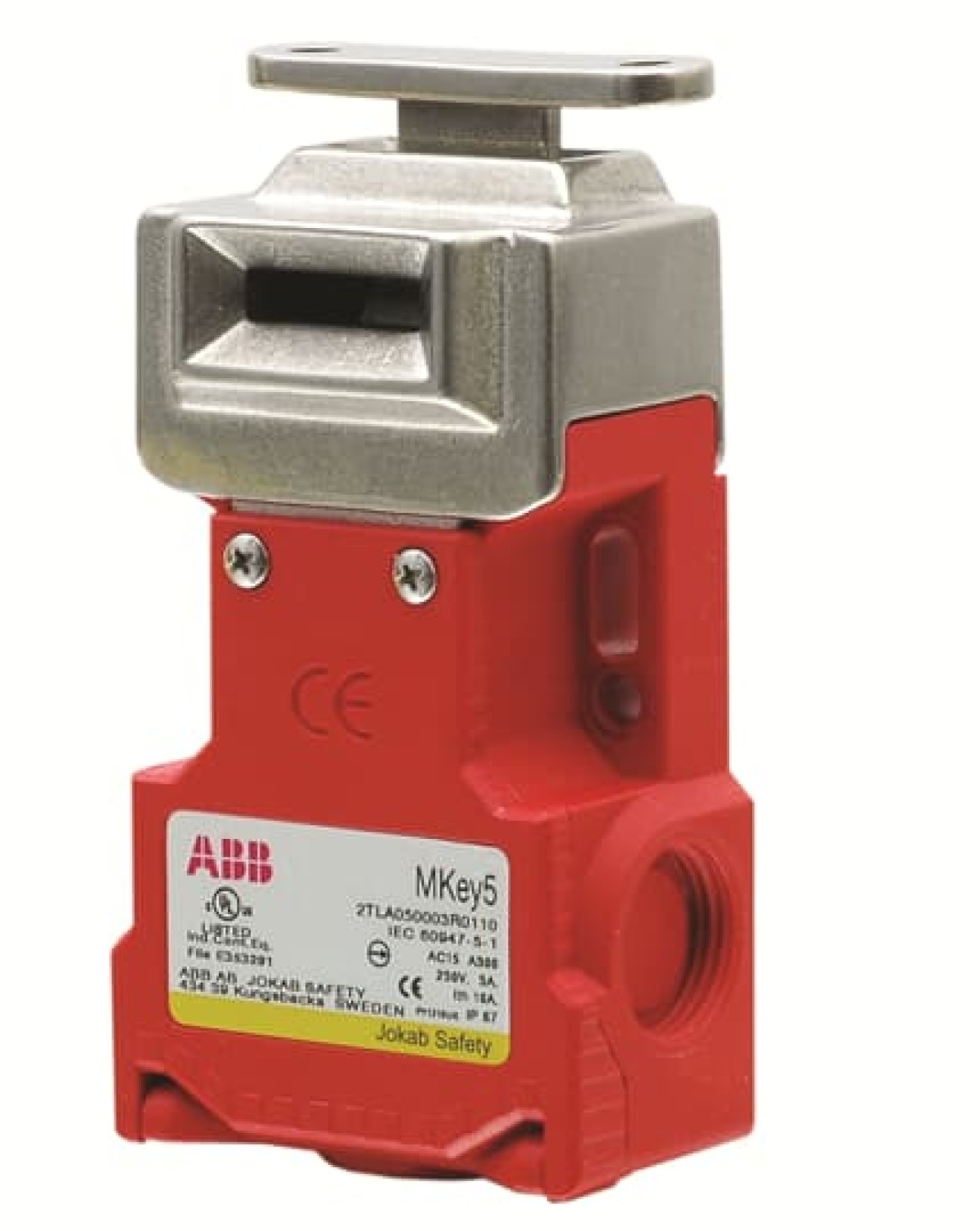

Safety interlock switch, plastic body and stainless steel head, 40N holding force. 2NO+1NC guard open. 3xM20 conduits entries. Delivered with standard key. MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Electromechanical and Electronic Sensors
MKey5 SSH Switch
Nortécnica Ref:
EAN:
7350024466300
Description
Technical Information
Attributes
Rated operation current Ie at AC-15, 230 V
3
Rated operation current Ie at DC-13, 230 V
0.2
Housing material
Plastic
Suitable for safety functions
Yes
Coating housing
Other
With status indication
No
Type of switching contact
Other
Type of interface for safety communication
Other
Type of electric connection
-
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
EV006688
Degree of protection IP
IP67
Forced opening
Yes
Number of safety auxiliary contacts
0
Type of interface
Other
Rated operation current Ie at AC-15, 125 V
3
Rated operation current Ie at AC-15, 24 V
3
Rated operation current Ie at DC-13, 125 V
0.2
Rated operation current Ie at DC-13, 24 V
0.2
Width sensor
58
Height of sensor
100.4
Length of sensor
34.5
Ambient temperature during operating
-25
80
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Degree of protection NEMA
1
Brands
ABB
