Solenoid safety switch with RFID technology reaching PL e or SIL 3 for the interlock function, stainless steel housing and stainless steel head, 3xM20 conduit entries, 24 V DC power to unlock. Safe lock function reaching PL e or SIL 3 in combination with a suitable accessory. Two safe OSSD inputs and two safe OSSD outputs. Delivered without RFID key. MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
Electromechanical and Electronic Sensors

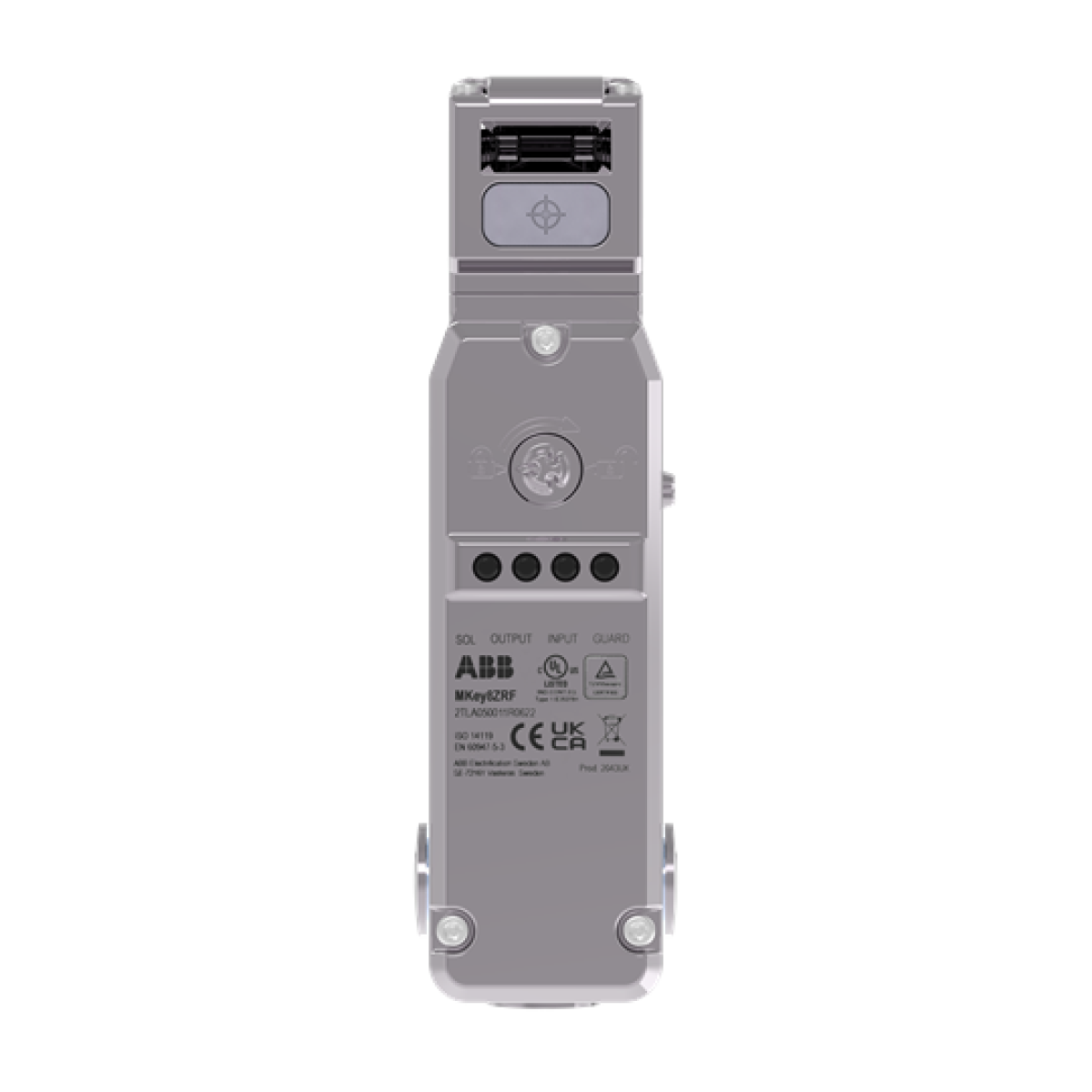

MKey8ZRF SS M20 Switch
Nortécnica Ref:
EAN:
7350024486872
Description
Technical Information
Attributes
Corrente nominal de operação Ie em AC-15, 230 V
-
Corrente nominal de operação Ie em DC-13, 230 V
-
Housing material
Metal
Suitable for safety functions
Yes
Coating housing
Uncoated
With status indication
Yes
Type of switching contact
Other
Type of interface for safety communication
Other
Type of electric connection
Other
Explosion safety category for gas
-
Explosion safety category for dust
-
Construction type housing
EV006688
Degree of protection IP
Other
Número de contatos auxiliares de segurança
-
Type of interface
Other
Rated control supply voltage magnet drive AC 50 Hz
-
-
Rated control supply voltage magnet drive AC 60 Hz
-
-
Rated control supply voltage magnet drive DC
24
24
Corrente nominal de operação em AC-15, 125 V
-
Corrente nominal de operação em AC-15, 24 V
-
Corrente nominal de operação em DC-13, 125 V
-
Corrente nominal de operação em DC-13, 24 V
-
Sensor de largura
48
With escape release
No
Altura do sensor
191
Comprimento do sensor
52
Ambient temperature during operating
-25
40
Força de bloqueio de guarda
3000
Número de contatos como contato normalmente fechado
0
Número de contatos como contato normalmente aberto
0
Número de contatos como inversores
-
Degree of protection NEMA
1
With auxiliary release
Yes
Type of guard locking
-
Brands
ABB
Descrição Longa
Solenoid safety switch with RFID technology reaching PL e or SIL 3 for the interlock function, stainless steel housing and stainless steel head, 3xM20 conduit entries, 24 V DC power to unlock. Safe lock function reaching PL e or SIL 3 in combination with a suitable accessory. Two safe OSSD inputs and two safe OSSD outputs. Delivered without RFID key.
MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
