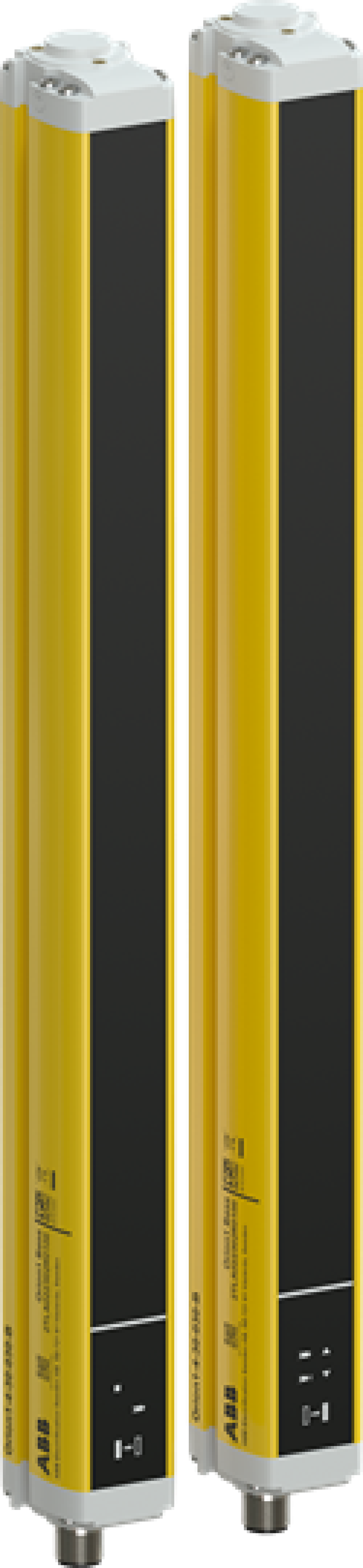

Orion1-4-30-030-B Safety light curtain
Electromechanical and Electronic Sensors
Orion1-4-30-030-B Safety light curtain
Nortécnica Ref:
EAN:
7350024481518
Description
Technical Information
Attributes
Voltage type
DC
Cascadable
No
Suitable for safety functions
Yes
Ambient temperature
0
55
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
2
Number of protected contact energized outputs
0
Fade-out possible
No
Type of interface for safety communication
Other
Type of switching output of the OSSD
PNP
Type of electric connection
Connector M12
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
0
24
Operation agent-safety class
Safety class 3
Detection capability for test bodies
30
Explosion safety category for gas
None
Explosion safety category for dust
None
Scope of delivery of the one-way system
Transmitter and receiver
Max. output current at protected output
500
With monitoring function downstream switching devices
Yes
With restart blockage
Yes
With muting function
No
Override possible
No
Response time
11
Reduced resolution
No
Transmission range of the safety field
19
Switching voltage of OSSD at state "high"
24
Safety field height
300
Type of safety according to IEC 61496-1
4
With beam coding
No
Clock control possible
No
Wavelength of the sensor
950
Degree of protection IP
IP65
Resolution of the light curtain
30
Width sensor
32.3
Height of sensor
6.4
Length of sensor
36.9
Degree of protection NEMA
-
Brands
ABB
