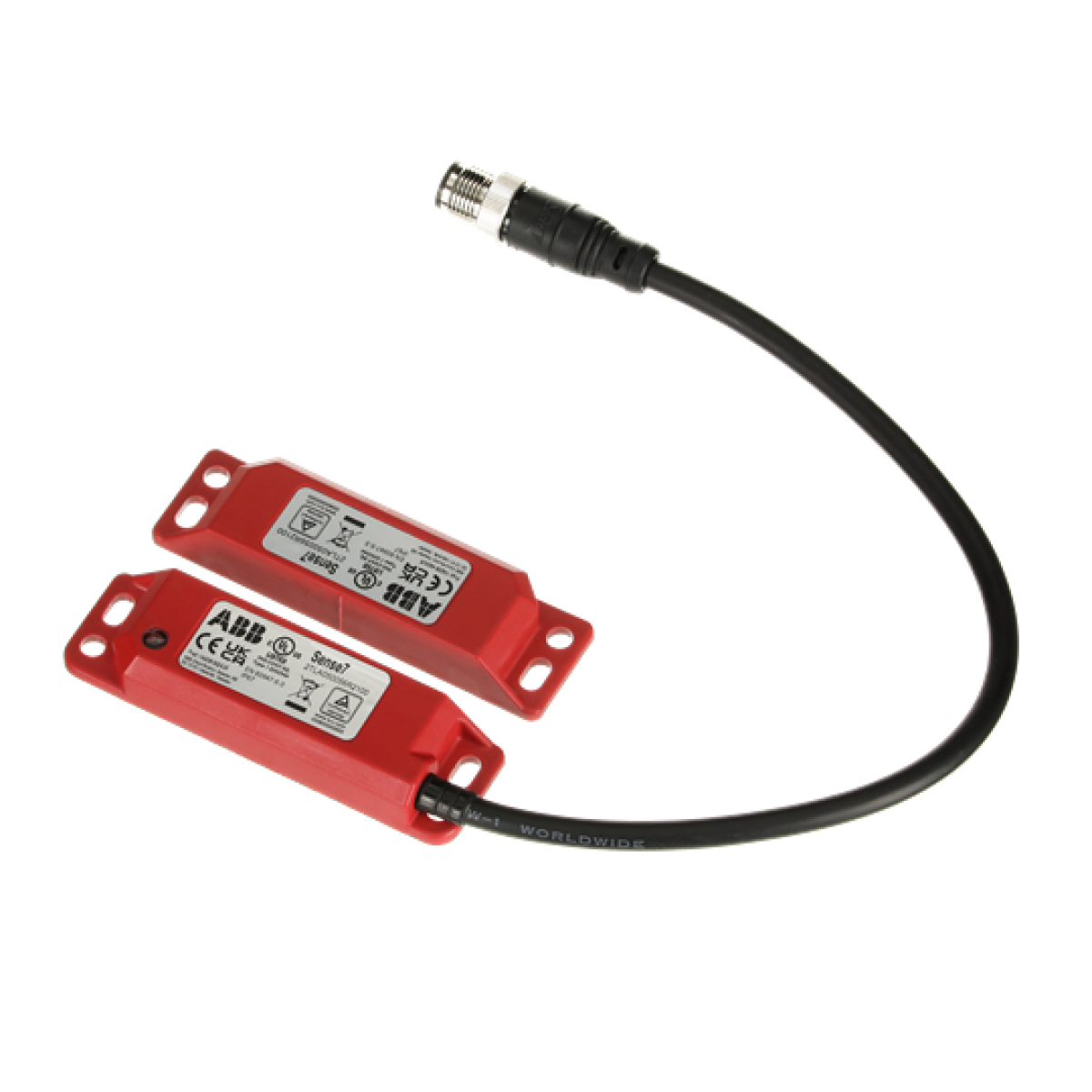

Sense7 M12 Sensor
Electromechanical and Electronic Sensors
Sense7 M12 Sensor
Nortécnica Ref:
272TLA050056R2100
EAN:
7350024466713
Description
Technical Information
Attributes
Voltage type
DC
Housing material
Other
Suitable for safety functions
Yes
Coating housing
Other
With status indication
Yes
Ambient temperature
-25
50
Switching distance
5
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
-
Number of protected semiconductor outputs
2
Number of protected contact energized outputs
-
Type of interface for safety communication
Other
Type of electric connection
Connector M12
Type of switching output
PNP
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
EV006688
Protected switch distance OFF
20
Protected switch distance ON
8
Max. output current at protected output
0.2
Mechanical mounting condition for sensor
Not flat
Min. output current
10
With monitoring function downstream switching devices
No
Cross-short circuit identification possible
Yes
Degree of protection IP
IP67
Type of actuation
Magnet
Rated supply voltage AC 50 Hz
-
-
Rated supply voltage AC 60 Hz
-
-
Rated supply voltage DC
24
24
Width sensor
50
Diameter sensor
-
Height of sensor
88
Length of sensor
13
Performance level according to EN ISO 13849-1
Level e
SIL according to IEC 61508
3
Degree of protection NEMA
-
Brands
ABB
