Safety magnetic switch complete with actuator, 2NC+1NO (guard closed and actuator present), stainless steel, LED, 2m cable (8 leads). Sense7 is a coded magnetic non-contact switch for interlocking gates and hatches, or other moveable parts. Sense7 has a stainless steel housing that is designed for harsh environments and extreme temperatures. Sense7 offers an interlocking function reaching up to PL e/SIL3 with low level coding. +105°C is accepted for short duration during CIP/SIP cleaning.
Electromechanical and Electronic Sensors

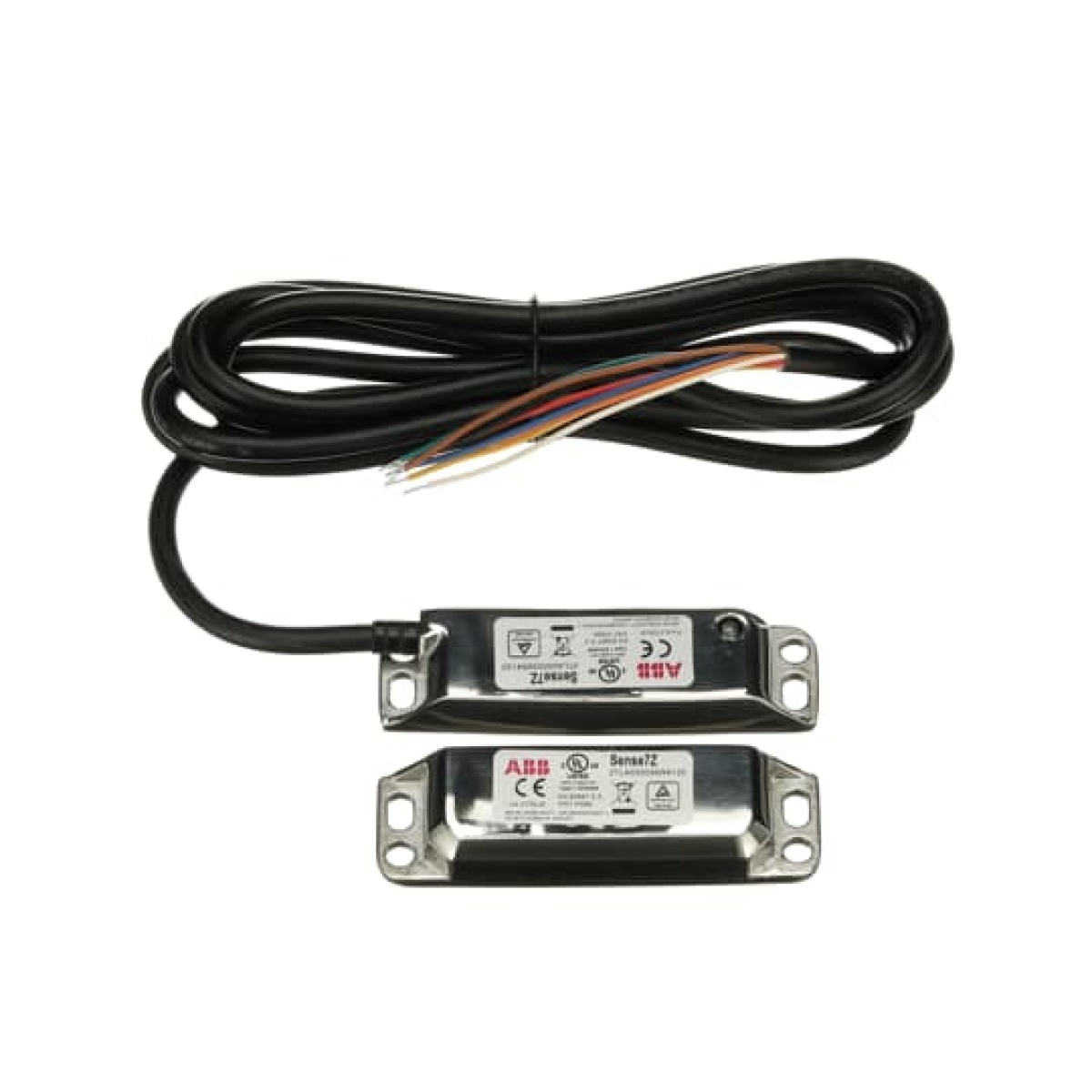

Sense7Z 2M Sensor
Nortécnica Ref:
EAN:
7350024466720
Description
Technical Information
Attributes
Voltage type
DC
Housing material
Stainless steel
Suitable for safety functions
Yes
Coating housing
Uncoated
With status indication
Yes
Ambient temperature
-25
70
Switching distance
5
Número de saídas semicondutoras com função de sinalização
-
Número de saídas energizadas por contato com função de sinalização
-
Número de saídas semicondutoras protegidas
3
Número de saídas energizadas por contato protegido
-
Type of interface for safety communication
Other
Type of electric connection
Cable
Type of switching output
PNP
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
EV006688
Protected switch distance OFF
20
Protected switch distance ON
8
Corrente de saída max. na saída protegida
0.2
Mechanical mounting condition for sensor
Not flat
Min. output current
10
With monitoring function downstream switching devices
No
Cross-short circuit identification possible
Yes
Degree of protection IP
IP67
Type of actuation
Magnet
Rated supply voltage AC 50 Hz
-
-
Rated supply voltage AC 60 Hz
-
-
Rated supply voltage DC
24
24
Sensor de largura
80
Sensor de diâmetro
-
Altura do sensor
50
Comprimento do sensor
14
Performance level according to EN ISO 138491
Level e
SIL according to IEC 61508
3
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
Safety magnetic switch complete with actuator, 2NC+1NO (guard closed and actuator present), stainless steel, LED, 2m cable (8 leads).
Sense7 is a coded magnetic non-contact switch for interlocking gates and hatches, or other moveable parts. Sense7 has a stainless steel housing that is designed for harsh environments and extreme temperatures. Sense7 offers an interlocking function reaching up to PL e/SIL3 with low level coding.
+105°C is accepted for short duration during CIP/SIP cleaning.
