Tina 2A is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 2A is mounted directly on the device enclosure to a M20 cable entry. Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.
Electromechanical and Electronic Sensors

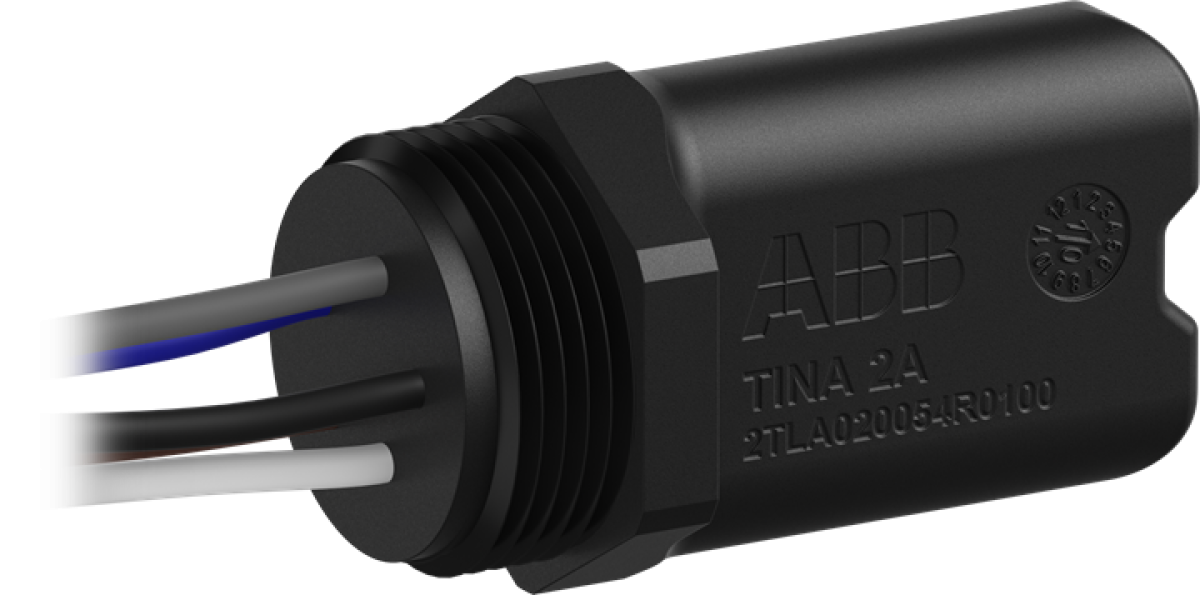

Tina 2A DYNlink adapter
Nortécnica Ref:
EAN:
7350024451832
Description
Technical Information
Attributes
Largura
43
Altura
24
Housing colour
Black
Tensão especificada de funcionamento
24
Comprimento
24
Housing material
Plastic
Operating temperature
-10
55
With potential separation
No
Operating voltage
24
24
Explosion safety category for gas
None
Explosion safety category for dust
None
Material of contact surface
Gold
Max. current carrying capacity per IO signal
2
Max. current carrying capacity per socket
2
Max. total current
2
Degree of protection IP
IP67
With LED indication
No
Pollution degree
2
Connection for NPN-sensors
No
Number of channels per connector slot
1
Number of sensor-actuator-slots
1
Type of branches for sensor-actuator cables
M12
Thread sleeves sensoractuator slots
M12
Cable outer diameter for cable gland
-
-
Diameter contact female
-
Number of poles sensoractuator slots
5
Fix cable version suitable for cable guide chain
No
Type of connector for trunk line
M12
Material insulation body
PBT
Connectable conductor cross section
-
-
Material contact body
Copper
Brands
ABB
Descrição Longa
Tina 2A is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 2A is mounted directly on the device enclosure to a M20 cable entry.
Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.
