The CM-ENE MAX belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 24 V AC and has a 1 n/o output contact. It monitors liquid levels of conductive fluids and protects tanks against overflow. The output relay works according to the closed-circuit principle. The sensitivity is 0-100 kOhm fixed. The device offers screw connection terminals.
Industrial Relays

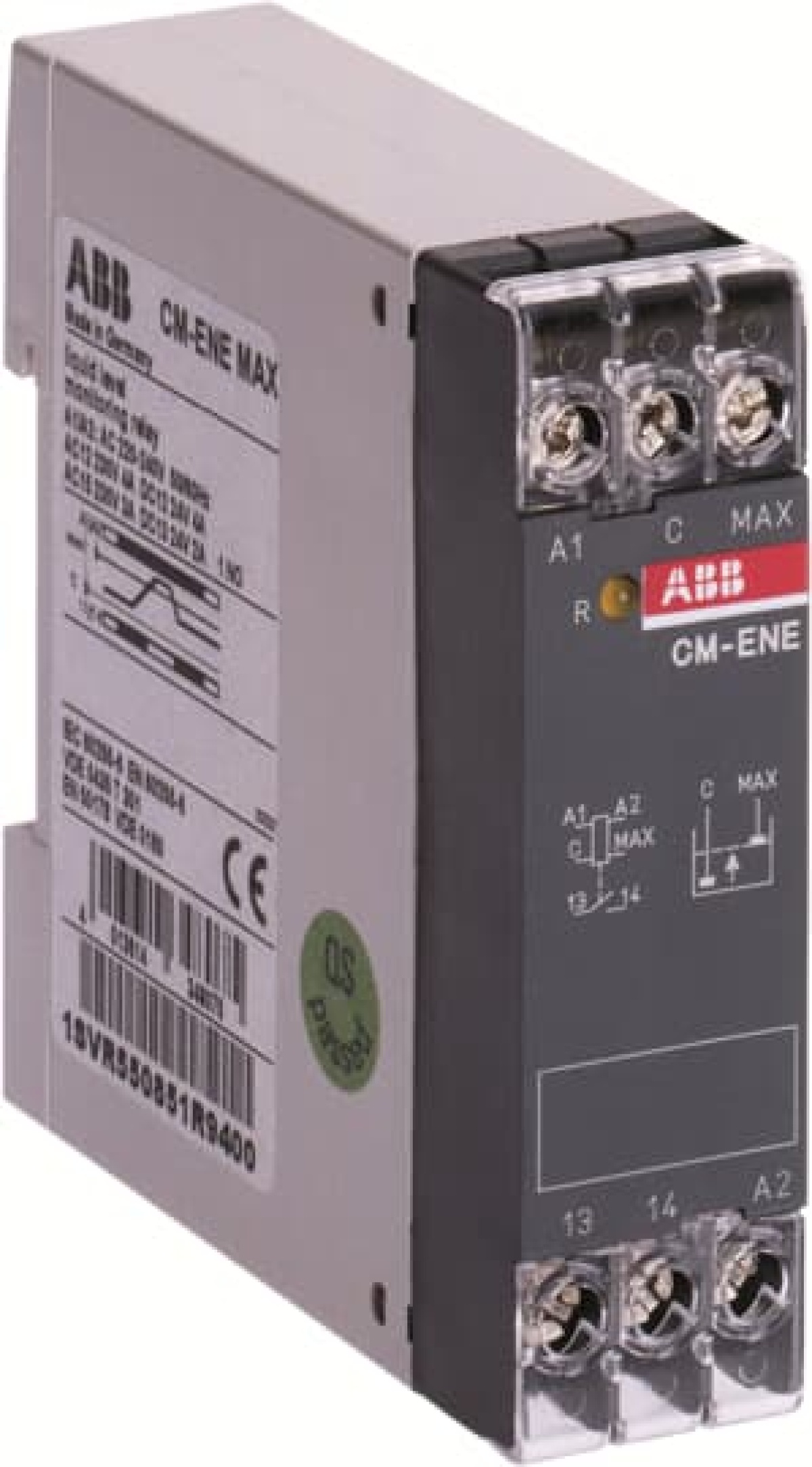

CM-ENE MAX Liquid level relay 1no, 24VAC
Nortécnica Ref:
EAN:
4013614348099
Description
Technical Information
Attributes
Width
22.5
Height
78
Depth
78.5
Cascadable
No
Voltage type supply voltage
AC
With detachable clamps
No
Número de entradas de elétrodos
2
Response value sensitivity adjustable
Yes
Type of electric connection
Screw connection
Voltage type operating voltage
AC
Rated switch current
4
Supply voltage AC 50 Hz
24
24
Supply voltage AC 60 Hz
24
24
Supply voltage DC
-
-
Tempo de atraso da max. permitido
0
Tempo de atraso de min. ajustável
0
Máx. tempo de atraso de operação permitido
0
Min. tempo de atraso de operação ajustável
0
Operating voltage AC 50 Hz
230
230
Operating voltage AC 60 Hz
230
230
Operating voltage DC
-
-
Physical measurement principle
EV008243
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Brands
ABB
Descrição Longa
The CM-ENE MAX belongs to the CM liquid level monitoring relay range. It operates with a rated control supply voltage of 24 V AC and has a 1 n/o output contact. It monitors liquid levels of conductive fluids and protects tanks against overflow. The output relay works according to the closed-circuit principle. The sensitivity is 0-100 kOhm fixed. The device offers screw connection terminals.
