The CR-M012DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 12 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Industrial Relays

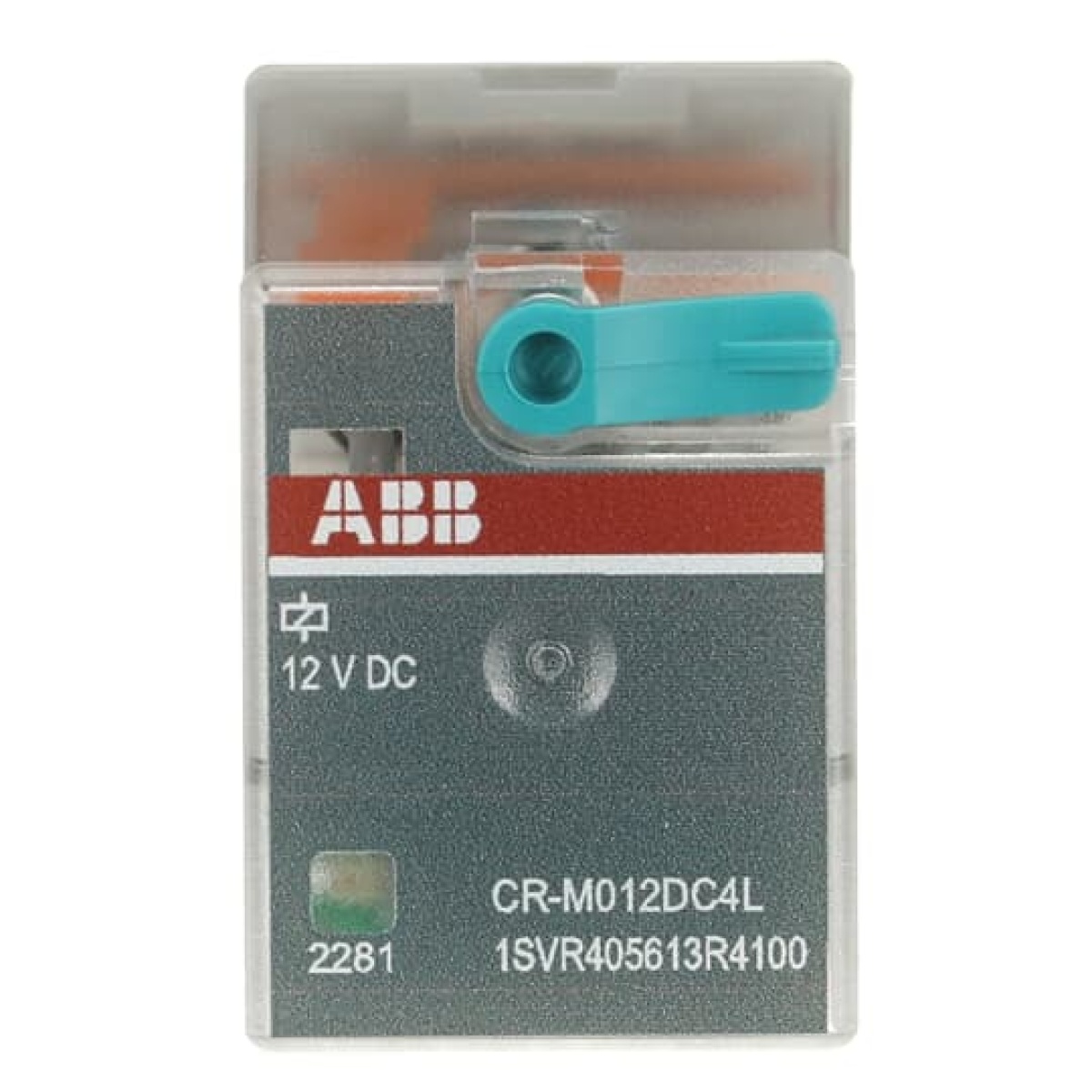

CR-M012DC4L Pluggable interface relay 4co, A1-A212VDC, 250V6A, LED
Nortécnica Ref:
EAN:
4013614497780
Description
Technical Information
Attributes
Corrente nominal
6
Largura
21.2
Altura
35.6
Profundidade
27.5
Corrente máxima de arranque
-
With detachable clamps
No
Drive polarization
Polarized
Drive switching attitude
Mono stable
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
No
Type of electric connection
Flat plug-in connection
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
12
12
Material of contact surface
Other
Voltage type operating voltage
AC/DC
Degree of protection IP
IP40
With LED indication
Yes
Material contact
Silver nickel (AgNi)
Operating voltage AC 50 Hz
250
250
Operating voltage AC 60 Hz
250
250
Operating voltage DC
-
-
Voltage type for actuating
DC
Número de contatos como contato normalmente fechado
0
Número de contatos como contato normalmente aberto
0
Número de contatos como inversores
4
Material of contact insert
-
Relay technology category according to IEC 61810-7
RT I
Brands
ABB
Descrição Longa
The CR-M012DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 12 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
