The CT-MFS.21P is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. Two control inputs work with volt-free (floating) triggering.The CT-MFS.21P offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay. The second of the c/o contacts can be selected as an instantaneous contact. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Industrial Relays

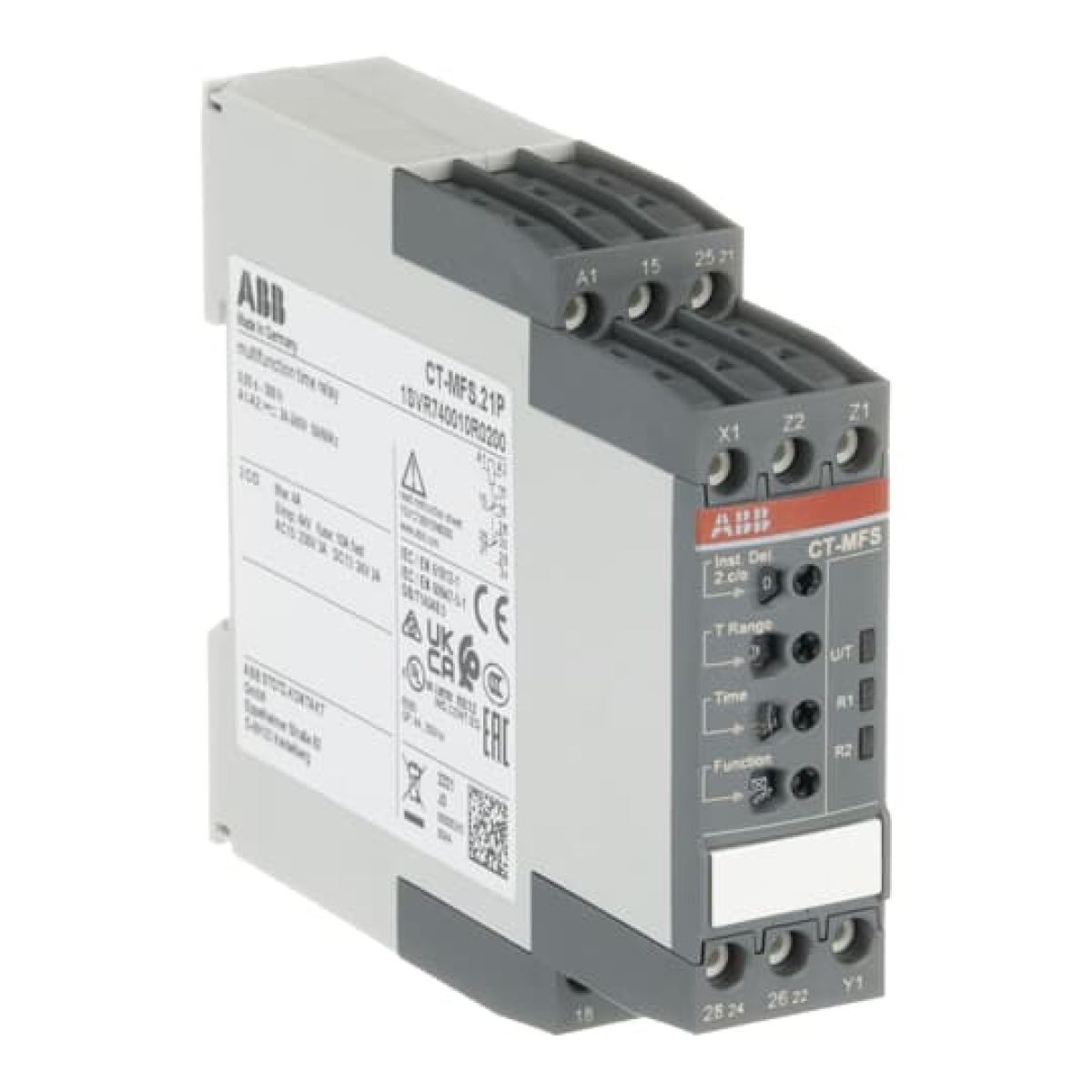

CT-MFS.21P Time relay, multifunction 2co, 24-240VACDC
Nortécnica Ref:
EAN:
4016779851572
Description
Technical Information
Attributes
Nominal current
4
Width
22.5
Height
85.6
Depth
103.7
Max. starting current
-
Complete with socket
No
Remote operation possible
Yes
Suitable as remote control
No
Function flashing, starting with pause, fixed time
No
Function flashing, starting with pulse, fixed time
No
Clock function, starting with pause, variable
No
Clock function, starting with pulse, variable
No
With semiconductor output
No
Function delay-on energization
Yes
Function floating contact on energization
Yes
Function star-delta
Yes
Time range
0.05
1080000
Function delay on de-energization
Yes
Function floating contact on de-energization
Yes
Function pulse shaping
No
Type of electric connection
Spring clamp connection
Rated control supply voltage AC 50 Hz
24
240
Rated control supply voltage AC 60 Hz
24
240
Rated control supply voltage DC
24
240
Material of contact surface
-
Voltage type operating voltage
AC/DC
Degree of protection IP
IP20
Number of outputs, undelayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
0
Number of outputs, undelayed, change-over contact
2
Number of outputs, delayed, normally closed contact
0
Number of outputs, delayed, normally open contact
0
Number of outputs, delayed, change-over contact
2
Pluggable on auxiliary contact block
No
Outputs, reversible delayedundelayed
Yes
Suitable for DIN rail top hat rail mounting
Yes
Material contact
-
Operating voltage AC 50 Hz
250
250
Operating voltage AC 60 Hz
250
250
Operating voltage DC
-
-
Voltage type for actuating
AC/DC
Material of contact insert
-
Relay technology category according to IEC 61810-7
-
Suitable for front mounting
No
