The RB121G-115VUC is a boxed interface relay with screw terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibration.This relay operates with a 115 V AC/DC rated control supply voltage and has a 1 c/o (SPDT) output with gold-plated contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
Industrial Relays

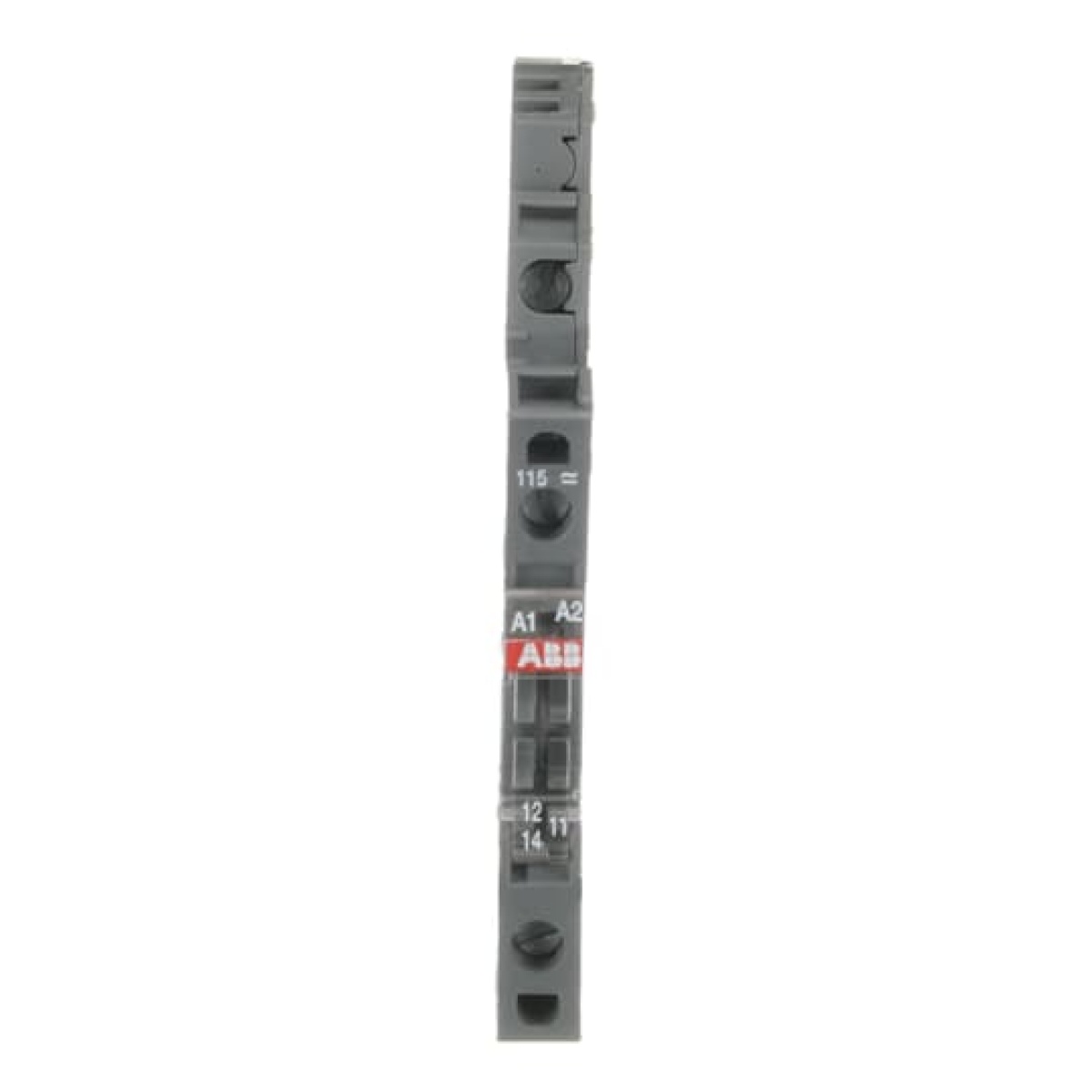

RB121G-115VUC Interface relay R600 1co,A1-A2115VACDC,5-250VAC10mA-6A
Nortécnica Ref:
EAN:
4013614507786
Description
Technical Information
Attributes
Nominal current
6
Width
6
Height
67.5
Depth
70
Max. starting current
-
With detachable clamps
No
Drive, polarization
Polarized
Drive, switching attitude
Mono stable
With forced-guided contacts
No
Type of switch contact
Single contact
Complete with socket
Yes
Type of electric connection
Screw connection
Rated control supply voltage AC 50 Hz
115
115
Rated control supply voltage AC 60 Hz
115
115
Rated control supply voltage DC
115
115
Material of contact surface
Other
Voltage type operating voltage
AC/DC
Degree of protection IP
IP20
With LED indication
Yes
Material contact
Silver tin oxide (AgSnO2)
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Operating voltage DC
-
-
Voltage type for actuating
AC/DC
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Material of contact insert
-
Relay technology category according to IEC 61810-7
RT I
Brands
ABB
Long Description
The RB121G-115VUC is a boxed interface relay with screw terminals, which can be seemlessly snap-on mounted onto a DIN Rail. The relay is soldered into device housing, ensuring a high resistance against vibration.This relay operates with a 115 V AC/DC rated control supply voltage and has a 1 c/o (SPDT) output with gold-plated contacts rated at 250 V / 6 A. This 6mm wide boxed interface relay may be used for electrical isolation, amplification and signal matching and enables the switching of high currents on a small footprint. It has an integrated LED, which provides the visual indication of the energization of the relay coil and UL 94-V0 certified device housing, improving safety by providing high levels flame retardation. Jumper bars are available as accessories.
