Sentry BSR10P Safety relay and expansion relay with relay outputs 3NO+1NC, +24 VDC supply voltage and push-in spring terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as expansion relay for a safety relay/ safety PLC, in order to increase the number of safe outputs. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Industrial Relays

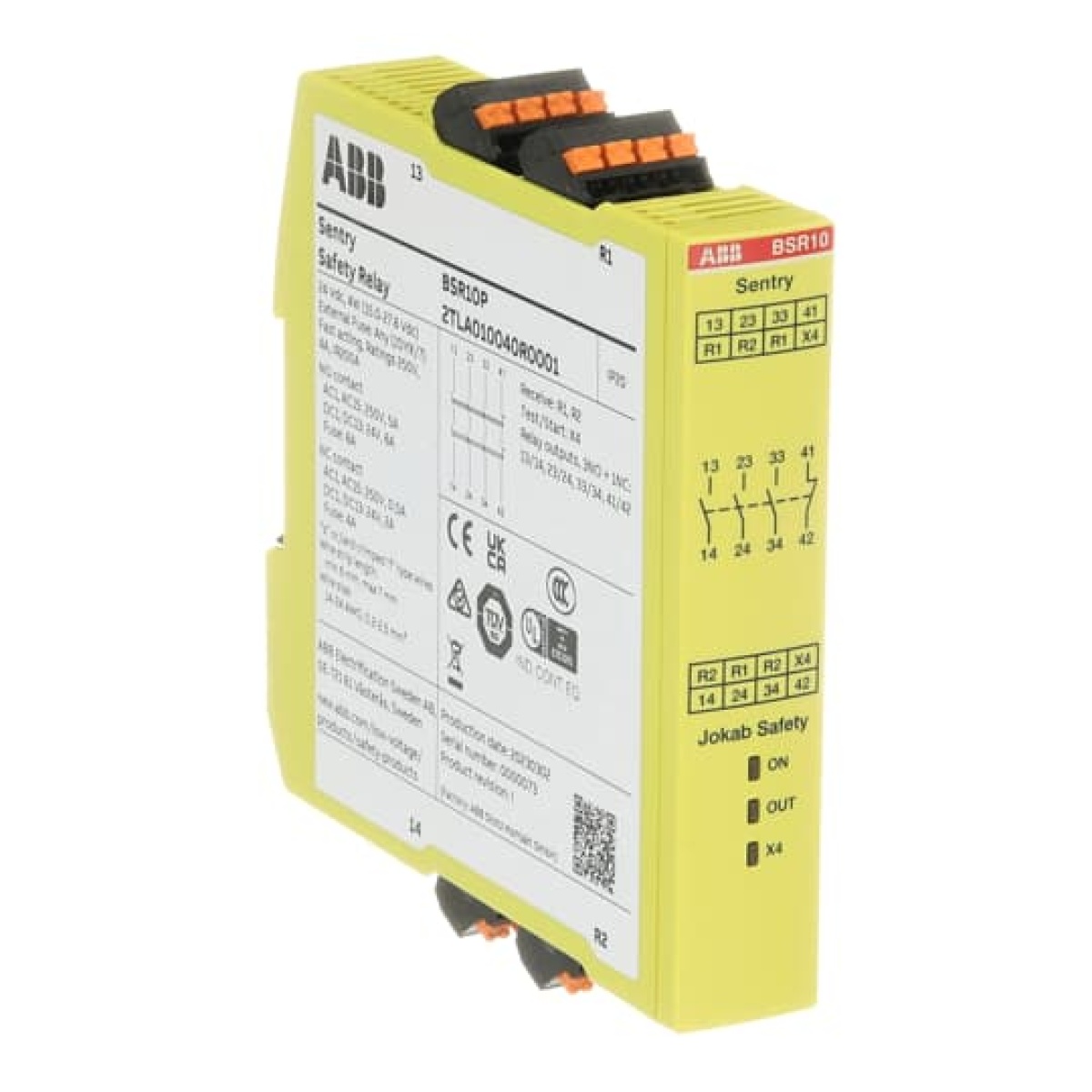

Sentry BSR10P Safety relay
Nortécnica Ref:
EAN:
7350024483888
Description
Technical Information
Attributes
Width
22.5
Model
Expansion device
Height
120
Depth
120
Power consumption
2
Release-delay
20
20
With approval according to UL
Yes
Control voltage 1
24
24
Control voltage 2
24
24
Type of control voltage 1
DC
Type of control voltage 2
DC
Voltage type supply voltage
DC
With detachable clamps
Yes
With start input
Yes
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
4
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Type of electric connection
Plug-in connection
Suitable for rail mounting
Yes
With muting function
No
Type of safety according to IEC 614961
None
With approval for BG BIA
No
Voltage type operating voltage
DC
Rated switch current
5
Suitable for monitoring of magnetic switches
Yes
Suitable for monitoring of proximity switches
Yes
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of optoelectronic protection equipment
No
Suitable for monitoring of position switches
Yes
Suitable for monitoring of tactile sensors
No
Suitable for monitoring of valves
Yes
Performance level according to EN ISO 138491
Level e
Stop category according to IEC 60204
0
Supply voltage AC 50 Hz
-
-
Supply voltage AC 60 Hz
-
-
Supply voltage DC
-
-
Operating voltage AC 50 Hz
-
-
Operating voltage AC 60 Hz
-
-
Operating voltage DC
24
24
Evaluation inputs
One- and two-channel
SIL according to IEC 61508
3
Brands
ABB
Long Description
Sentry BSR10P Safety relay and expansion relay with relay outputs 3NO+1NC, +24 VDC supply voltage and push-in spring terminals.
For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay.
Also suitable as expansion relay for a safety relay/ safety PLC, in order to increase the number of safe outputs.
Sentry safety relays cover various types of safety applications up to PLe / SIL3.
Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility.
Models with display offer preset configurations and extensive information to further simplify troubleshooting.
Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s.
High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button.
All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
