Sentry SSR20P Safety relay with relay outputs 3NO+1NC, +24 VDC supply voltage and push-in spring terminals. For monitoring of two-hand devices. Manual or automatic reset selectable by switch on front. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Industrial Relays

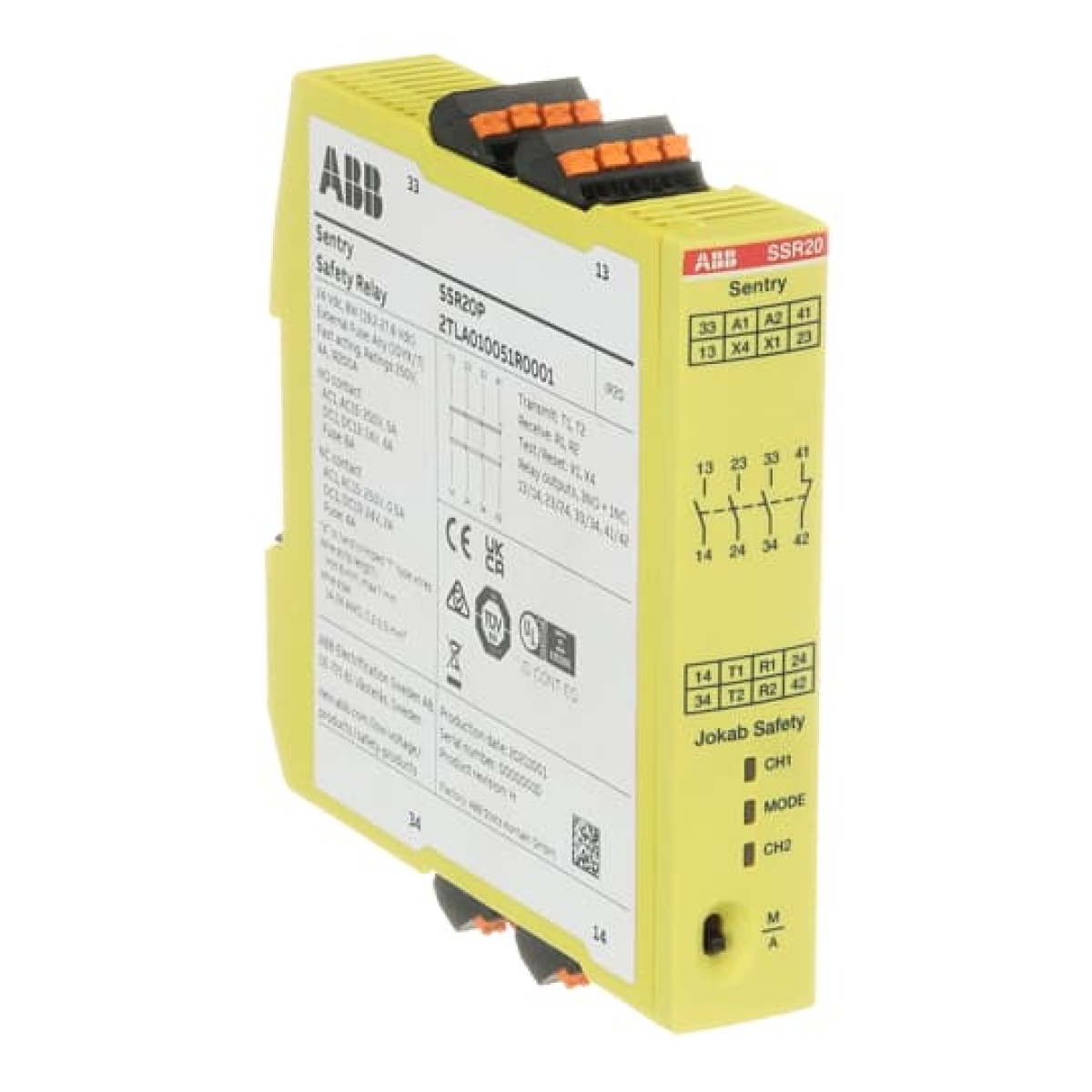

Sentry SSR20P Safety relay
Nortécnica Ref:
EAN:
7350024486278
Description
Technical Information
Attributes
Width
22.5
Height
120
Depth
120
Suitable for safety functions
Yes
With approval according to UL
Yes
Control voltage 1
-
-
Control voltage 2
-
-
Type of control voltage 1
-
Type of control voltage 2
-
Voltage type supply voltage
DC
With detachable clamps
Yes
With start input
Yes
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
3
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Type class for safety demands according to EN 574
Type III C
Type of electric connection
Plug-in connection
Suitable for rail mounting
Yes
With approval for BG BIA
No
Voltage type operating voltage
DC
Rated switch current
6
Type of switch function of the inputs
Normally open contact (NO)
Performance level according to EN ISO 138491
Level e
Supply voltage AC 50 Hz
24
24
Supply voltage AC 60 Hz
24
24
Supply voltage DC
24
24
Operating voltage AC 50 Hz
24
24
Operating voltage AC 60 Hz
24
24
Operating voltage DC
24
24
SIL according to IEC 61508
3
Brands
ABB
Descrição Longa
Sentry SSR20P Safety relay with relay outputs 3NO+1NC, +24 VDC supply voltage and push-in spring terminals.
For monitoring of two-hand devices.
Manual or automatic reset selectable by switch on front.
Sentry safety relays cover various types of safety applications up to PLe / SIL3.
Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility.
Models with display offer preset configurations and extensive information to further simplify troubleshooting.
Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s.
High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button.
All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
