BED75 is a connection set used to easily connect the main poles of the Star, Delta, Line A50-A75-A75 3-pole contactors of a star-delta starter. BED75 connection set is defined for a mechanically interlocking of star and delta contactors. It is made up of: • Line contactor / delta contactor: upstream connection in parallel • Delta contactor / star contactor: downstream connection in parallel • Star contactor: star point upstream • Solid copper bars and insulated stranded copper wires.
Speed Variation and Motor Starting
BED75 Connection Set
Nortécnica Ref:
EAN:
3471522121790
Description
Technical Information
Attributes
Type of accessoryspare part
-
Accessory
-
Spare part
-
Brands
ABB
Long Description

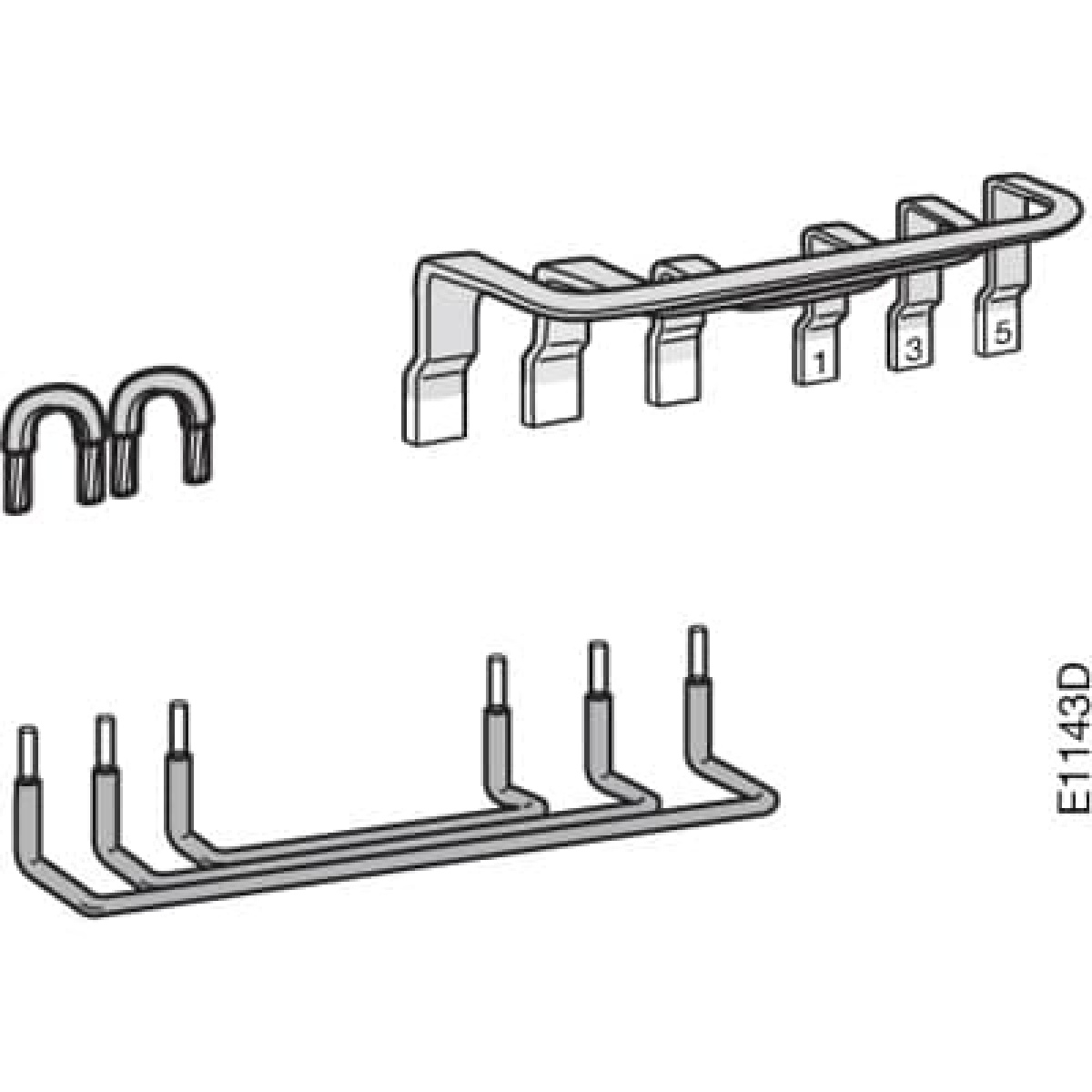

BED75 is a connection set used to easily connect the main poles of the Star, Delta, Line A50-A75-A75 3-pole contactors of a star-delta starter.
BED75 connection set is defined for a mechanically interlocking of star and delta contactors. It is made up of:
• Line contactor / delta contactor: upstream connection in parallel
• Delta contactor / star contactor: downstream connection in parallel
• Star contactor: star point upstream
• Solid copper bars and insulated stranded copper wires.
