The softstarter PSR30-600-70 has a rated maximum operational current of 30 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.
Speed Variation and Motor Starting

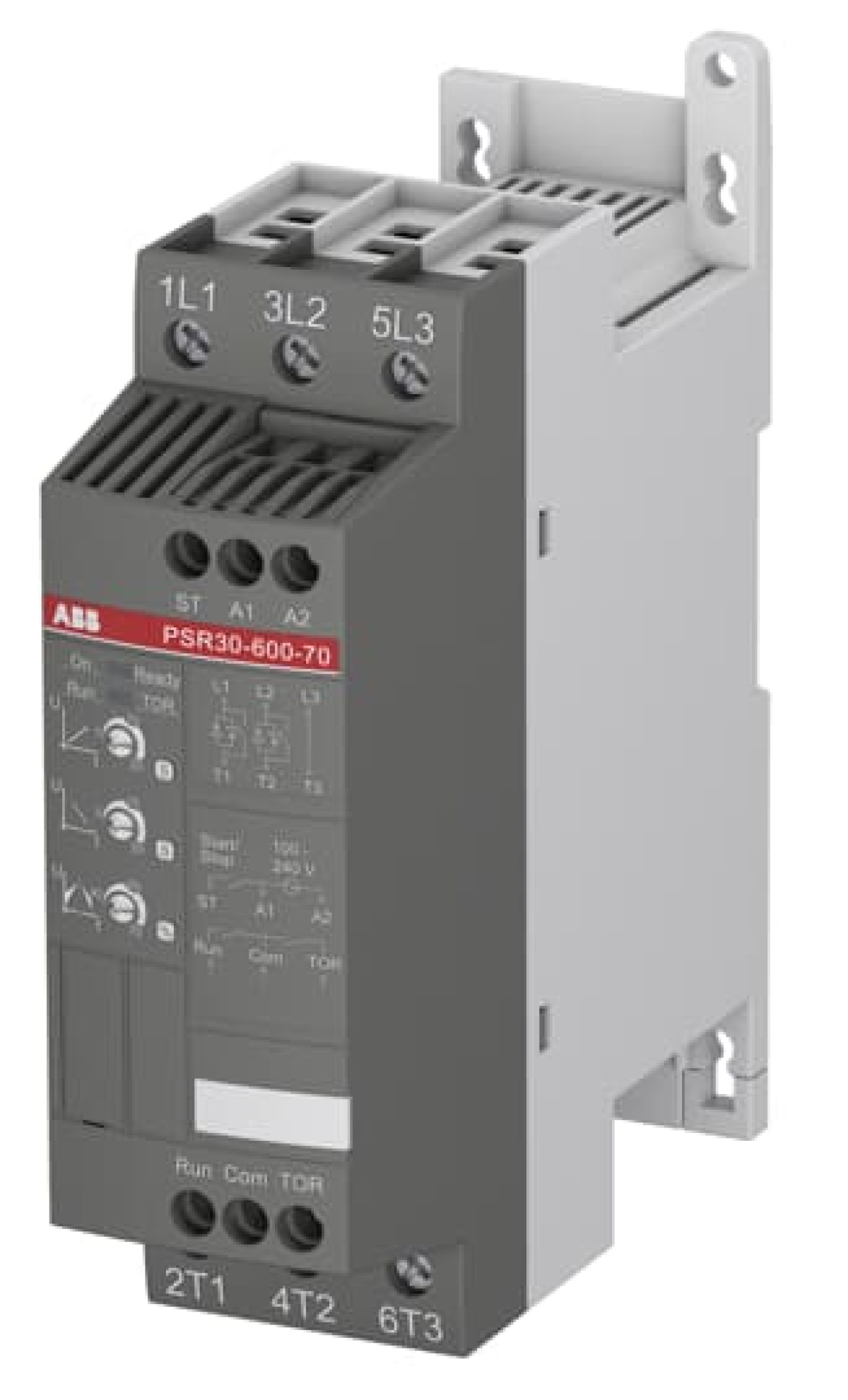

PSR30-600-70 Softstarter - 30 A - 208 ... 600 V AC
Nortécnica Ref:
2712896109R7000
EAN:
7320500338308
Description
Technical Information
Attributes
Function
-
With display
-
Rated operating voltage Ue
-
-
Rated control supply voltage AC 50 Hz
-
-
Rated control supply voltage AC 60 Hz
-
-
Rated control supply voltage DC
-
-
Degree of protection IP
-
Release class
-
Rated operation current Ie at 40 C Tu
-
Rated power three-phase motor, inline, at 230 V
-
Rated power three-phase motor, inline, at 400 V
-
Rated power three-phase motor, inside delta, at 230 V
-
Rated power three-phase motor, inside delta, at 400 V
-
Rated surrounding temperature without derating
-
Integrated motor overload protection
-
Voltage type for actuating
-
Internal bypass
-
Torque control
-
Degree of protection NEMA
-
Brands
ABB
Descrição Longa
The softstarter PSR30-600-70 has a rated maximum operational current of 30 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.
