The EF19-2.7 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory. The EF19 and EF45 have ATEX and IECEx certification 1) 1) ATEX is valid for products produced from week 42, 2014. IECEx is valid for products produced from week 15, 2017.
Contactors, Motor Circuit Breakers and Accessories

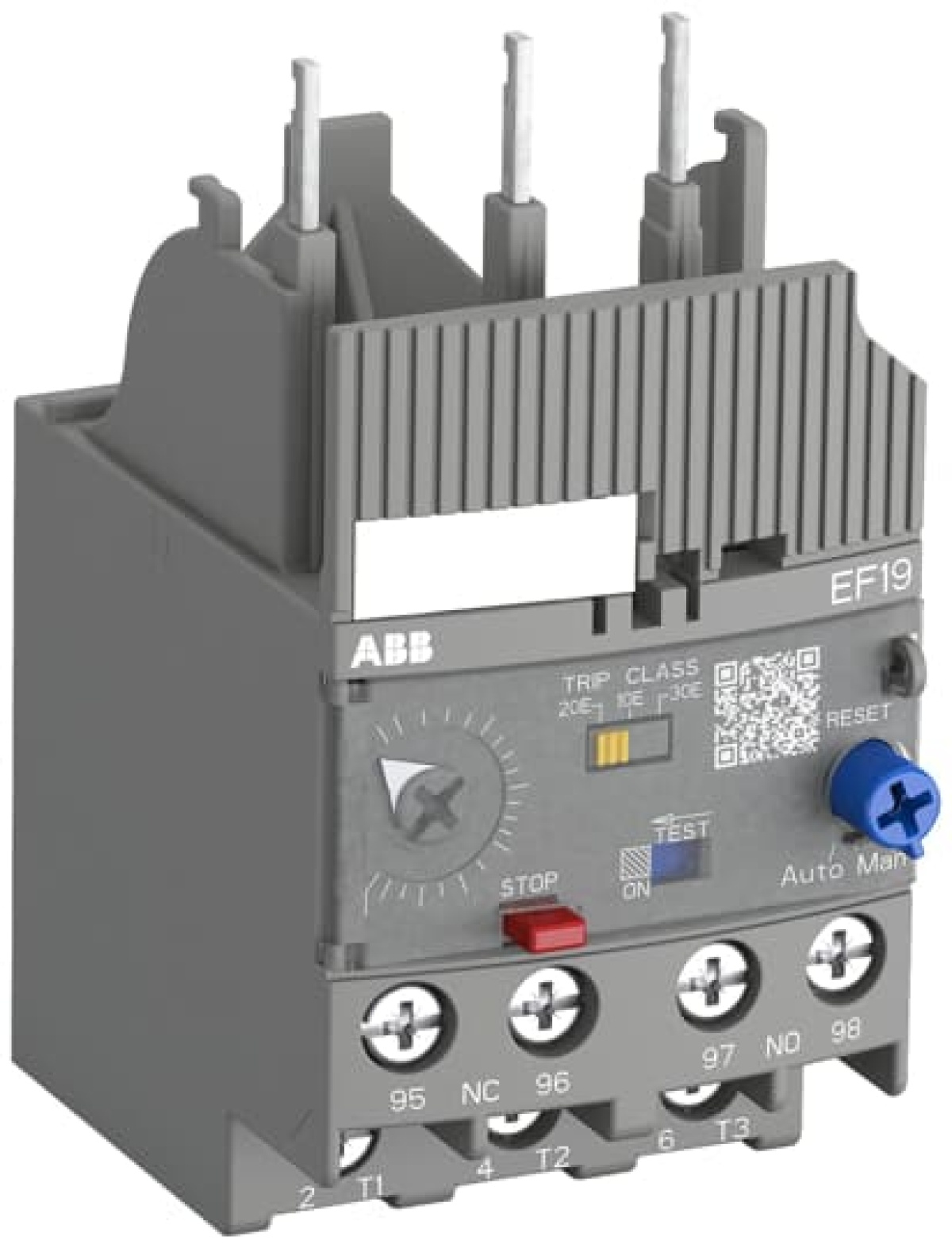

EF19-2.7 Electronic Overload Relay 0.80 ... 2.7 A
Nortécnica Ref:
EAN:
4013614404009
Description
Technical Information
Attributes
Mounting method
Direct attachment
Width
44.4
Height
85
Depth
59.3
Número de contatos auxiliares como contato normalmente aberto
1
Número de contatos auxiliares como contato normalmente fechado
1
External power supply required
No
Número de contatos auxiliares como contato de comutação
0
Rated control supply voltage AC 50 Hz
0
0
Rated control supply voltage AC 60 Hz
0
0
Rated control supply voltage DC
0
0
Voltage type operating voltage
AC
Release class
Adjustable
Rated switch current
2.7
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
690
690
Operating voltage AC 60 Hz
690
690
Operating voltage DC
690
690
Adjustable current range
0.80
2.7
Voltage type for actuating
-
Reset function input
No
Reset function automatic
Yes
Reset function push-button
Yes
Brands
ABB
Descrição Longa
The EF19-2.7 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. Single mounting kits are available as accessory. The EF19 and EF45 have ATEX and IECEx certification 1)
1) ATEX is valid for products produced from week 42, 2014.
IECEx is valid for products produced from week 15, 2017.
