The EF750-800 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. EF750 has ATEX and IECEx certification 1) 1) ATEX is valid for products produced from week 42, 2014. IECEx is valid for products produced from week 15, 2017.
Contactors, Motor Circuit Breakers and Accessories

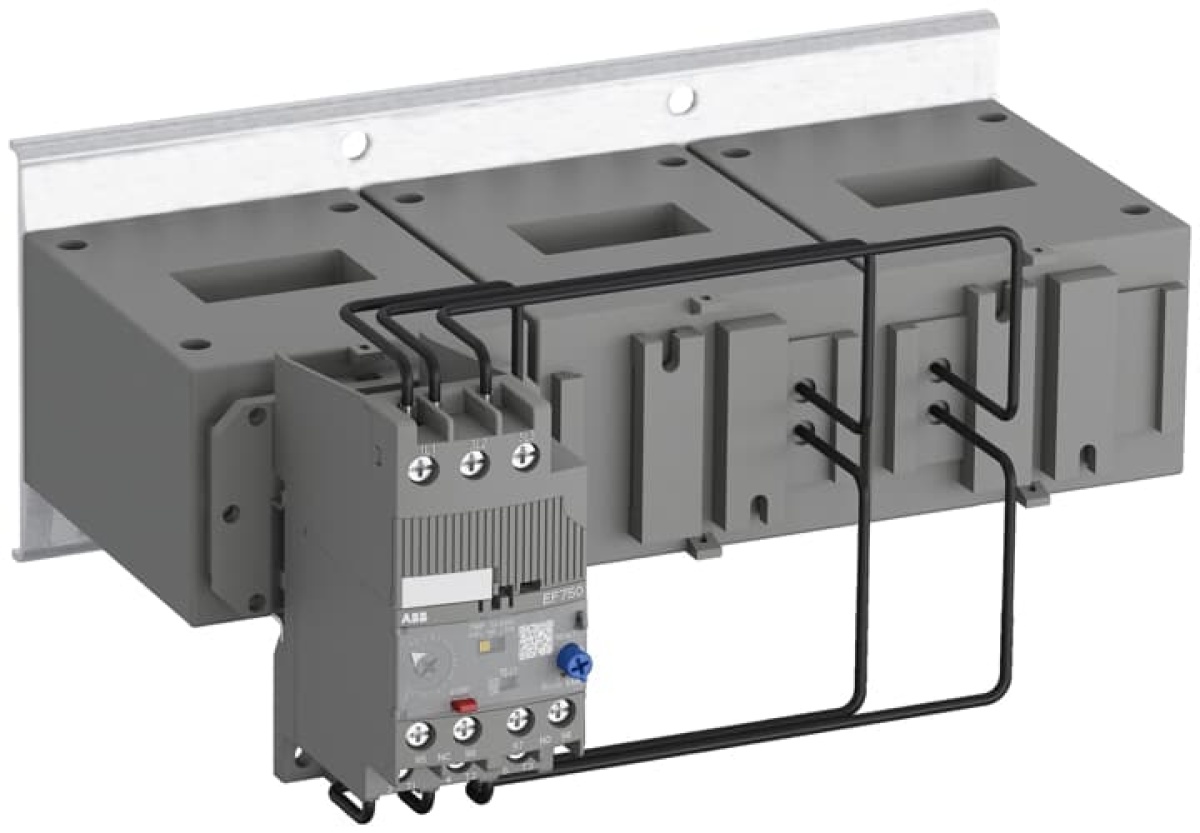

EF750-800 Electronic Overload Relay 250 ... 800 A
Nortécnica Ref:
EAN:
4013614487422
Description
Technical Information
Attributes
Mounting method
Direct attachment/single positioning
Width
244
Height
111.6
Depth
187.73
Número de contatos auxiliares como contato normalmente aberto
1
Número de contatos auxiliares como contato normalmente fechado
1
External power supply required
No
Número de contatos auxiliares como contato de comutação
0
Rated control supply voltage AC 50 Hz
0
0
Rated control supply voltage AC 60 Hz
0
0
Rated control supply voltage DC
0
0
Voltage type operating voltage
AC
Release class
Adjustable
Rated switch current
800
Type of electrical connection of main circuit
Screw connection
Operating voltage AC 50 Hz
1000
1000
Operating voltage AC 60 Hz
1000
1000
Operating voltage DC
1000
1000
Adjustable current range
250
800
Voltage type for actuating
-
Reset function input
No
Reset function automatic
Yes
Reset function push-button
Yes
Brands
ABB
Descrição Longa
The EF750-800 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. EF750 has ATEX and IECEx certification 1)
1) ATEX is valid for products produced from week 42, 2014.
IECEx is valid for products produced from week 15, 2017.
