Magne 4 DYN-2Info is an electromagnetic lock providing safe interlocking thanks to an integrated ADAM DYN-Info. Its M12-8 male connector facilitates connexion. A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. Separate "Locked" and "Closed" information outputs are available The Eva actuactor and the anchor plate must be ordered separately. Magne is an electromagnetic process lock intended for locking doors and hatches. It is usually used to prevent unwanted process interruptions, e.g. during a welding operation. With Adam and Eva, a PLe can be reached for the interlocking function.
Alarm Systems, Emergency Calls and Signaling

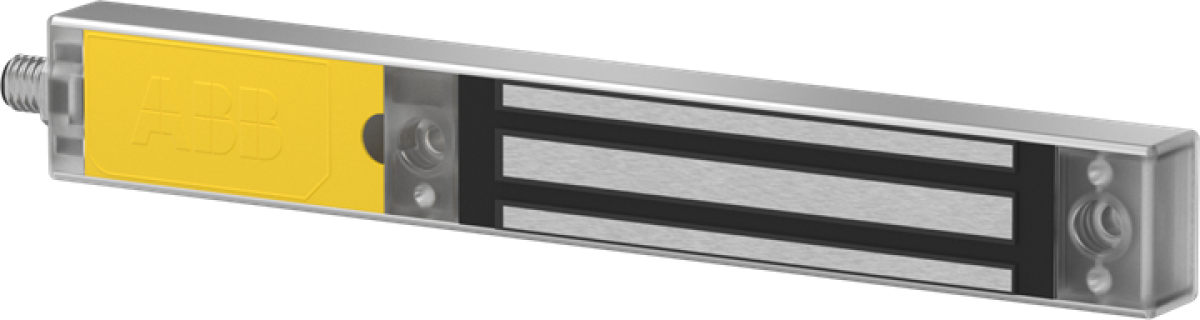

Magne 4 DYN-2Info Lock
Nortécnica Ref:
EAN:
7350024484564
Description
Technical Information
Attributes
Mounting method
Surface mounting
Largura
35
Altura
274
Voltage type
DC
Power consumption
9
Suitable for wall mounting
Yes
Construction type
Angular
Housing material
Other
Operating voltage
24
24
Explosion-proof
No
Gripping force
1500
1500
With anchor plate
No
Wall distance
30
30
Performance level according to EN ISO 138491
Level e
SIL according to EN 62061
3
Suitable for ceiling mounting
No
Suitable for floor mounting
No
Brands
ABB
Descrição Longa
Magne 4 DYN-2Info is an electromagnetic lock providing safe interlocking thanks to an integrated ADAM DYN-Info. Its M12-8 male connector facilitates connexion. A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. Separate "Locked" and "Closed" information outputs are available
The Eva actuactor and the anchor plate must be ordered separately.
Magne is an electromagnetic process lock intended for locking doors and hatches. It is usually used to prevent unwanted process interruptions, e.g. during a welding operation. With Adam and Eva, a PLe can be reached for the interlocking function.
