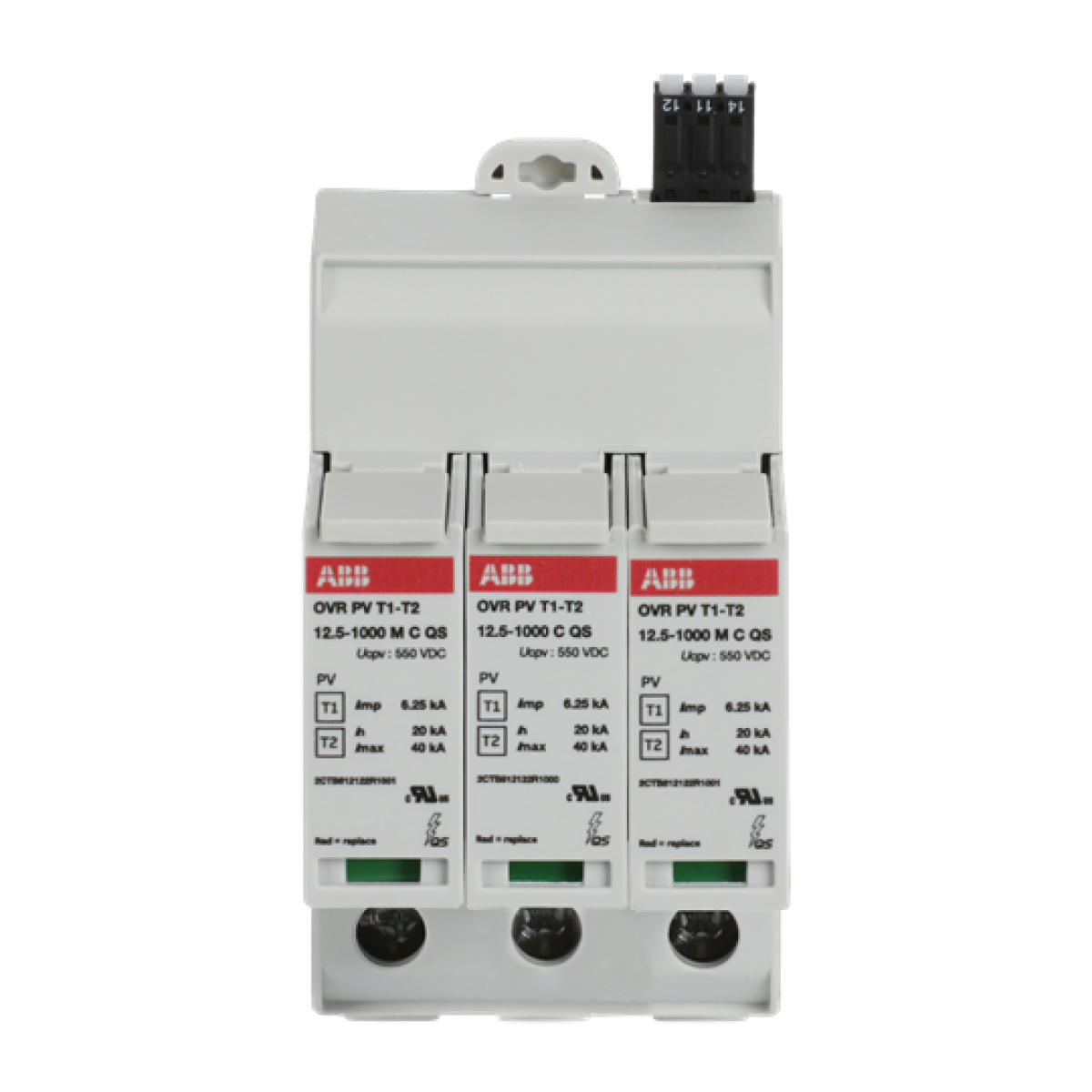

OVR PV T1-T2 12.5-1000 P TS QS Surge Protective Device
Surge Arresters
OVR PV T1-T2 12.5-1000 P TS QS Surge Protective Device
Nortécnica Ref:
272CTB812121R1000
EAN:
4053546034677
Description
Technical Information
Attributes
Mounting method
Other
With remote signalling contact
Yes
Number of conductors without earthing
2
Construction size
3 modular spacing
Nível de proteção de tensão
3.8
Tensão máxima contínua AC
1100
Corrente de descarga nominal 820
20
Tensão nominal CA
-
Tensão nominal DC
1000
Category type 2
Yes
Nível de proteção L-N
-
Signalling at the device
Optical
Máxima tensão DC contínua
1000
Degree of protection IP
IP20
Tensão fotovoltaica máx.
1000
Nível de proteção de tensão N-PE
-
Integrated backup fuse
No
Secção do condutor rígido máx. monomulti filamento
35
Secção flexível do condutor máx. fio fino
25
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
System configuration TN-C-S
No
Corrente de choque de descarga máxima 820
20
Resistência a curto-circuito Isccr
11
Proteção de sobreintensidade máx. Ligação em paralelo fusível
10
Proteção de sobreintensidade máx. Ligação em série fusível
-
Integrated short-circuit protection
No
Proteção contra curto-circuitos seletiva integrada - por fusível gG
-
Leakage-current free
No
Brands
ABB
Descrição Longa
OVR PV T1-T2 12.5-1000 P TS QS Surge Protective Device
